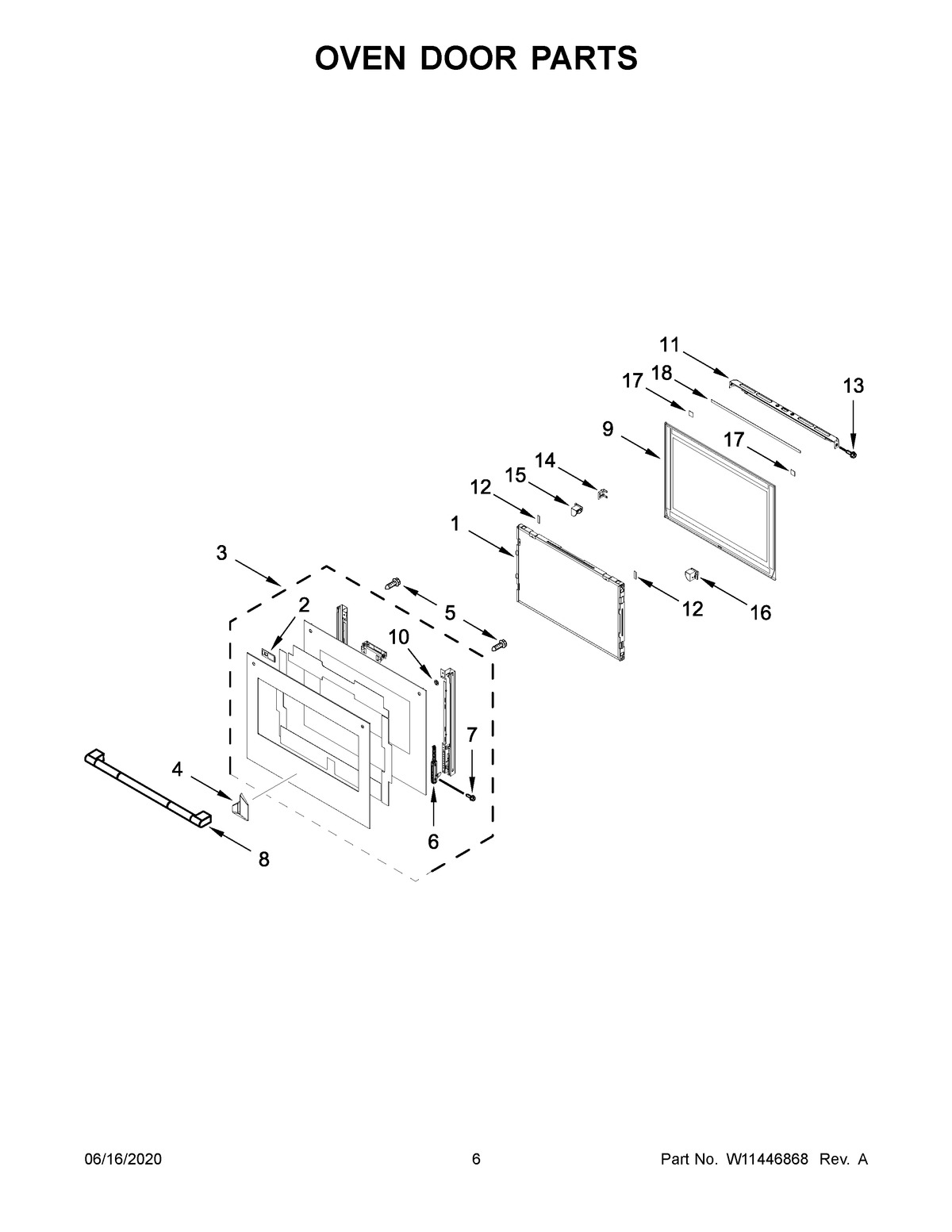

JMW3430IL03 04 – OVEN DOOR PARTS

JMW3430IL03 04 – OVEN DOOR PARTS

Written by

in

JMW3430IL03 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	SPACER, HANDLE
3	ASSEMBLY, DOOR (STAINLESS)
4	NAMEPLATE (STAINLESS)
5	SCREW
6	HINGE, DOOR
7	SCREW
8	ASSEMBLY, HANDLE (STAINLESS)
9	ASSEMBLY, GLASS CAVITY
10	WASHER, DOOR
11	VENT, TOP METAL
12	SPACER
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (LEFT)
16	BRACKET, DOOR (RIGHT)
17	SPACER, VENT
18	PAD, VENT
