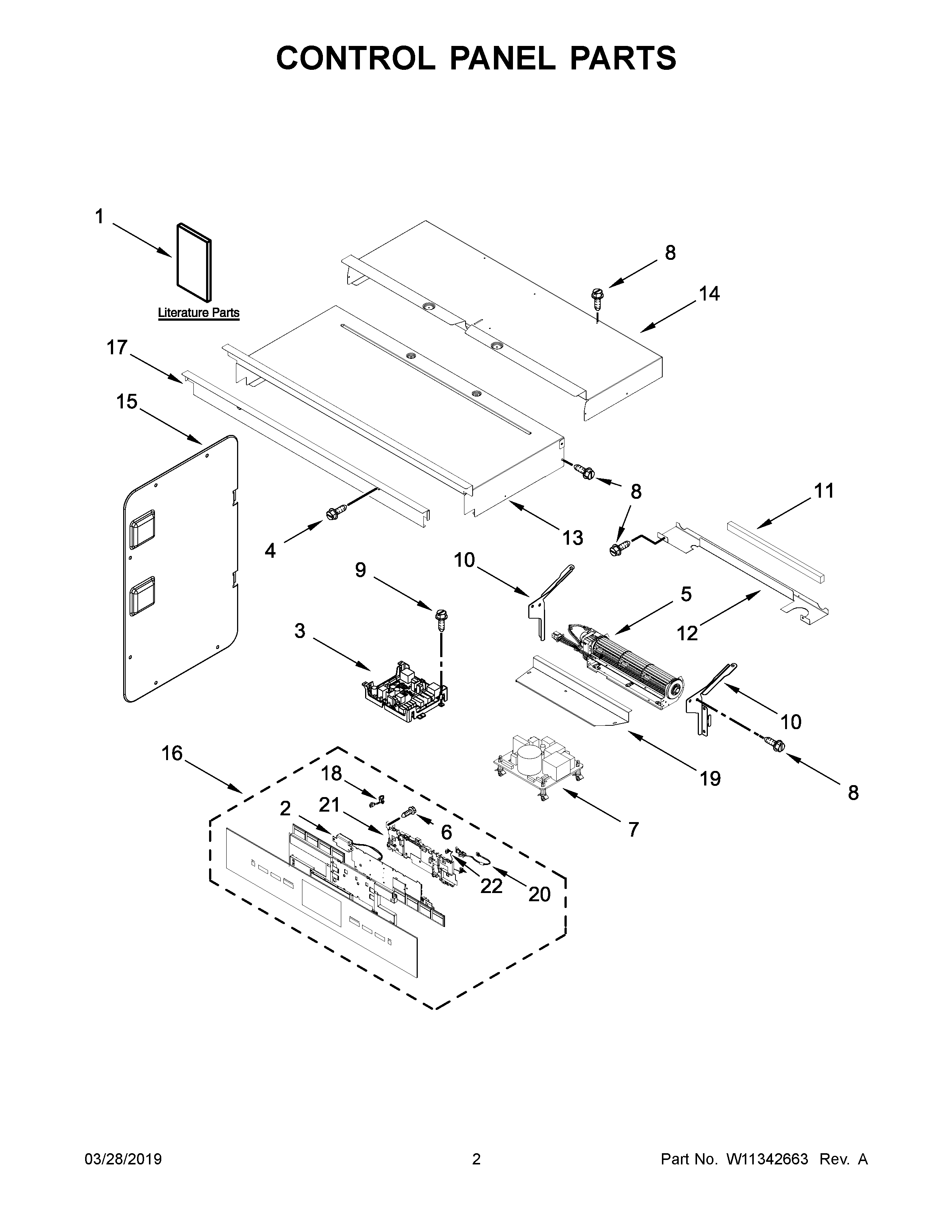

JMW3430IM00 02 – CONTROL PANEL PARTSadmin2025-04-26T09:41:33+00:00JMW3430IM00 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | TIE, CABLE |
| NI | HARNESS, INVERTER |
| NI | HARNESS, DOOR LATCH |
| NI | STRAP, GROUND |
| NI | HARNESS, FAN & TURNTABLE |
| NI | HARNESS, CABLE TREE ASSEMBLY |
| NI | MAY W11216660 |
| NI | MAY W11218145 |
| NI | HARNESS, MAIN |
| NI | JUMPER HARNESS, COMMUNICATION |
| NI | MAY 4450800 |
| NI | CLAMP, CONDUIT |
| NI | ASSEMBLY, ANTENNA & HOUSING |
| 1D | SHEET, TECH (FRENCH) |
| 1F | DIAGRAM, WIRING |
| 1C | SHEET, TECH (OVEN/MICRO COMBO) |
| 1A | MAY W11235344 |
| 1B | INSTRUCTIONS, INSTALLATION |
| 1E | GUIDE, INTERNET CONNECTIVITY |
| 1 | GUIDE, USE & CARE (OVEN) |
| 2 | ASSEMBLY, SPEAKER |
| 3 | MAY W11281213 |
| 4 | Screw (2) (Black) |
| 5 | BLOWER |
| 6 | MAY W10489172 |
| 7 | BOARD, POWER SUPPLY |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 7101P434-60 |
| 10 | BRACKET, BLOWER (LEFT) |
| 10A | BRACKET, BLOWER (RIGHT) |
| 11 | BLOCK, FOAM |
| 12 | CHASSIS, BACK DIVIDER |
| 13 | CHASSIS, COVER TOP FRONT 30" |
| 14 | CHASSIS, COVER TOP BACK 30" |
| 15 | CHASSIS, COMBO SIDE |
| 16 | MAY W11199502 |
| 17 | COVER, 30" COMPLIMENT |
| 18 | HARNESS, KEYPAD (LEFT TO CENTER) |
| 19 | COVER, COMBO BLOWER |
| 20 | JUMPER HARNESS, POWER SUPPLY |
| 21 | HOUSING |
| 22 | HARNESS, KEYPAD (RIGHT TO CENTER) |
