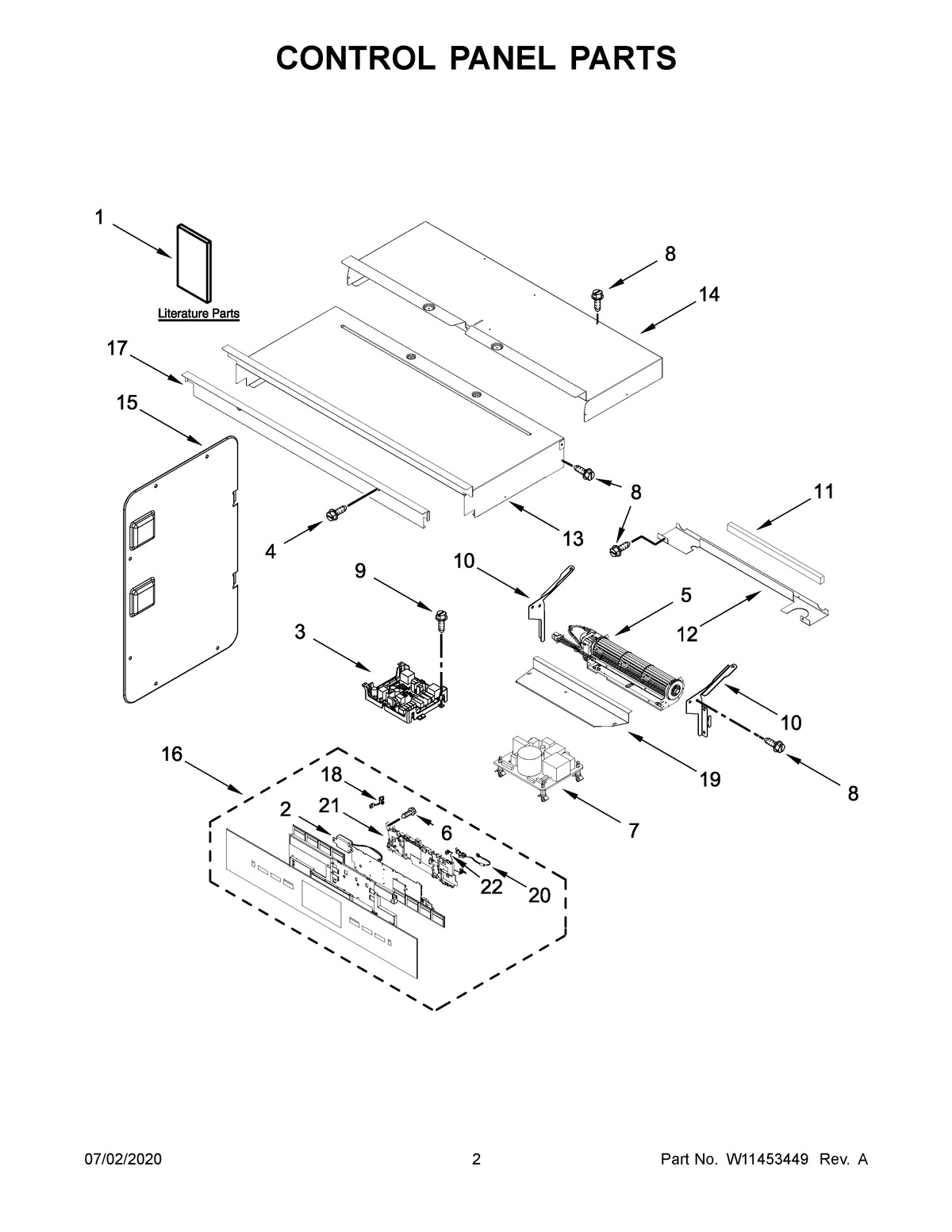

JMW3430IM03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W11218145
NIMAY W11216660
NIHARNESS, INVERTER
NIHARNESS, MAIN
NICLAMP, CONDUIT
NITIE, CABLE
NIJUMPER HARNESS, COMMUNICATION
NIASSEMBLY, ANTENNA & HOUSING
NIHARNESS, CABLE TREE ASSEMBLY
NISTRAP, GROUND
NIHARNESS, FAN AND TURNTABLE
NIMAY 4450800
NIHARNESS, DOOR LATCH
1CSHEET, TECH (OVEN/MICRO COMBO)
1GUIDE, USE & CARE (OVEN)
1AMAY W11235344
1EGUIDE, INTERNET CONNECTIVITY
1FDIAGRAM, WIRING
1DSHEET, TECH (FRENCH)
1BINSTRUCTIONS, INSTALLATION
2ASSEMBLY, SPEAKER
3APPLIANCE MANAGER, COPERNICUS
4Screw (2) (Black)
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP FRONT 30"
14CHASSIS, COVER TOP BACK 30"
15CHASSIS, COMBO SIDE
16MAY W11429017
17COVER, 30" COMPLIMENT
18HARNESS, KEYPAD (LEFT TO CENTER)
19COVER, COMBO BLOWER
20JUMPER HARNESS, POWER SUPPLY
21HOUSING
22HARNESS, KEYPAD (RIGHT TO CENTER)
