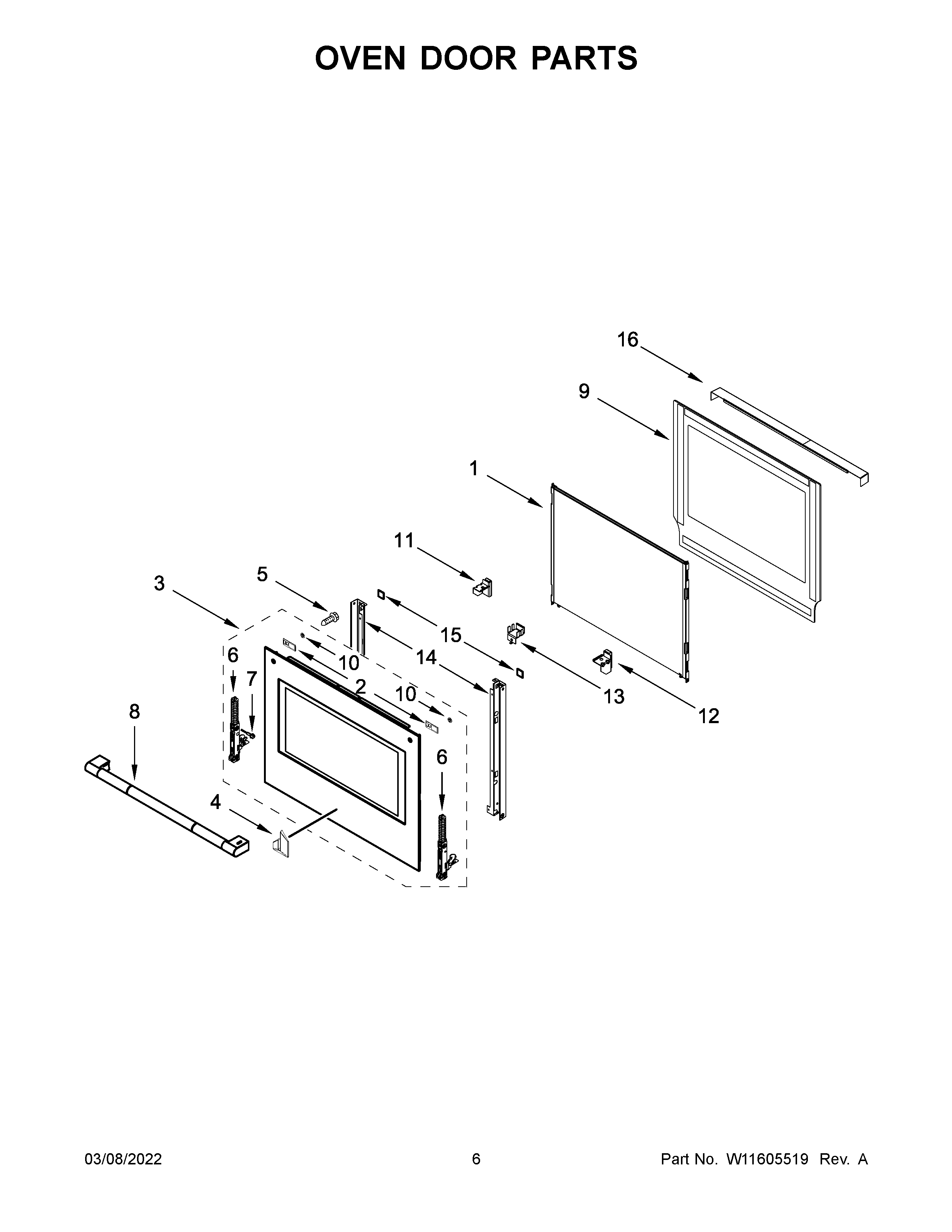

JMW3430LL00 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11600213 Whirlpool Oven Door Glass
2	W10650497 Whirlpool Spacer
3	W11602609 Whirlpool Door Glass Assembly
4	W11320231 Whirlpool Dishwasher Nameplate
5	W11602624 Whirlpool Oven Screw
6A	W11111222 Whirlpool Oven Door Hinge
6	W11111221 Whirlpool Oven Door Hinge
7	WP3196183 Whirlpool Screw
8	W11342060 Whirlpool Door Handle
9	W11602610 Whirlpool Oven Glass Door
10	W11676355 Whirlpool Washer
11	W11598130 Whirlpool Oven Support Bracket
12	W11598128 Whirlpool Oven Support Bracket
13	W11598131 Whirlpool Oven Clip
14A	W11598127 Whirlpool Support Bracket
14	W11598126 Whirlpool Support Bracket
15	WPW10517428 Whirlpool Spacer
16	TRIM-VENT
