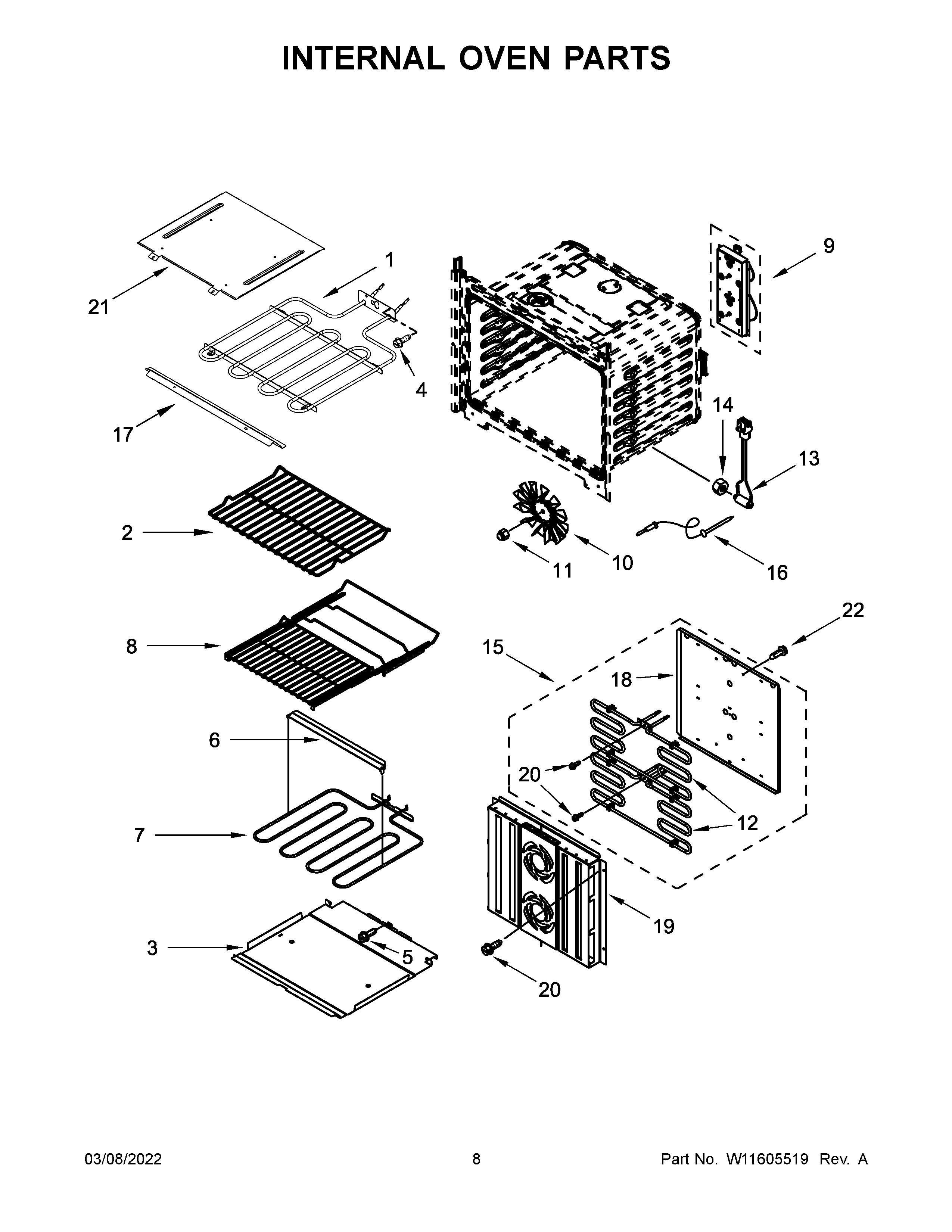

JMW3430LL00 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	W11242906 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11256305 Whirlpool Oven Rack
9	W11255349 Whirlpool Fan Motor
10	W11301887 Whirlpool Convection Fan
11A	NUT
11	W11548755 Whirlpool Nut
12	W10663735 Whirlpool Element
13	W11252826 Whirlpool Probe Jack
14	W11231343 Whirlpool Lock Nut
15	W11098805 Whirlpool Element
16	WP9755542 Whirlpool Oven Meat Probe
17	SHIELD-HT
18	SHIELD
19	W11313747 Whirlpool Convention Baffle
20	WP489464 Whirlpool Refrigerator Screw
21	TOP-CABNT
22	SCREW
