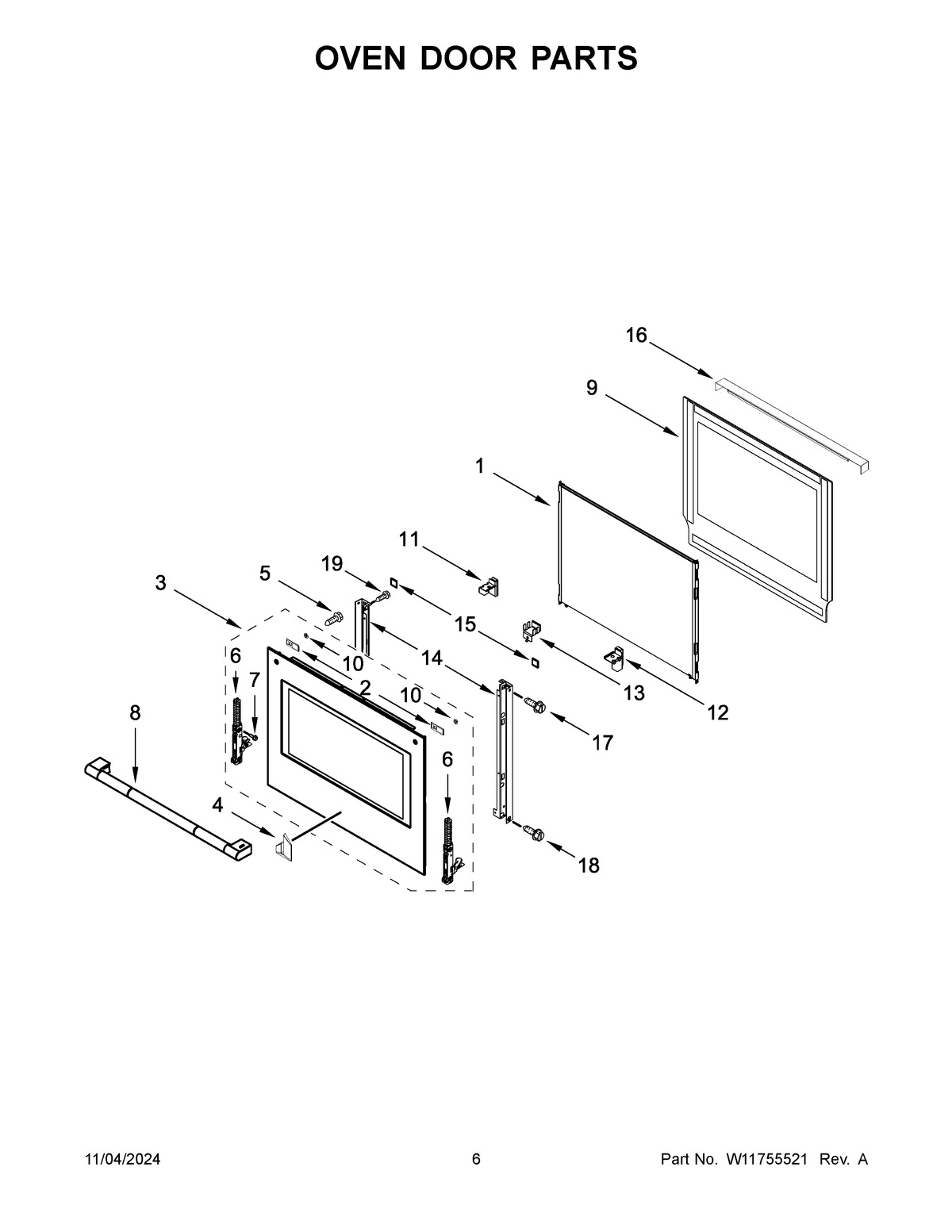

JMW3430LL04 04 – OVEN DOOR PARTS

JMW3430LL04 04 – OVEN DOOR PARTS

Written by

in

JMW3430LL04 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11600213 Whirlpool Oven Door Glass
2W10650497 Whirlpool Spacer
3W11602609 Whirlpool Door Glass Assembly
4W11320231 Whirlpool Dishwasher Nameplate
5W11602624 Whirlpool Oven Screw
6AW11111222 Whirlpool Oven Door Hinge
6W11111221 Whirlpool Oven Door Hinge
7WP3196183 Whirlpool Screw
8W11342060 Whirlpool Door Handle
9W11602610 Whirlpool Oven Glass Door
10W11676355 Whirlpool Washer
11W11598130 Whirlpool Oven Support Bracket
12W11598128 Whirlpool Oven Support Bracket
13W11598131 Whirlpool Oven Clip
14AW11598127 Whirlpool Support Bracket
14W11598126 Whirlpool Support Bracket
15WPW10517428 Whirlpool Spacer
16TRIM-VENT
17WP694091 Whirlpool Screw
18W11617225 Whirlpool Oven Screw
19W10443110 Whirlpool Screw
