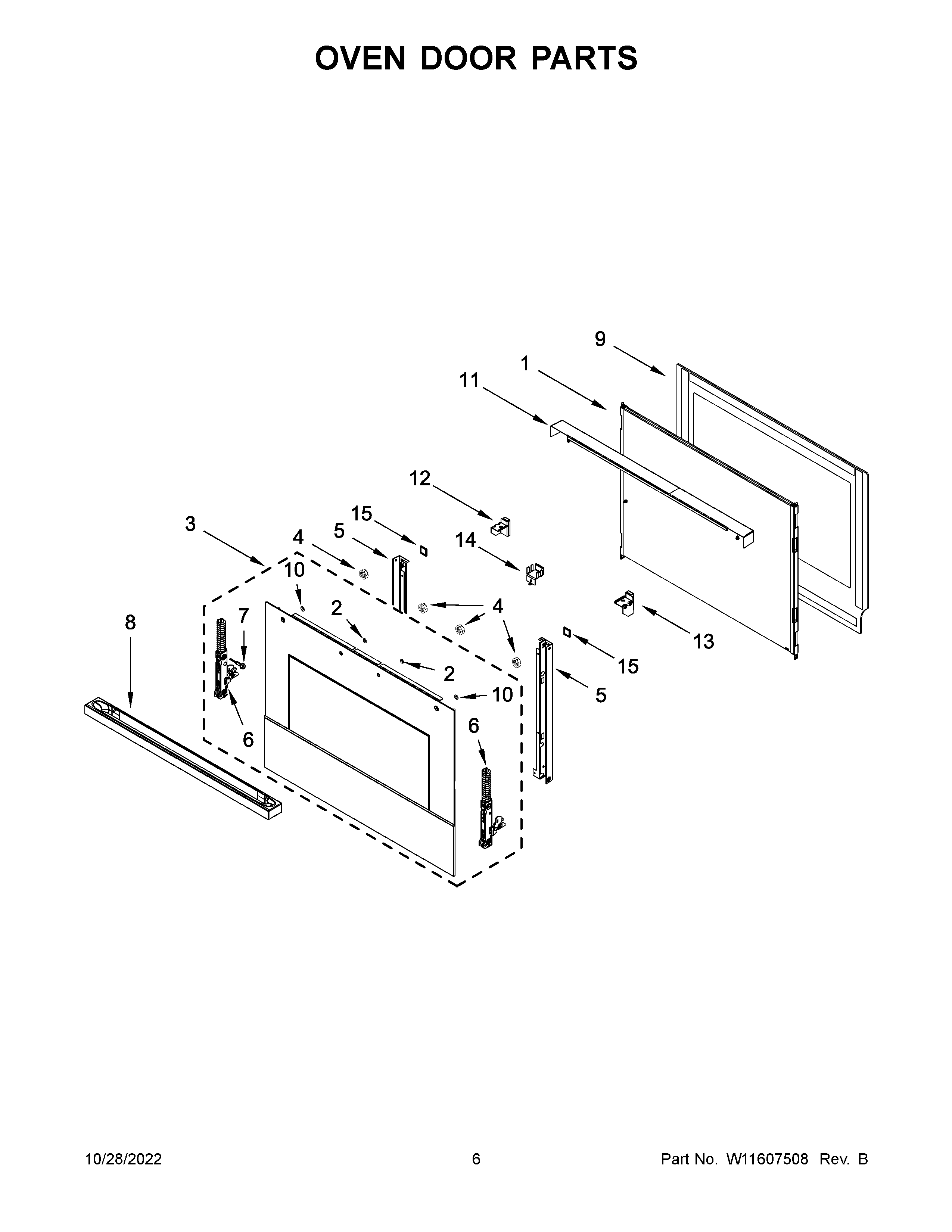

JMW3430LM00 04 – OVEN DOOR PARTS

JMW3430LM00 04 – OVEN DOOR PARTS

Written by

in

JMW3430LM00 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11600213 Whirlpool Oven Door Glass
2SPACER, HANDLE
3W11602614 Whirlpool Glass Door
4W11602632 Whirlpool Nut Assembly
5W11598126 Whirlpool Support Bracket
5AW11598127 Whirlpool Support Bracket
6AW11111222 Whirlpool Oven Door Hinge
6W11111221 Whirlpool Oven Door Hinge
7WP3196183 Whirlpool Screw
8W11411894 Whirlpool Door Handle Assembly
9W11602610 Whirlpool Oven Glass Door
10W11676355 Whirlpool Washer
11TRIM-VENT
12W11598130 Whirlpool Oven Support Bracket
13W11598128 Whirlpool Oven Support Bracket
14W11598131 Whirlpool Oven Clip
15WPW10517428 Whirlpool Spacer
