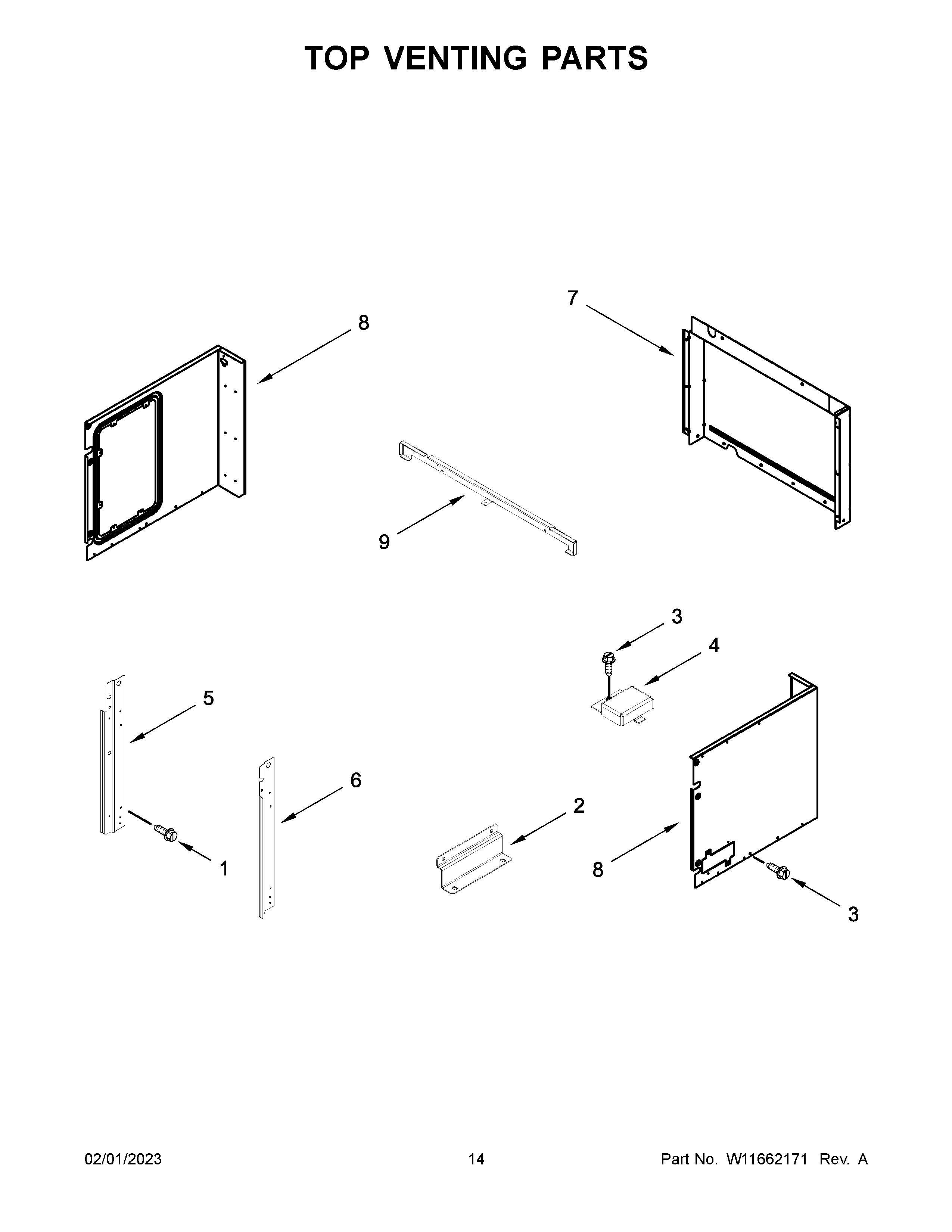

JMW3430LM02 08 – TOP VENTING PARTS

JMW3430LM02 08 – TOP VENTING PARTS

Written by

in

JMW3430LM02 08 – TOP VENTING PARTS

Products

PositionProduct
1SCREW
2W10283024 Whirlpool Mounting Bracket
3SCREW
48285593 Whirlpool Oven Wire Cover
5W11627410 Whirlpool Mounting Rail
6W11627411 Whirlpool Mounting Rail
7COVER-REAR
8SIDE, COMBO CHASSIS (LEFT)
8ASIDE, COMBO CHASSIS (RIGHT)
9W10283022 Whirlpool Support
