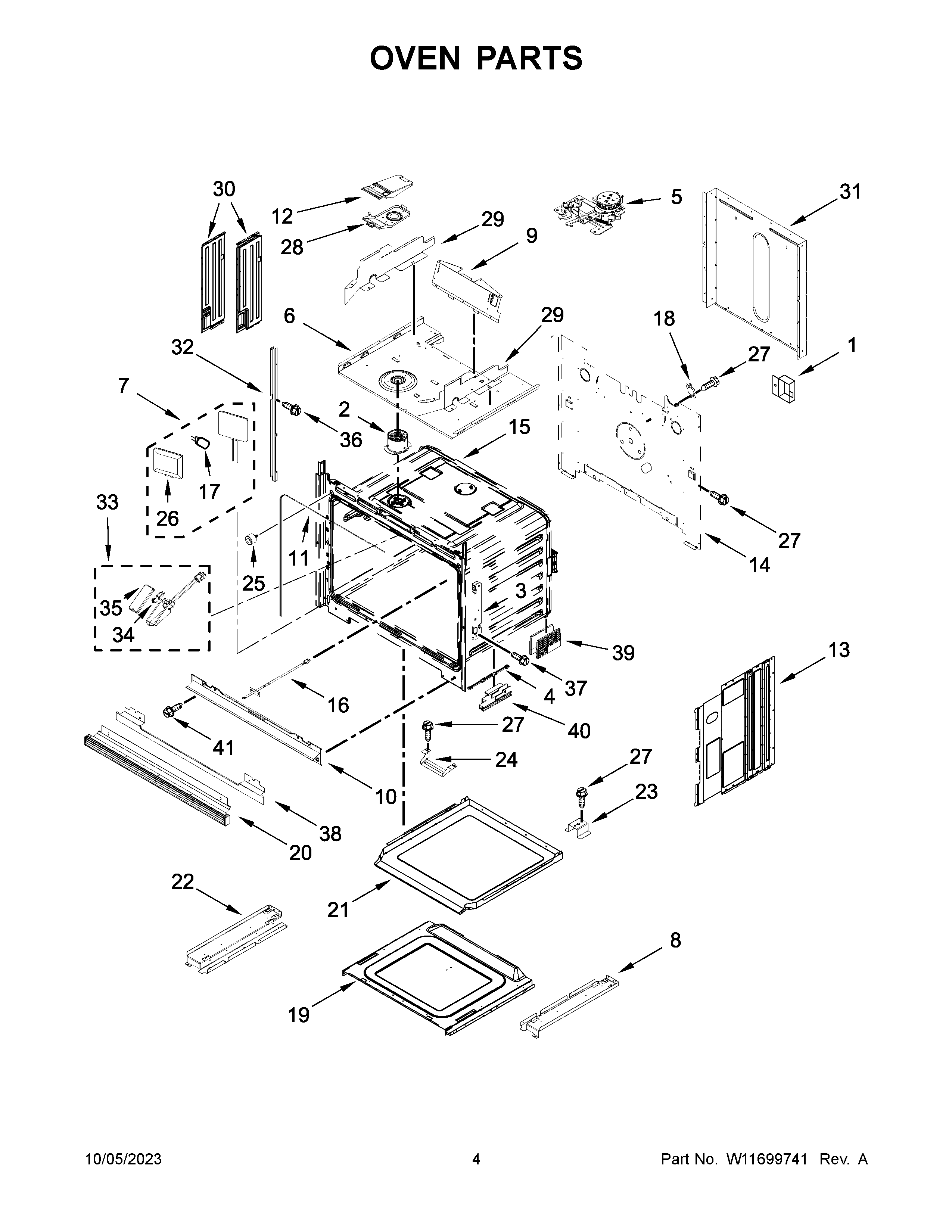

JMW3430LM03 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, TOP BACK
NI	INSULATION, WRAP
1	8285593 Whirlpool Oven Wire Cover
2	W11240525 Whirlpool Vent Tube
3	W11712405 Whirlpool Receiver Hinge
3A	W11712406 Whirlpool Receiver Hinge
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W10283021 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	VENT-OVEN
11	W11692454 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS (NOT SERVICED)
15	LINER, OVEN (NOT SERVICEABLE)
16	W11598120 Whirlpool Thermostat
17	WPW10472384 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11369884 Whirlpool Oven Heat Deflector
21	COVR-ACESS
22	W10283020 Whirlpool Support
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11598125 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	BASE, VENT EXHAUST
29	DEFLECTOR, CHASSIS (LEFT)
29A	DEFLECTOR, CHASSIS (RIGHT)
30A	W11598151 Whirlpool Side Cover
30	W11598150 Whirlpool Side Cover
31	W11134657 Whirlpool Rear Cover
32	TRIM
32A	TRIM
33	W11325525 Whirlpool Oven Light
34	BULB-LIGHT
35	W10169756 Whirlpool Light Lens
36	W11602623 Whirlpool Screw
37	WPW10254050 Whirlpool Screw
38	W11598135 Whirlpool Trim
39	W11598170 Whirlpool Level Foot
40	W11598169 Whirlpool Foot Level Assembly
40A	W11598168 Whirlpool Leveling Foot
41	WPY706189 Whirlpool Stove Screw
