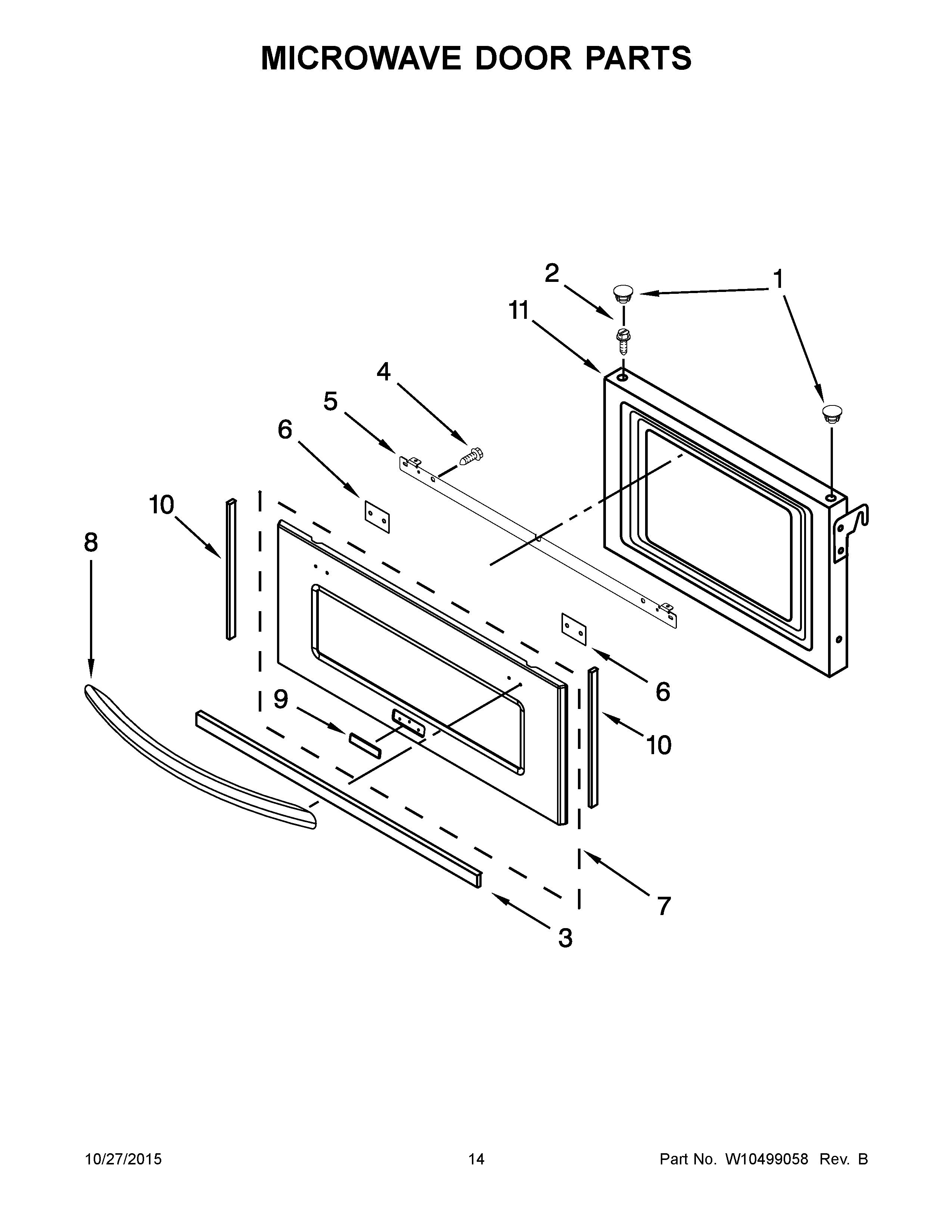

JMW3430WB02 08 – MICROWAVE DOOR PARTS

Products

Position	Product
1	CAP, SCREW
2	MAY 7101P426- 60
3	FOAM PAD
4	SCREW, HANDLE (STANDARD)
5A	MAY W10281176
5	BRACKET, HANDLE
6	MAY W10314607
7A	MAY W10269421
7C	MAY W10269423
7B	MAY W10269422
7	MAY W10176200
8	MAY W10186755
8A	MAY W10186756
8B	MAY W10186757
8C	HANDLE, DOOR
9C	MAY W10159578
9B	ASSEMBLY, BADGE (OILED BRONZE)
9A	ASSEMBLY, BADGE (STAINLESS)
9	ASSEMBLY, BADGE (BLACK)
10	MAY W10209070
11	MAY W10288012
