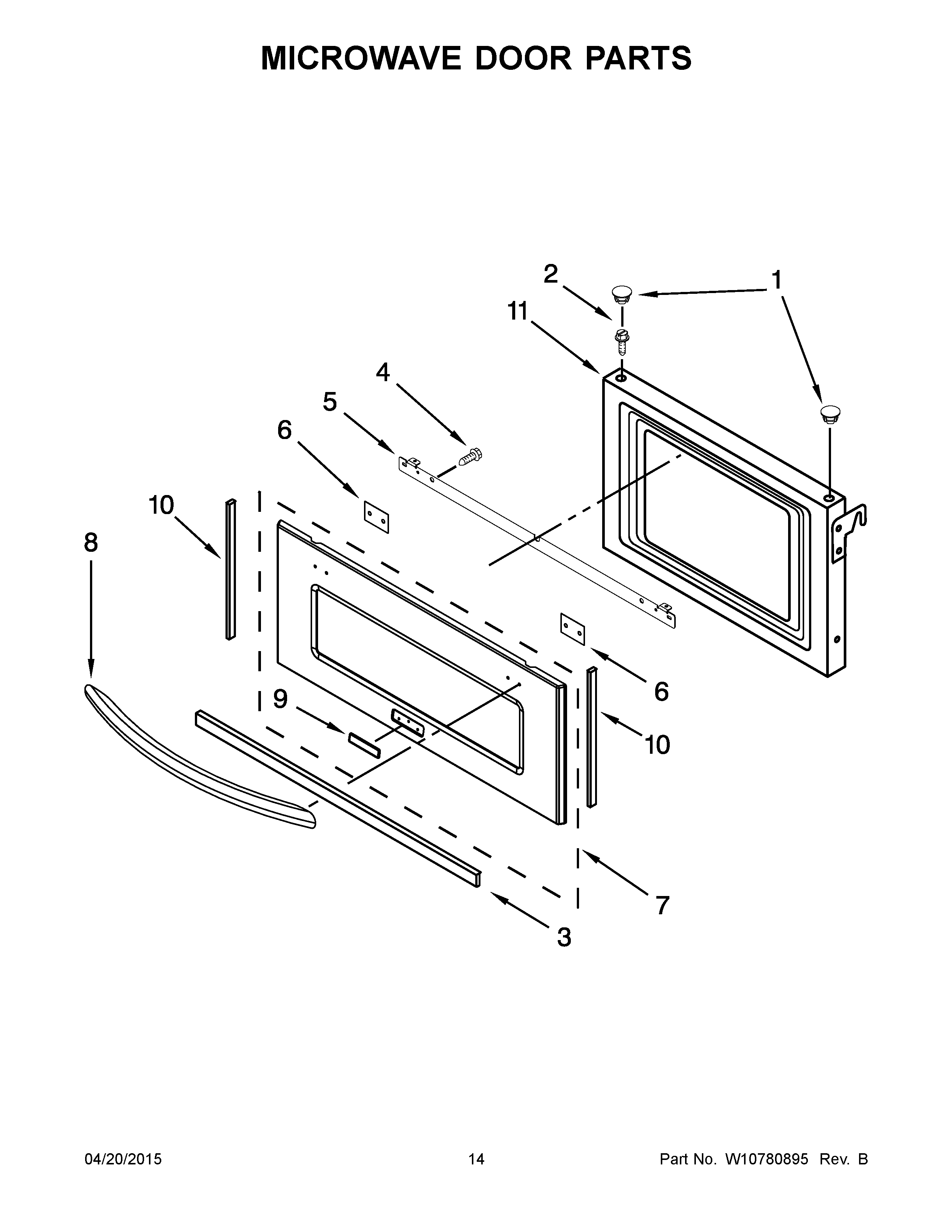

JMW3430WP03 08 – MICROWAVE DOOR PARTS

JMW3430WP03 08 – MICROWAVE DOOR PARTS

Written by

in

JMW3430WP03 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
1CAP, SCREW
2MAY 7101P426- 60
3FOAM PAD
4SCREW, HANDLE (STANDARD)
5AMAY W10281176
5BRACKET, HANDLE
6MAY W10314607
7BMAY W10269423
7AMAY W10269421
7MAY W10176200
8BHANDLE, DOOR
8AMAY W10186756
8MAY W10186755
9BMAY W10159578
9AASSEMBLY, BADGE (STAINLESS)
9ASSEMBLY, BADGE (BLACK)
10MAY W10209070
11MAY W10737655
