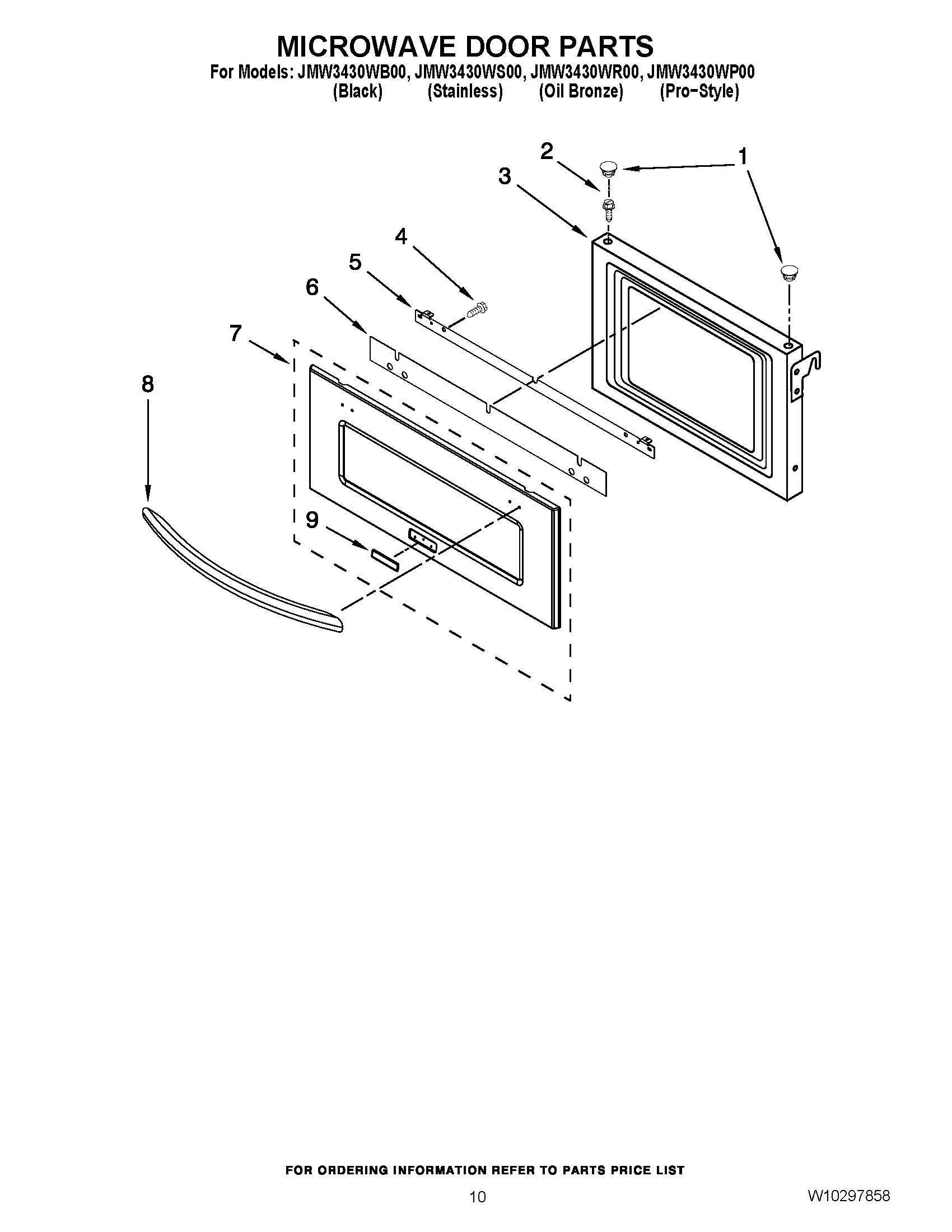

JMW3430WR00 07 – MICROWAVE DOOR PARTS

JMW3430WR00 07 – MICROWAVE DOOR PARTS

Written by

in

JMW3430WR00 07 – MICROWAVE DOOR PARTS

Products

Position	Product
1	CAP, SCREW
2	MAY 7101P426- 60
3	MAY W10288012
4	SCREW, HANDLE (STANDARD)
5	BRACKET, HANDLE
6	MAY W10213722
7	MAY W10269423
7	MAY W10269422
7	MAY W10269421
7	MAY W10176200
8	MAY W10186755
8	MAY W10186756
8	MAY W10186757
8	HANDLE, DOOR
9	ASSEMBLY, BADGE (BLACK)
9	MAY W10159578
9	ASSEMBLY, BADGE (OILED BRONZE)
9	ASSEMBLY, BADGE (STAINLESS)
