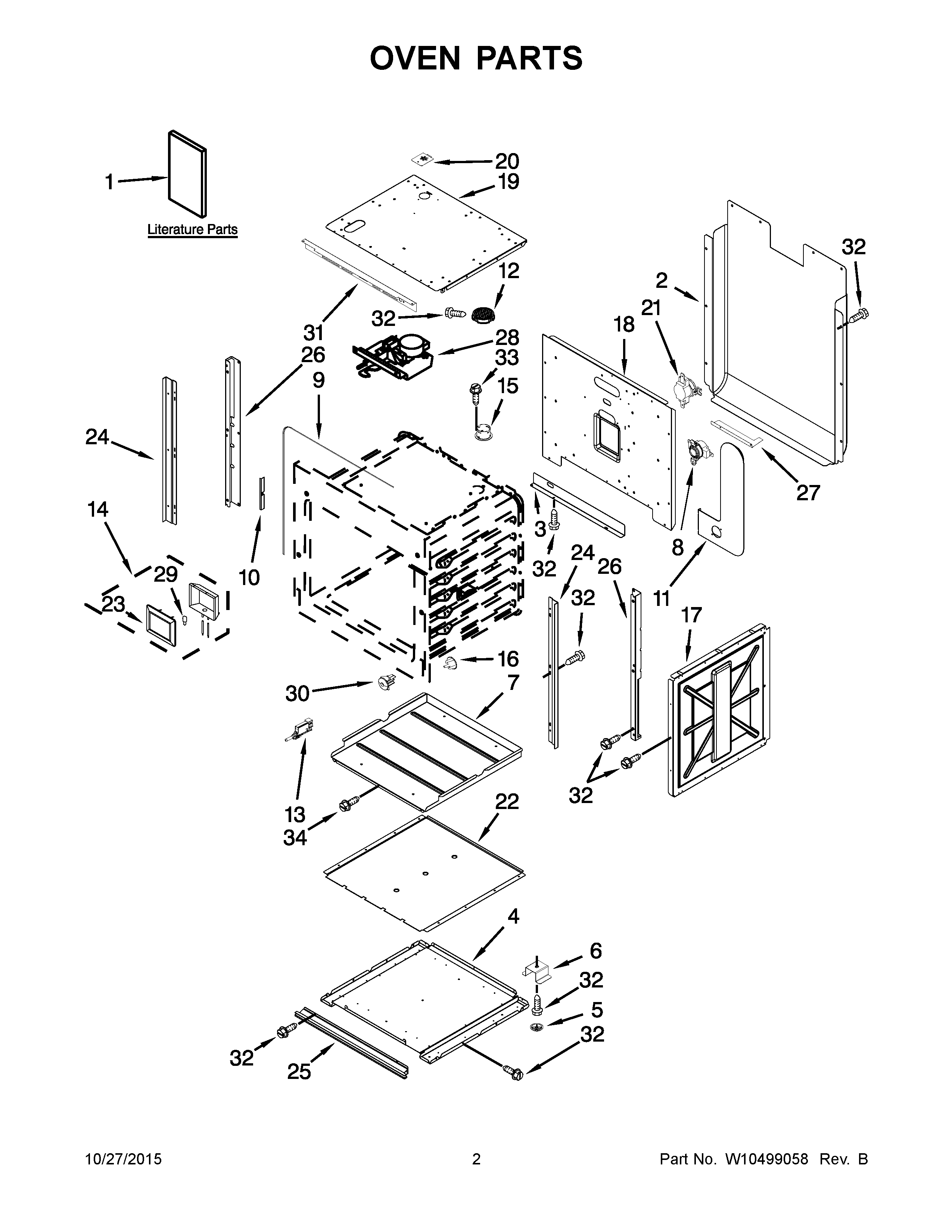

JMW3430WS02 02 – OVEN PARTS

Products

Position	Product
NI	MAY W10186989
NI	WIRING HARNESS PARTS, FUSE, TIME DELAY
NI	WIRING HARNESS PARTS, HOLDER, FUSE
NI	MISCELLANEOUS PARTS, HARNESS, COMM CMB POWER
NI	MAY W10175994
NI	MAY W10282791
NI	JUMPER, THERMAL
NI	HARNESS, MEAT PROBE JACK
NI	HARNESS, LATCH W/MEAT PROBE
NI	WIRING HARNESS PARTS, HARNESS, SIGNAL EXTENDED
NI	MAY W10174376
NI	WIRING HARNESS PARTS, CONDUIT, COMBO
1E	TIPS, SAFE COOKING (FRENCH)
1A	INSTR, INSTALLER
1G	MAY W10213741
1	INSTALLATION INSTRUCTIONS
1B	MAY W10450585
1C	MAY W10233422
1F	MAY W10213732
1D	TIPS, SAFE COOKING (ENGLISH)
2	MAY 2624F043-51
3	BAFFLE, REAR LOWER
4	MAY W10280327
5	MAY 8038P035-60
6	MAY W10213759
7	MAY 3401F079-45
8	MAY W10277592
9	MAY W10213818
10	MAY W10176218
11	MAY 4006W217-45
12	SCREEN, SMOKE ELM.
13	MAY W10286173
14	MAY W10175989
15	MAY 8026P065-60
16	MAY 7718P033-60
17	MAY W10175995
18	MAY W10175996
19	MAY W10175998
20	MAY W10213792
21	SWITCH, HI LIMIT
22	CHANNEL, BTM AIR BAKE ELEMENT
23	MAY W10187003
24	MAY W10277588
25	TRIM, BOTTOM VENT (BLACK/OILED BRONZE)
25A	MAY W10176036
26	MAY W10277423
26A	MAY W10277424
27	MAY W10186984
28	LATCH, DOOR
29	BULB, OVEN
30	MAY W10213745
31	MAY W10176018
32	MAY 7101P426- 60
33	MAY 7101P434-60
34	MAY W10236129
