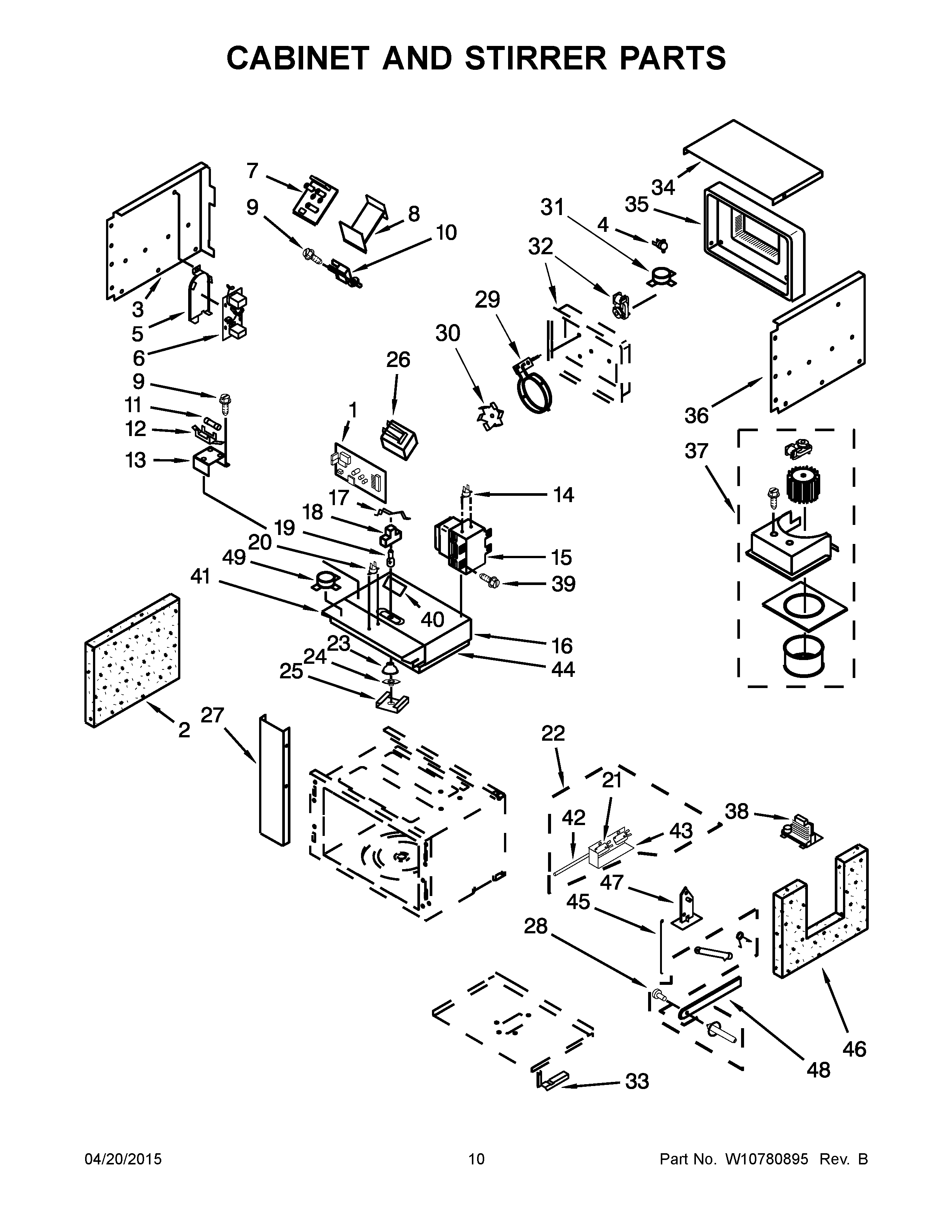

JMW3430WS03 06 – CABINET AND STIRRER PARTS

Products

Position	Product
NI	MAY 461967903621
1	MAY W10642016
4	MAY W10120223
6	FILTER, NOISE
7	MAY W10578541
9	MAY W10131249
10	THERMOACTUATOR
11	MAY 4375321
12	BLOCK, FUSE
13	BRACKET, SUPPORT
14	THERMOSTAT, MAGNETRON
15	MAY 461967847321
17	SPRING, LAMP
18	HOLDER, LAMP
19	MAY 241954900069
20	MAY W10389447
21	SWITCH
22	MAY 461968971512
23	MAY 4375320
24	MAY 4375318
25	CLIP, SPRING
26	TRANSFORMER, LIGHT (20V)
28	ASSEMBLY, SLIDING ARM
29	HEATER, CONVECTION ELEMENT
30	FAN, CONVECTION
31	SENSOR, CONVECTION
32	MAY 461969000371
33	MAY 461968979601
37	MAY 461968969271
38	MAY W10468206
39	MAY W10130890
42	ROD, RELEASE
43	HOLDER, SWITCH
45	SPRING
46	LINER (NOT A SERVICEABLE PART)
47	SUPPORT
48	ARM, SLIDING
49	SENSOR, HUMIDITY
