JMW8330DAB 06 – OVEN

JMW8330DAB 06 – OVEN

Written by

in

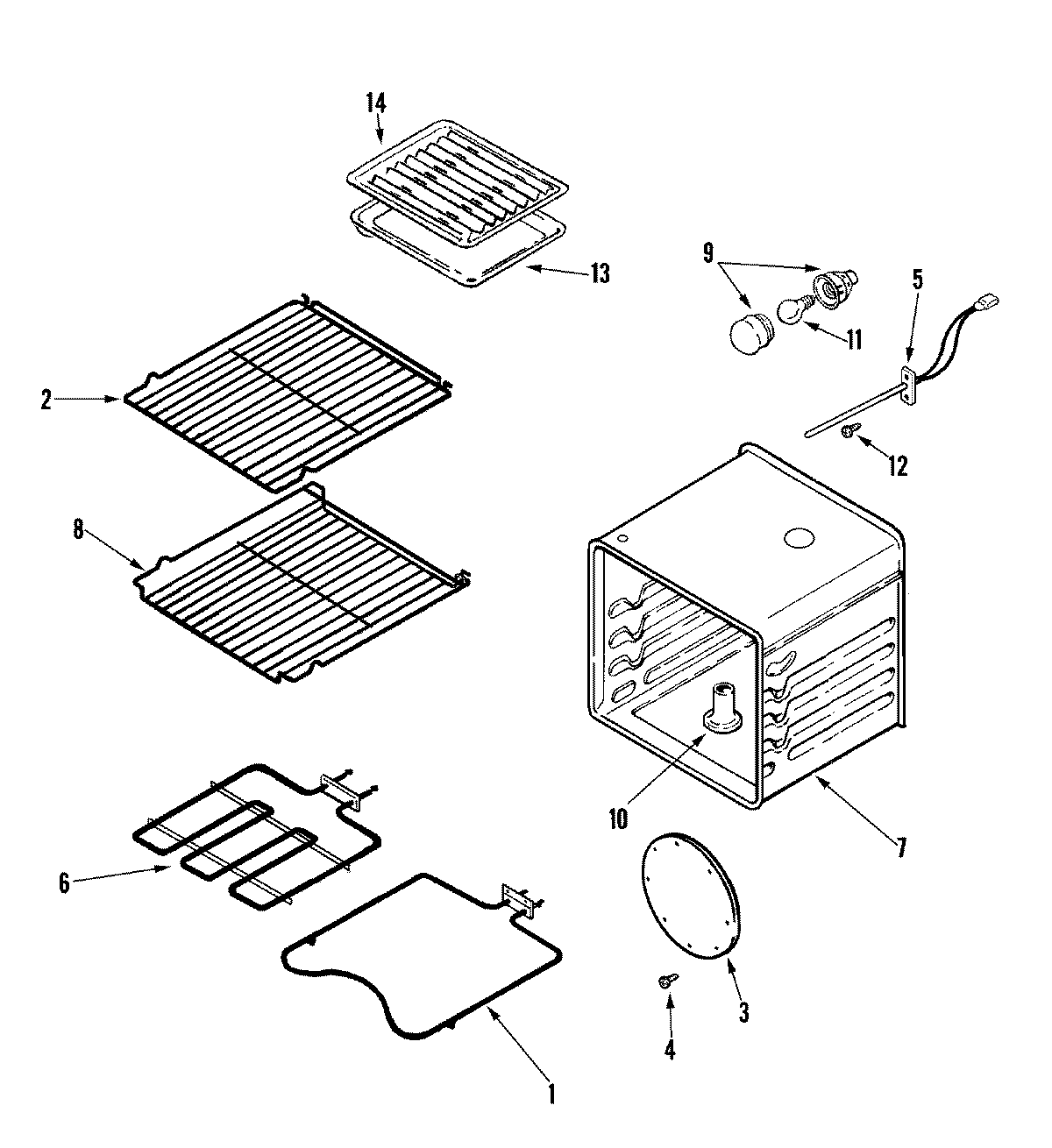

JMW8330DAB 06 – OVEN

Products

PositionProduct
1WPW10310258 Whirlpool Bake Element
2WPW10282527 Whirlpool Oven Rack
3MAY 71002903
4WP74003976 Whirlpool Screw
512001656 Whirlpool Range Oven Temperature Sensor
6MAY 71001394
6WPW10310260 Whirlpool Broil Element
6MAY 71001395
7MAY 71001170
7MAY 74008329
9WP74011278 Whirlpool Light
10MAY 71002419
11RANGE ONLY 40W 120V APPL BULB
13MAY Y3401F02019
14MAY Y3413F01619
