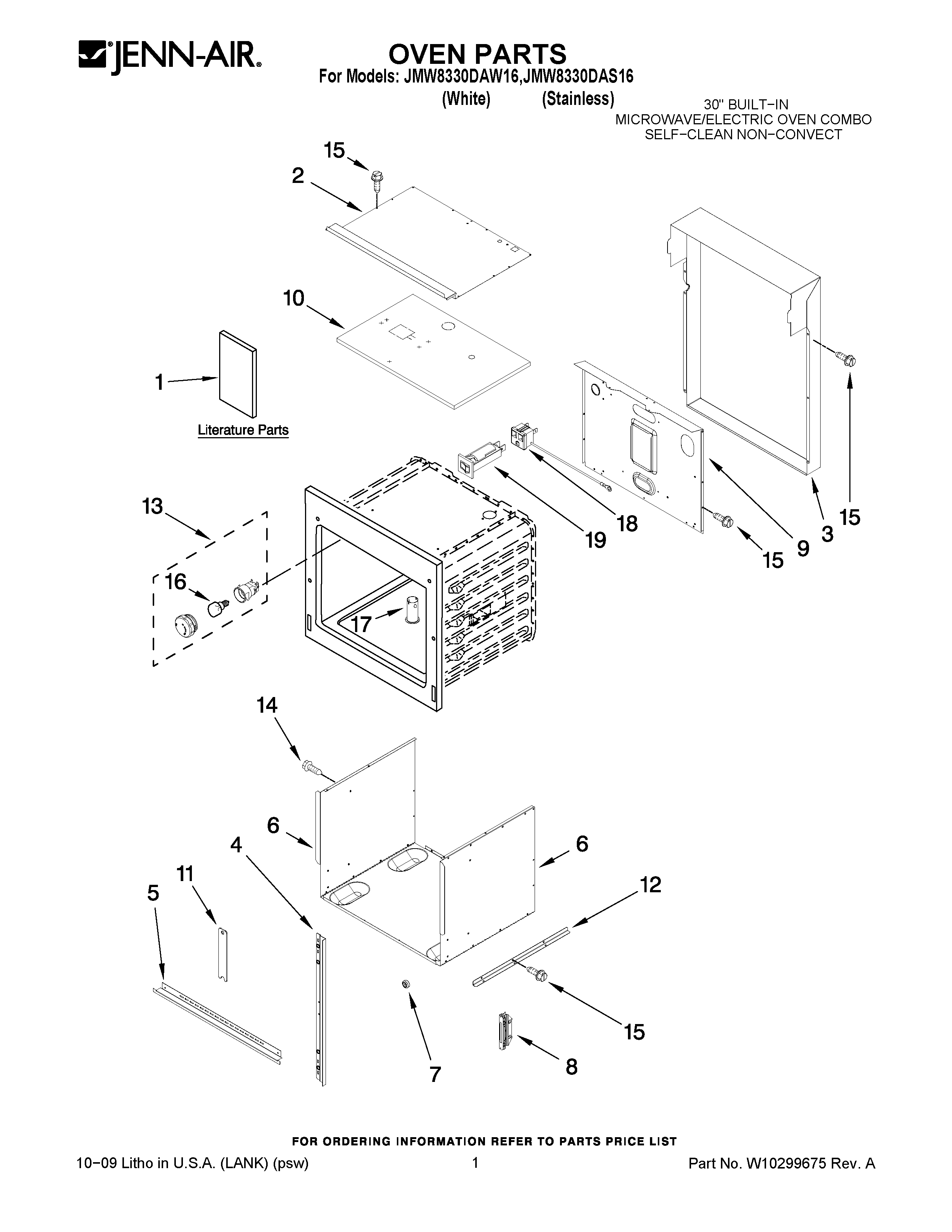

JMW8330DAS16 01 – OVEN PARTS

JMW8330DAS16 01 – OVEN PARTS

Written by

in

JMW8330DAS16 01 – OVEN PARTS

Products

Position	Product
NI	MAY 7002P368-60
NI	MAY 7002P251-60
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10176680
1	MAY 8101P744-60
1	MAY W10239613
2	MAY 2624F074-51
3	MAY 2624F061-51
4	TRIM, SIDE
4	MAY 7744P407-60
5	MAY 3608F085-71
5	TRIM, OVEN
6	MAY 2618F222-51
7	BUMPER, RUBBER
8	MAY 8014P031-60
9	RETAINER, INSUL. (TOP/BACK)
10	INSULATION,
11	MAY 3605F236-50
12	MAY 3802F116-51
13	MAY 7407P181-60
14	MAY 7101P635-60
15	MAY 7101P426- 60
16	RANGE ONLY 40W 120V APPL BULB
17	MAY 7505P322-60
18	MAY 7408P055-60
19	MAY 7429P006-60
