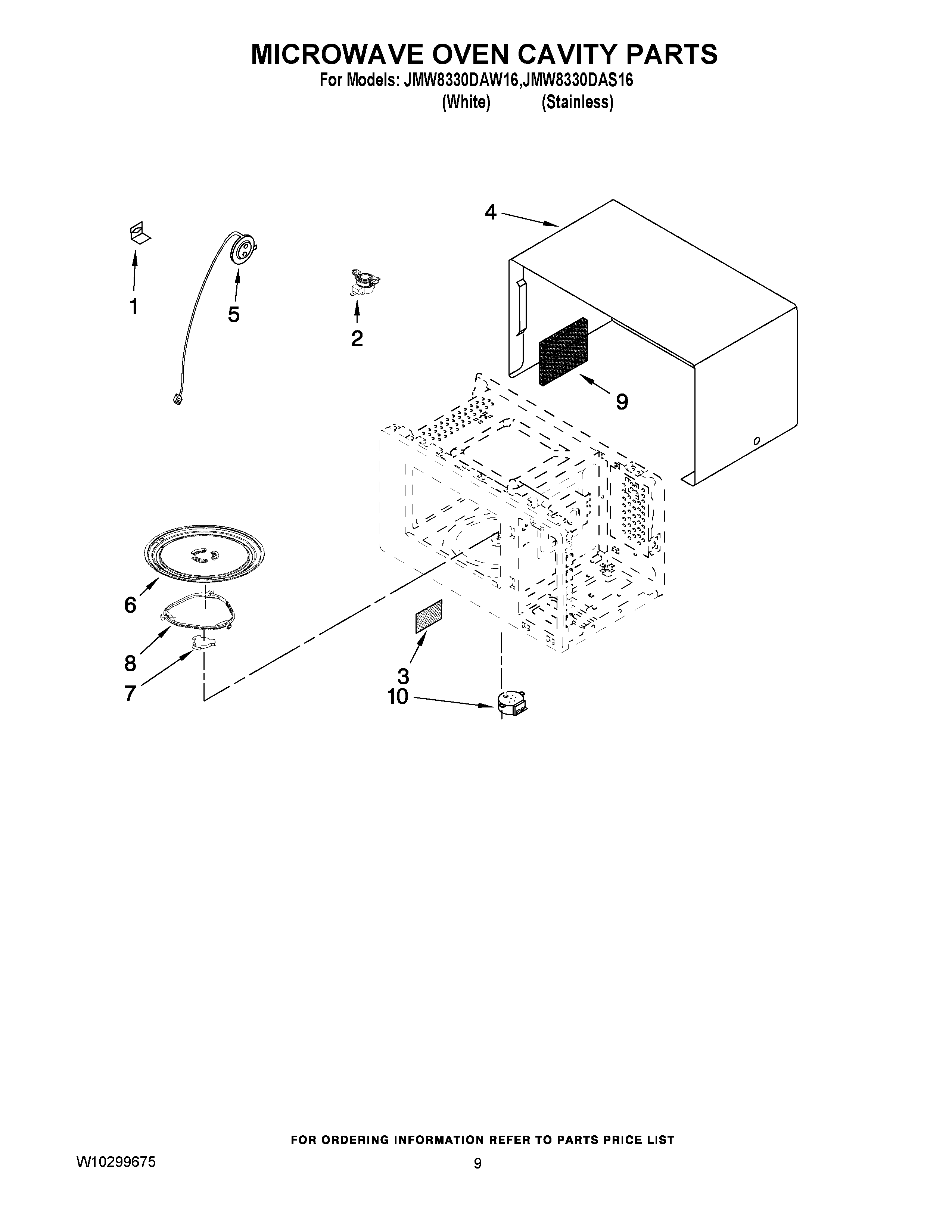

JMW8330DAS16 07 – MICROWAVE OVEN CAVITY PARTS

Written by

Products

Position	Product
1	BRACKET-SENSOR
2	DE47-20173A Samsung Thermostat
3	DE71-60449A Samsung Mounting Cover
4	DE64-01341C Samsung Outer Panel Black
4	PANEL-OUTER (WHT)
5	SENSOR, GAS
6	TRAY-COOKING
7	COUPLER
8	ASSY-GUIDE ROLLER,MR87/MR89,PI
10	MOTOR-DRIVE
