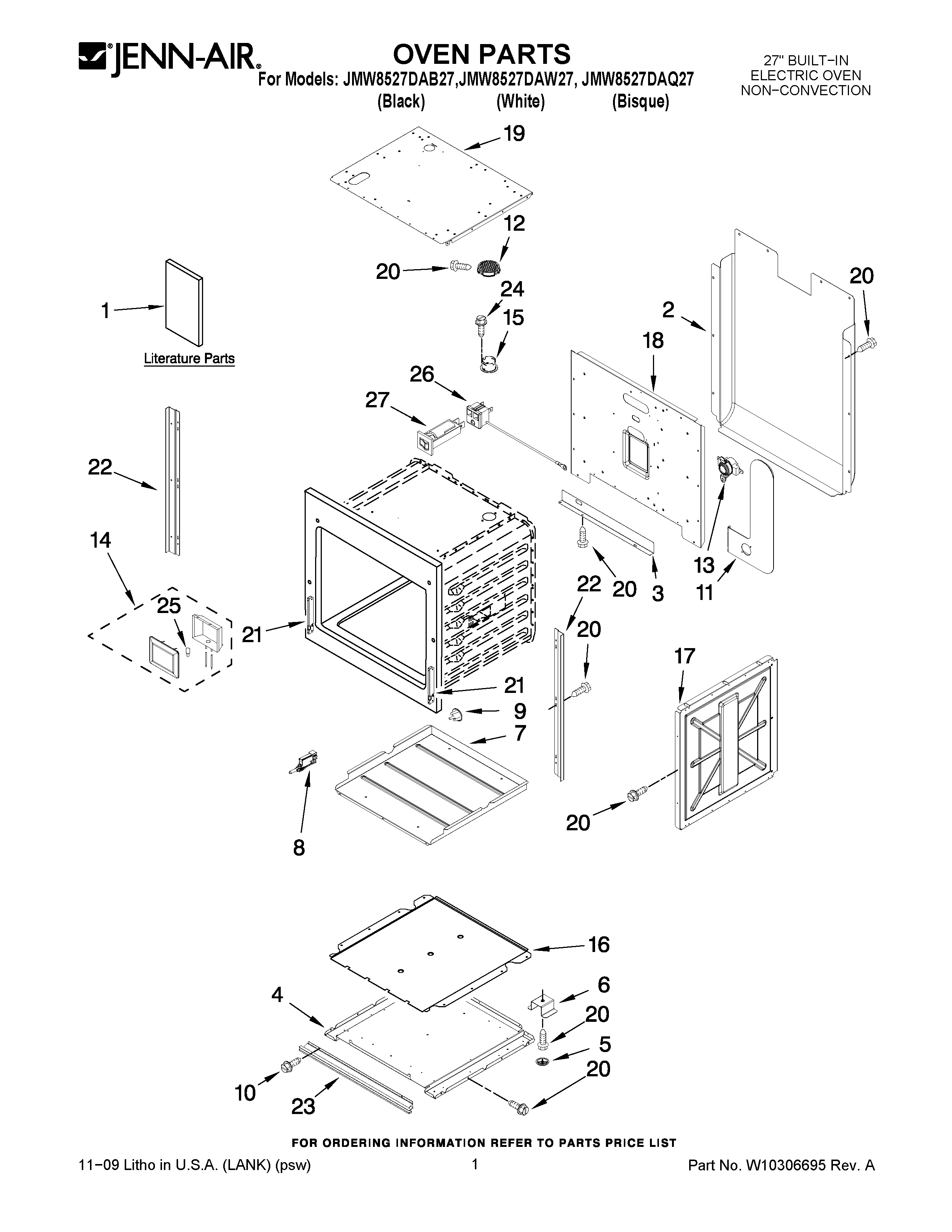

JMW8527DAB27 01 – OVEN PARTS

JMW8527DAB27 01 – OVEN PARTS

Written by

in

JMW8527DAB27 01 – OVEN PARTS

Products

Position	Product
NI	MAY 7002P407-60
NI	MAY 7002P422-60
1	MAY 8119P257-60
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY 8101P602-60
1	OWNERS MANUAL
2	MAY 2624F043-51
3	BAFFLE, REAR LOWER
4	MAY 2624F078-51
5	MAY 8038P035-60
6	SUPPORT, AIR CHANNEL
7	MAY 3401F079-45
8	ASSY., LIGHT SW
9	MAY 7718P021-60
10	MAY 7101P427-60
11	MAY 4006W218-45
12	SCREEN, SMOKE ELM.
13	SWITCH, HI LIMIT
14	ASSEMBLY, LIGHT
15	MAY 8026P066-60
16	CHANNEL, BOTTOM
17	MAY 2618F215-51
18	MAY 2624F096-51
19	PNL, TOP RETAINER
20	MAY 7101P426- 60
21	RECEIVER, HINGE
22	MAY 7744P461-60
22	MAY 7744P460-60
23	MAY 3608F098-70
24	MAY 7101P434-60
25	BULB, OVEN
26	MAY 7408P055-60
27	MAY 7429P006-60
