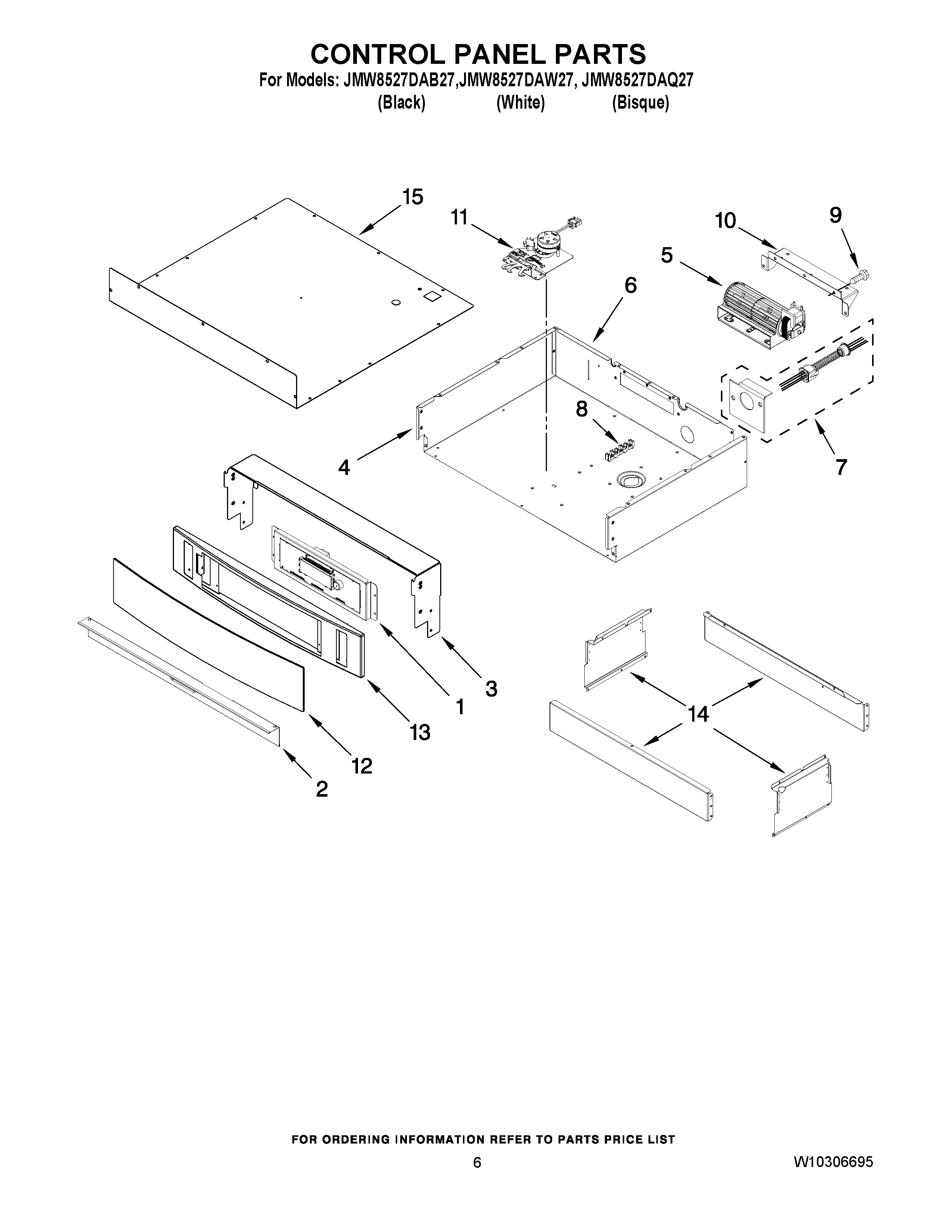

JMW8527DAB27 04 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY 8507P345-60
2	MAY 3608F106-70
3	SUPPORT, TOP CNTRL
4	PANEL, CNTRL SIDE (LEFT)
4	PANEL, CNTRL SIDE (RIGHT)
5	FAN, TANGENTIAL
6	PANEL, CONTROL BOX REAR
7	ASSEMBLY, CABLE
8	WPW10245259 Whirlpool Terminal Block
9	MAY 7101P426- 60
10	BRKT., COOLING FAN
11	ASSY., LATCH DOOR
12	MAY 7912P335-60
12	MAY 7912P347-60
12	MAY 7912P345-60
13	MAY 3807W663-70
14	MAY 3804F235-51
14	MAY 3804F250-51
14	MAY 3804F251-51
14	MAY 3804F252-51
15	MAY 2624F098-44
