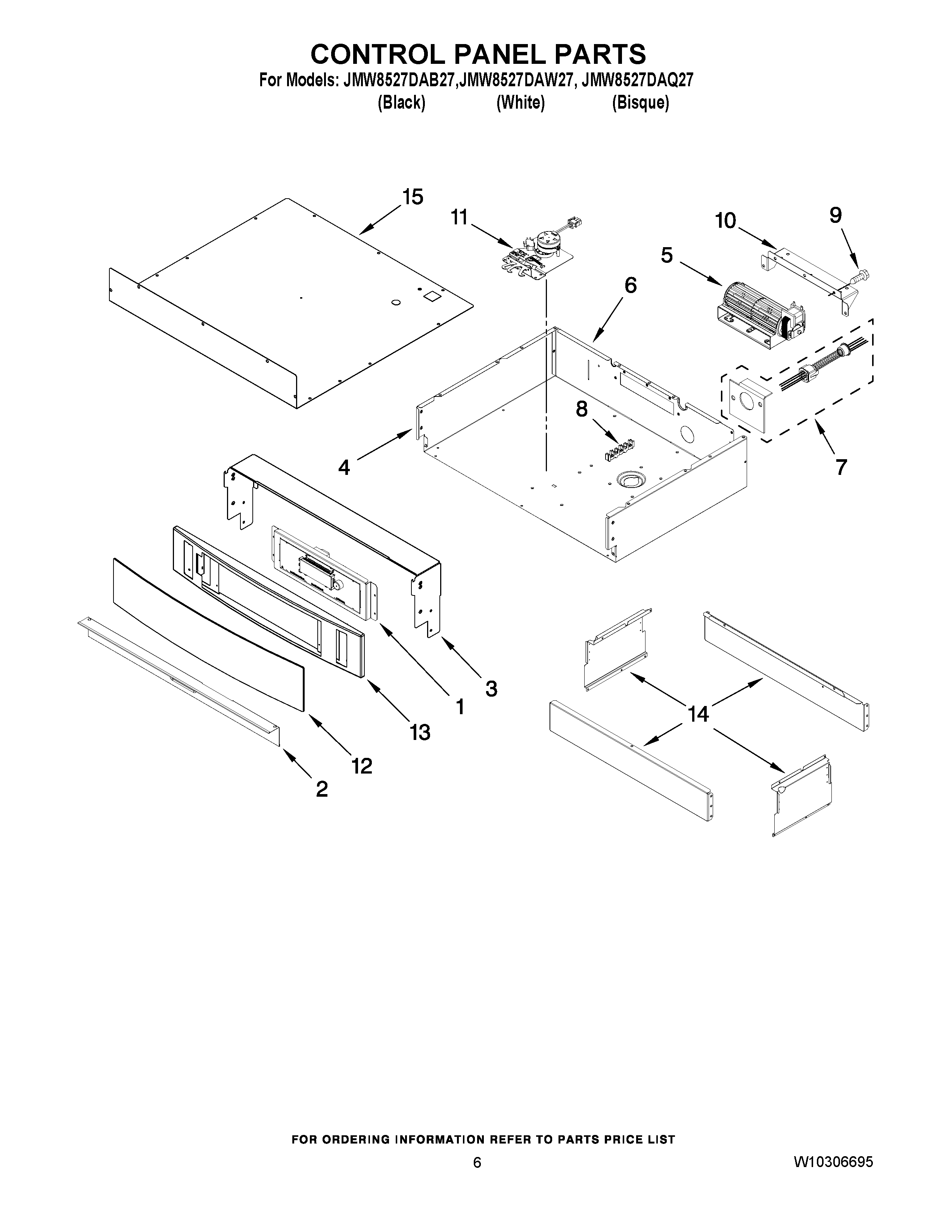

JMW8527DAQ27 04 – CONTROL PANEL PARTS

JMW8527DAQ27 04 – CONTROL PANEL PARTS

Written by

in

JMW8527DAQ27 04 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY 8507P345-60
2MAY 3608F106-70
3SUPPORT, TOP CNTRL
4PANEL, CNTRL SIDE (LEFT)
4PANEL, CNTRL SIDE (RIGHT)
5FAN, TANGENTIAL
6PANEL, CONTROL BOX REAR
7ASSEMBLY, CABLE
8WPW10245259 Whirlpool Terminal Block
9MAY 7101P426- 60
10BRKT., COOLING FAN
11ASSY., LATCH DOOR
12MAY 7912P335-60
12MAY 7912P347-60
12MAY 7912P345-60
13MAY 3807W663-70
14MAY 3804F235-51
14MAY 3804F250-51
14MAY 3804F251-51
14MAY 3804F252-51
15MAY 2624F098-44
