JMW8527DAQ27 06 – MICROWAVE OVEN PARTS

JMW8527DAQ27 06 – MICROWAVE OVEN PARTS

Written by

in

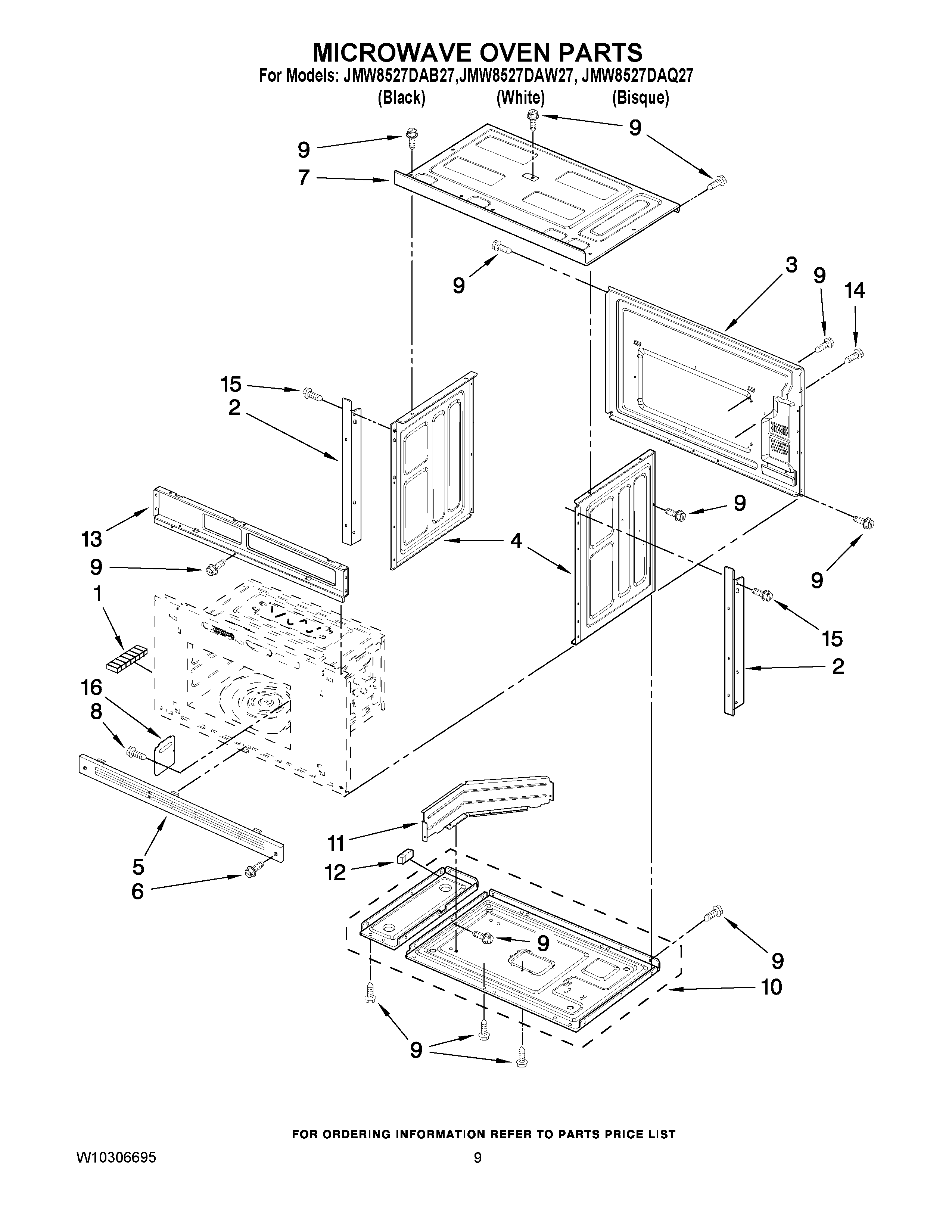

JMW8527DAQ27 06 – MICROWAVE OVEN PARTS

Products

Position	Product
1	MAY R9800398
2	Trim, Side (LH)
2	Trim, Side (RH)
3	MAY 53001298
4	Side, Chassis (Right Side)
4	Side, Chassis (Left Side)
5	Trim, Bottom
6	MAY R9800360
7	MAY 53001267
8	MAY R0654182
9	W11380570 Whirlpool Microwave Screw
10	BASE, PLATE
11	MAY 53001273
12	MAY W10182900
13	BRACKET, CNTRL
14	MAY R0654178
15	MAY R0654183
16	MAY R0130667
