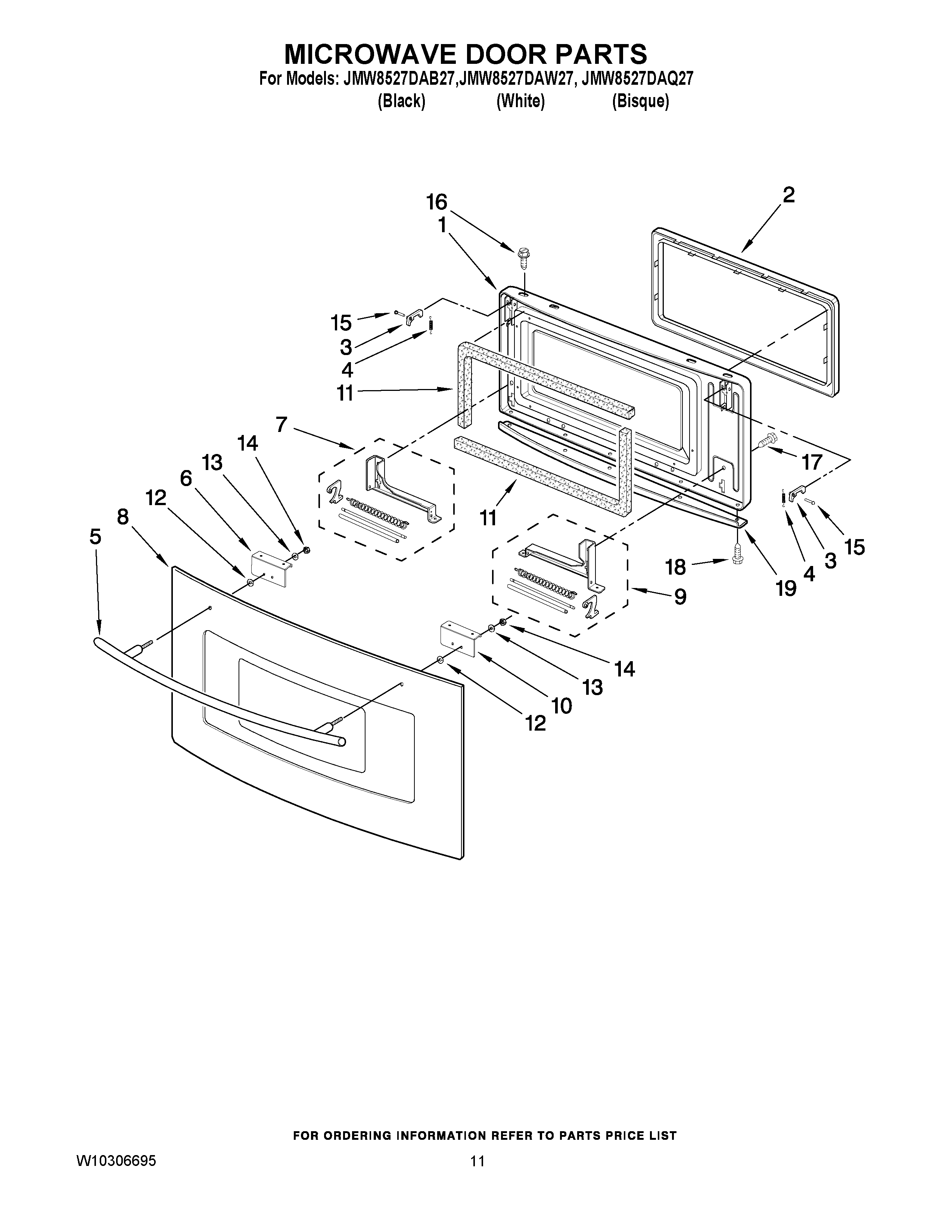

JMW8527DAQ27 07 – MICROWAVE DOOR PARTS

JMW8527DAQ27 07 – MICROWAVE DOOR PARTS

Written by

in

JMW8527DAQ27 07 – MICROWAVE DOOR PARTS

Products

PositionProduct
1FRAME, DOOR
2MAY 53001219
3MAY 53001220
4MAY 53001221
5HANDLE, DOOR
6Bracket, LH
7HINGE, LH
8GLASS, DOOR (WHITE)
8GLASS, DOOR (BISQUE)
8GLASS, DOOR (BLACK)
9HINGE, RH
10Bracket, RH
11Cushion, Door
12MAY 53001286
13Washer, Sprg Lck
14MAY 53001283
15MAY 53001281
16MAY 53001284
17MAY 53001285
18MAY R9800309
19Trim, Door Btm
