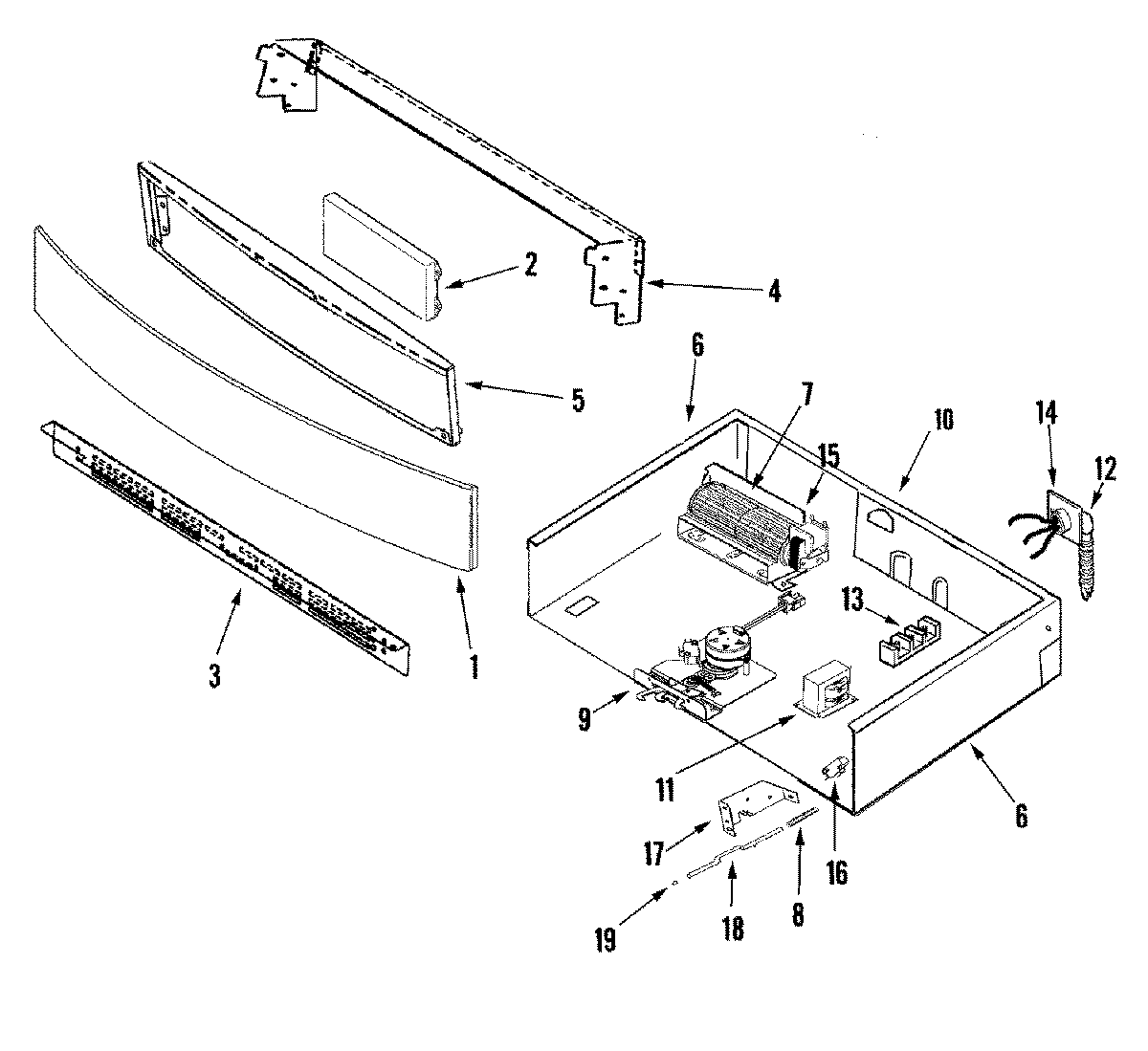

JMW8527DAW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008349
2WP74009714 Whirlpool Control Board
3MAY 74008361
4MAY 74008362
5MAY 74008351
6MAY 74008359
6MAY 74008360
7WP74008383 Whirlpool Tangential Fan
9WPW10186996 Whirlpool Door Latch
10PANEL, CONTROL BOX REAR
10MAY 74008382
11MAY 74005416
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 74004735
12MAY 74004222
13KIT, HARDWARE ADAPTER
13MAY 7417P017-60
13WP7103P027-60 Whirlpool Nut
13WPW10245259 Whirlpool Terminal Block
14MAY 74004712
15WP90767 Whirlpool Screw
15MAY 74008343
16MAY 7101P330-60
16WP74008263 Whirlpool Door Switch
16MAY 74008264
16SWTCH-LITE
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
