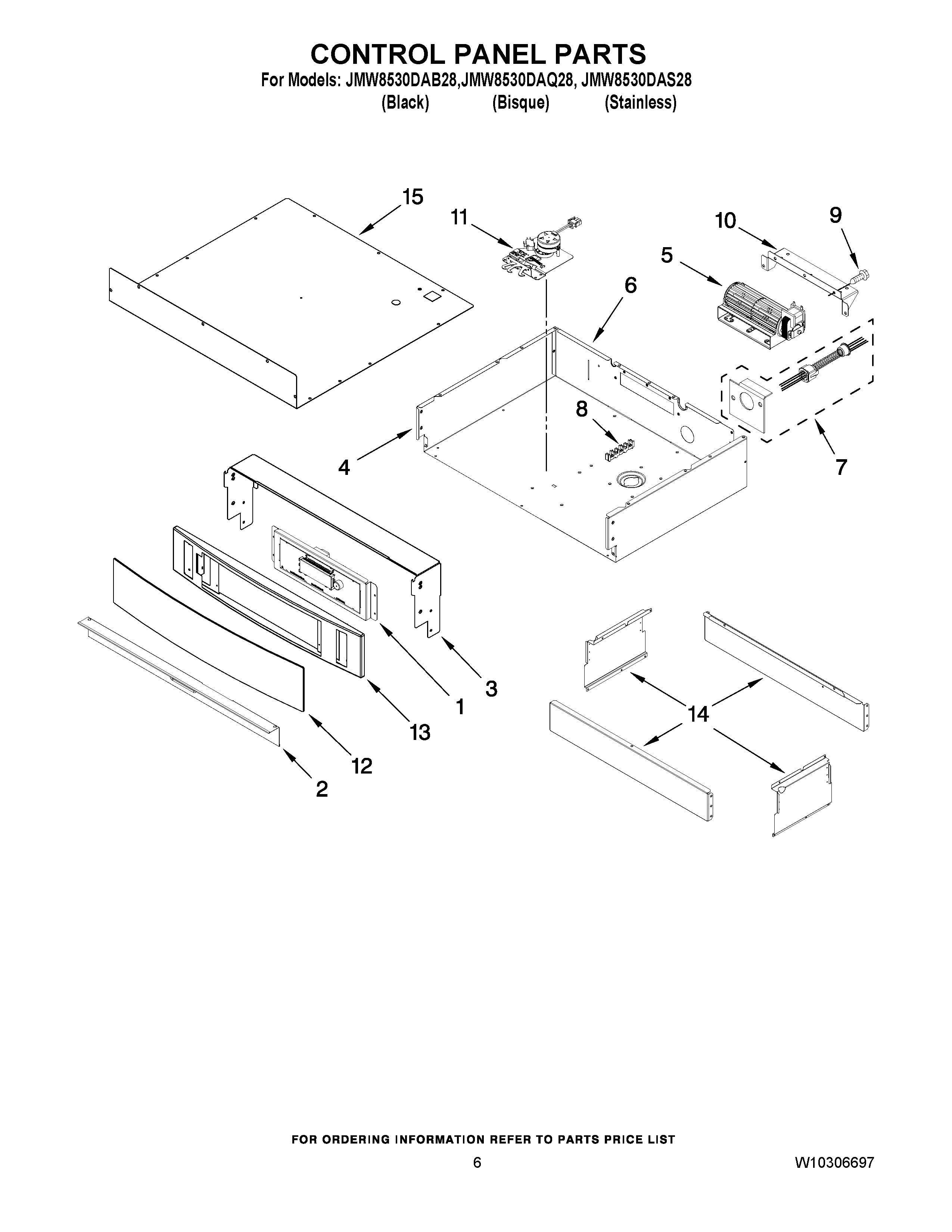

JMW8530DAS28 04 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY 8507P345-60
2	MAY 3608F107-70
3	SUPPORT, TOP CNTRL
4	PANEL, CNTRL SIDE (LEFT)
4	PANEL, CNTRL SIDE (RIGHT)
5	FAN, TANGENTIAL
6	PANEL, CONTROL BOX REAR
7	ASSEMBLY, CABLE
8	WPW10245259 Whirlpool Terminal Block
9	MAY 7101P426- 60
10	BRKT., COOLING FAN
11	ASSY., LATCH DOOR
12	MAY 7912P343-60
12	MAY 7912P356-60
12	MAY 7912P336-60
13	FRAME, CNTRL ASSY.
14	MAY 3804F251-51
14	MAY 3804F252-51
14	MAY 3804F234-51
14	MAY 3804F249-51
15	MAY 2624F098-44
