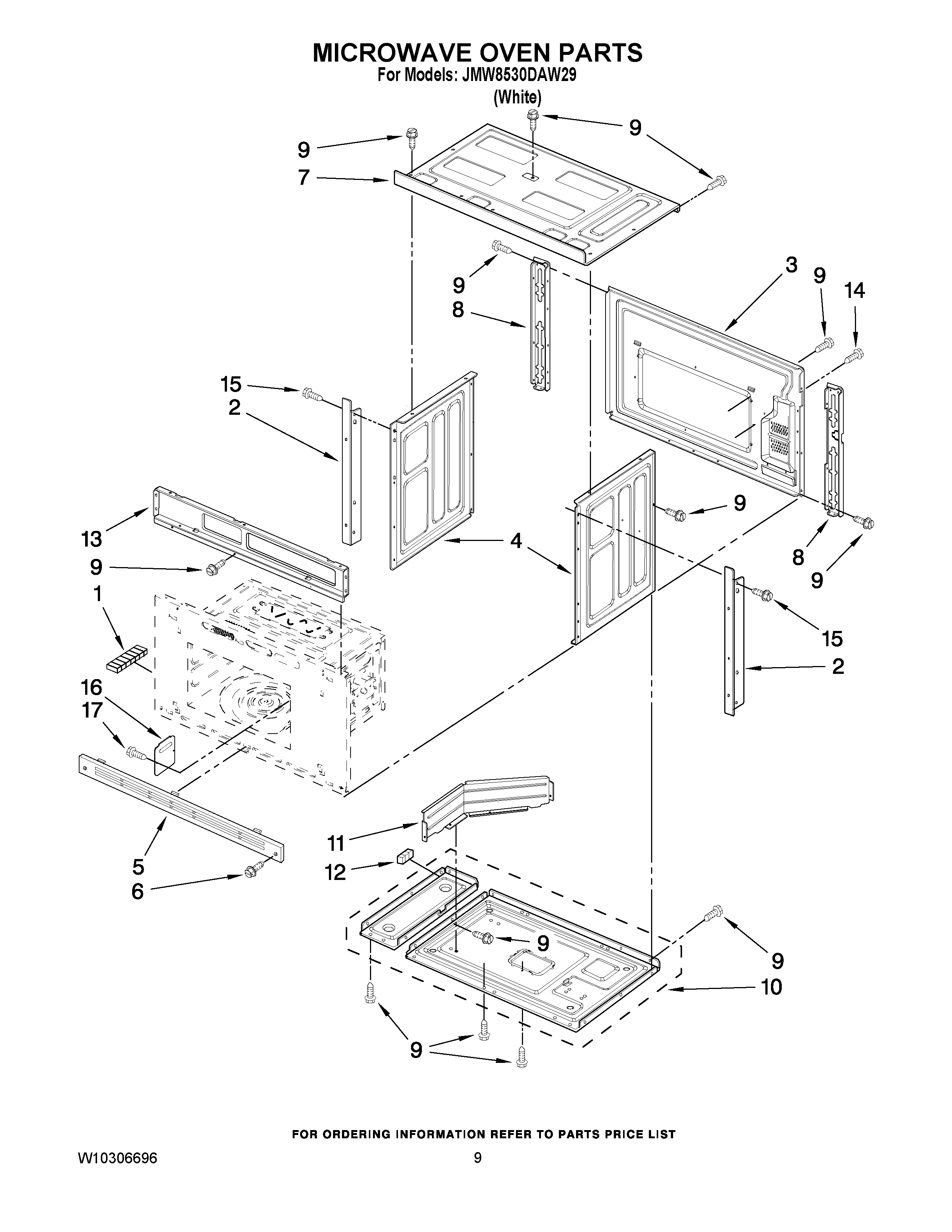

JMW8530DAW29 06 – MICROWAVE OVEN PARTS

Products

PositionProduct
1MAY R9800398
2Trim, Side (LH)
2Trim, Side (RH)
3MAY 53001298
4Side, Chassis (Left Side)
4Side, Chassis (Right Side)
5Trim, Bottom
6MAY R9800360
7MAY 53001267
8Bracket, Back (LH)
8Bracket, Back (RH)
9W11380570 Whirlpool Microwave Screw
10Base, Plate
11MAY 53001273
12MAY W10182900
13Bracket, Cntrl
14MAY R0654178
15MAY R0654183
16MAY R0130667
17MAY R0654182
