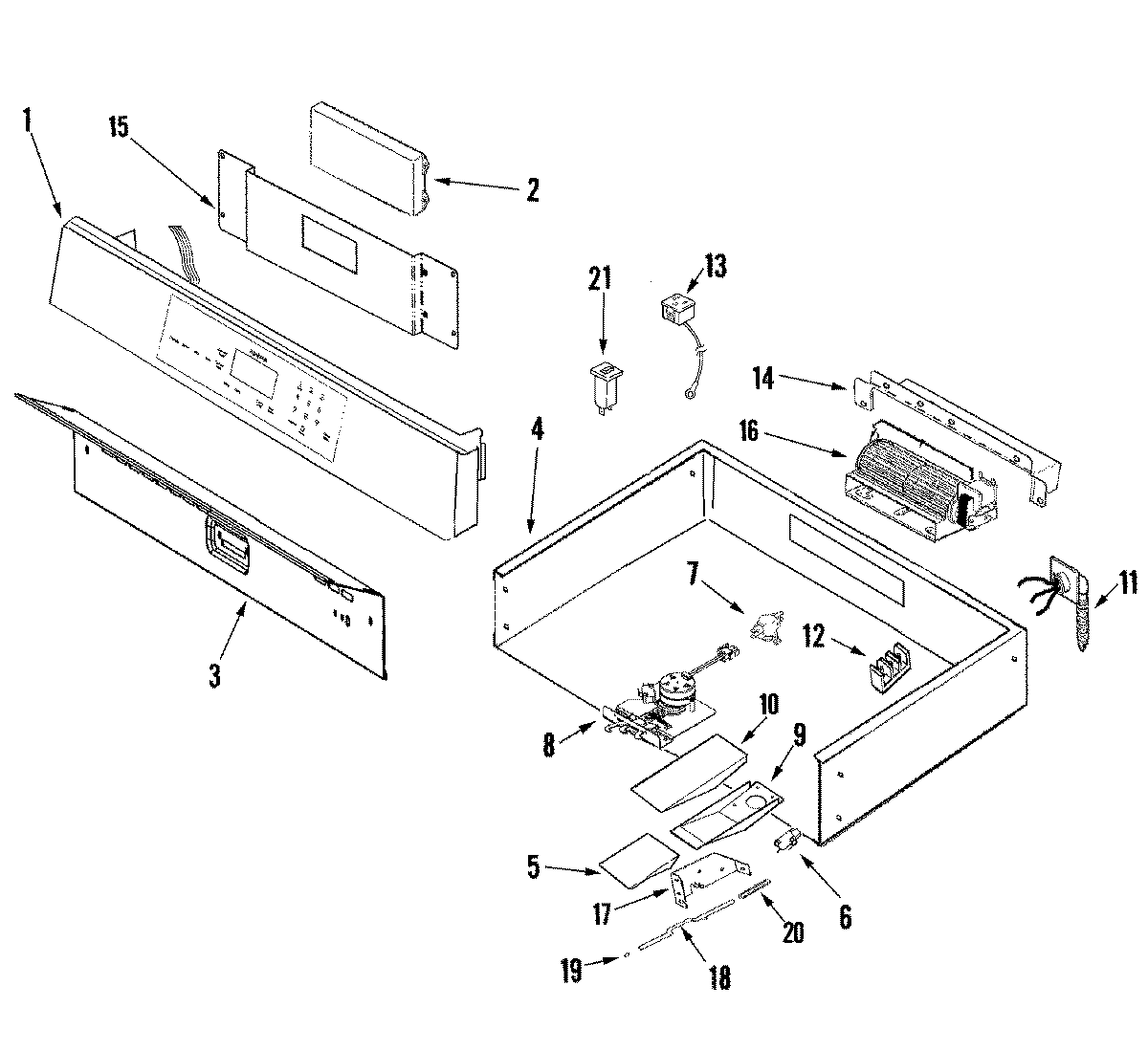

JMW9330DAB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
15765M487-60 Whirlpool Control Panel
1MAY 74008268
2MAY 74008952
3MAY 74008261
4MAY 74008262
5MAY 71001843
6SWTCH-LITE
6WP74008263 Whirlpool Door Switch
6MAY 74008264
7WP90767 Whirlpool Screw
774008265 Whirlpool Oven High Limit Thermostat
8MAY 7101P330-60
8WPW10186996 Whirlpool Door Latch
9MAY 74008294
10MAY 71001847
11MAY 74009005
11MAY 74004222
12WPW10245259 Whirlpool Terminal Block
12MAY 7417P017-60
12SCREW, GROUND (GRN)
12KIT, HARDWARE ADAPTER
13MAY 701704
14MAY 74008330
15MAY 74008299
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74001631
21WP71002286 Whirlpool Circuit Breaker
