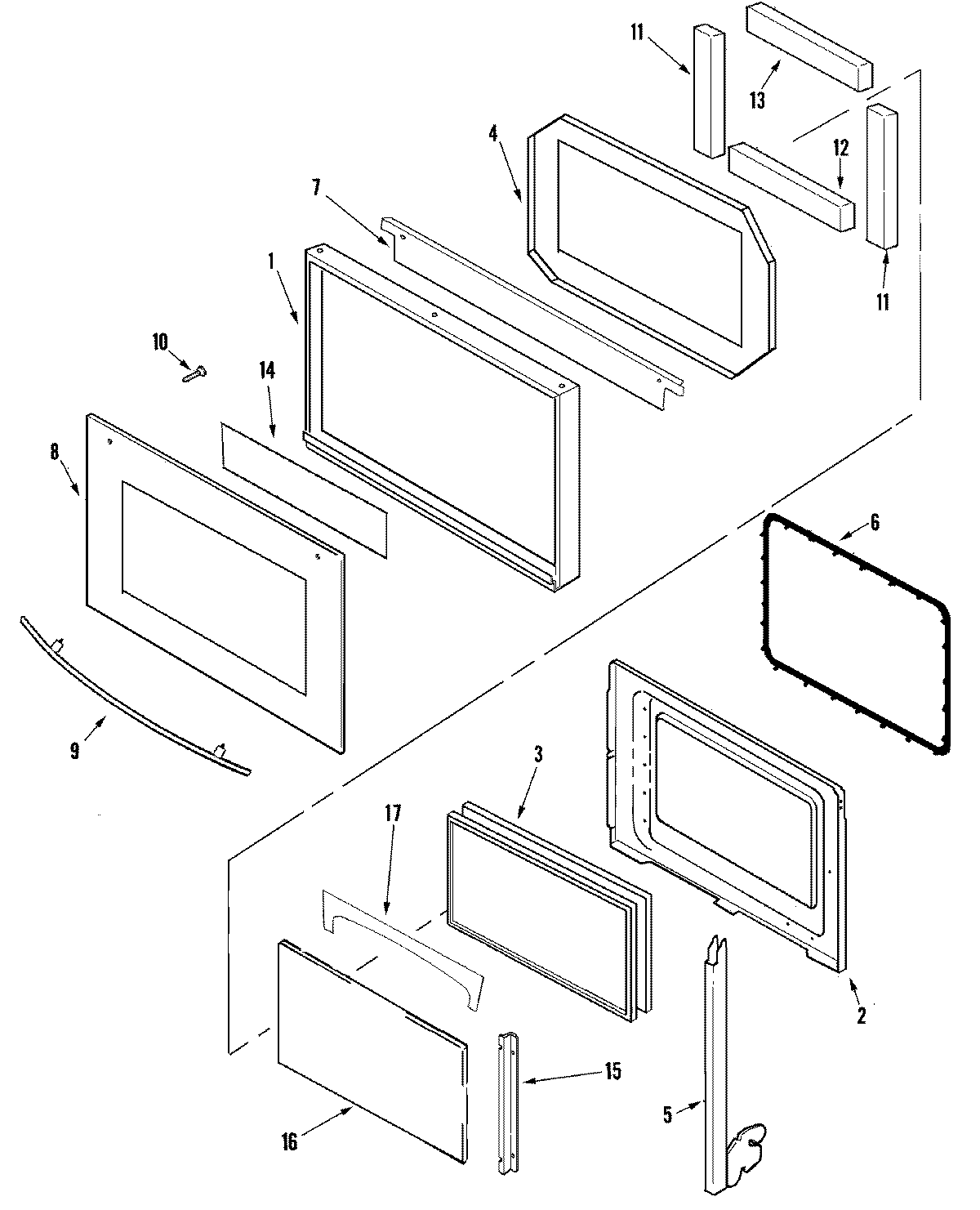

JMW9330DAS 03 – DOOR

JMW9330DAS 03 – DOOR

Written by

in

JMW9330DAS 03 – DOOR

Products

PositionProduct
1WPY706189 Whirlpool Stove Screw
1MAY 74008320
2MAY 74005642
3MAY 74005641
4MAY 74005648
5W10828565 Whirlpool Screw
5WP74008014 Whirlpool Range Oven Door Hinge
6WP71001841 Whirlpool Door Seal
7WP999367 Whirlpool Refrigerator Screw
7MAY 74008284
8MAY 74008308
9MAY 74010854
1074003986 Whirlpool Oven Door Glass Spacer
10MAY 715634
10MAY 74008302
1174008285 Whirlpool Oven Door Insulation (Side)
1274008286 Whirlpool Oven Door Insulation (Bottom)
1374008287 Whirlpool Oven Door Top Insulation
14MAY 74008288
14MAY 74008297
14MAY 74008300
15WP90767 Whirlpool Screw
15MAY 74003650
16MAY 74008289
17MAY 74008859
