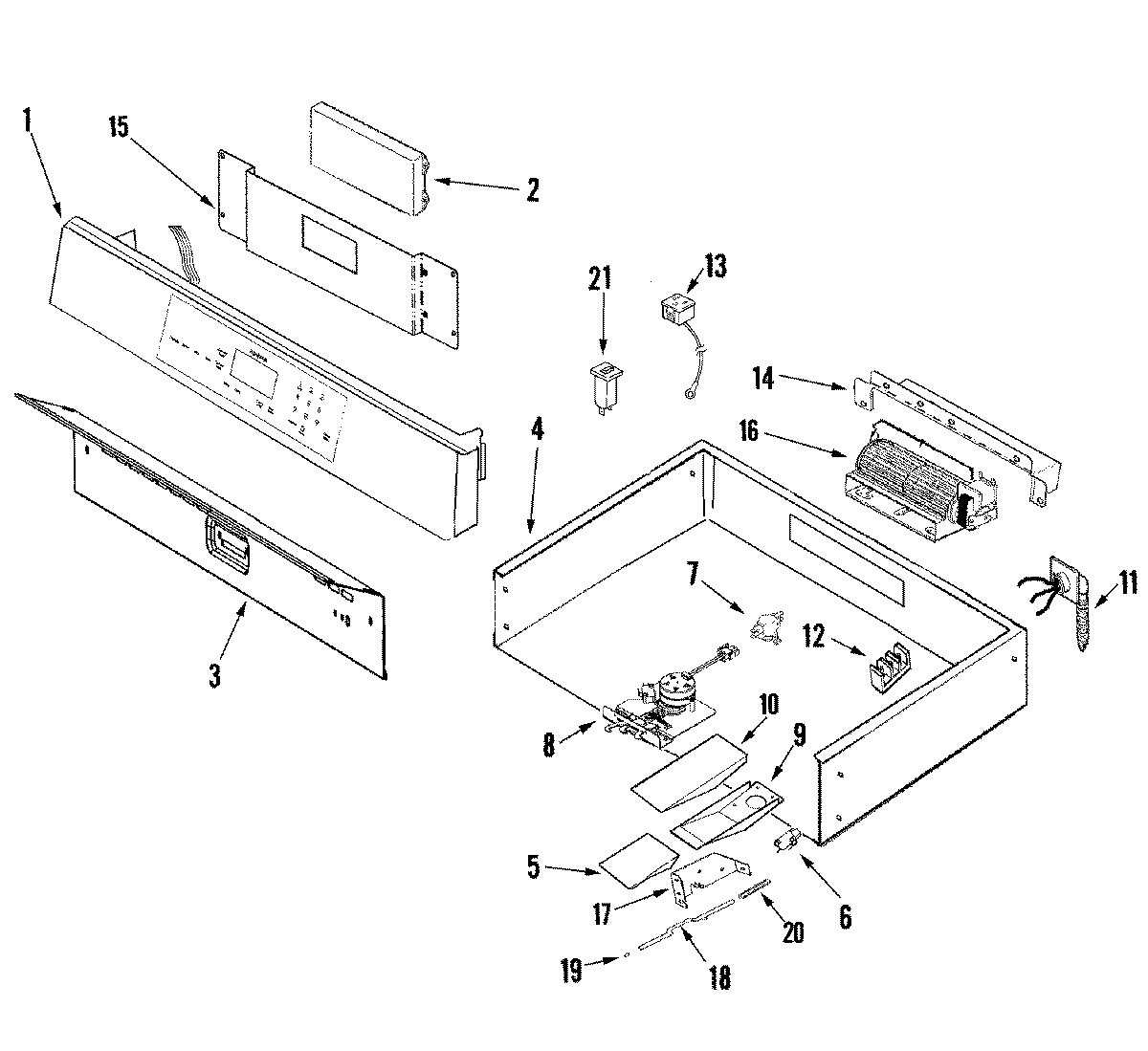

JMW9330DAW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	5765M487-60 Whirlpool Control Panel
1	MAY 74008268
2	MAY 74008952
3	MAY 74008261
4	MAY 74008262
5	MAY 71001843
6	SWTCH-LITE
6	WP74008263 Whirlpool Door Switch
6	MAY 74008264
7	WP90767 Whirlpool Screw
7	74008265 Whirlpool Oven High Limit Thermostat
8	MAY 7101P330-60
8	WPW10186996 Whirlpool Door Latch
9	MAY 74008294
10	MAY 71001847
11	MAY 74009005
11	MAY 74004222
12	WPW10245259 Whirlpool Terminal Block
12	MAY 7417P017-60
12	SCREW, GROUND (GRN)
12	KIT, HARDWARE ADAPTER
13	MAY 701704
14	MAY 74008330
15	MAY 74008299
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74001631
21	WP71002286 Whirlpool Circuit Breaker
