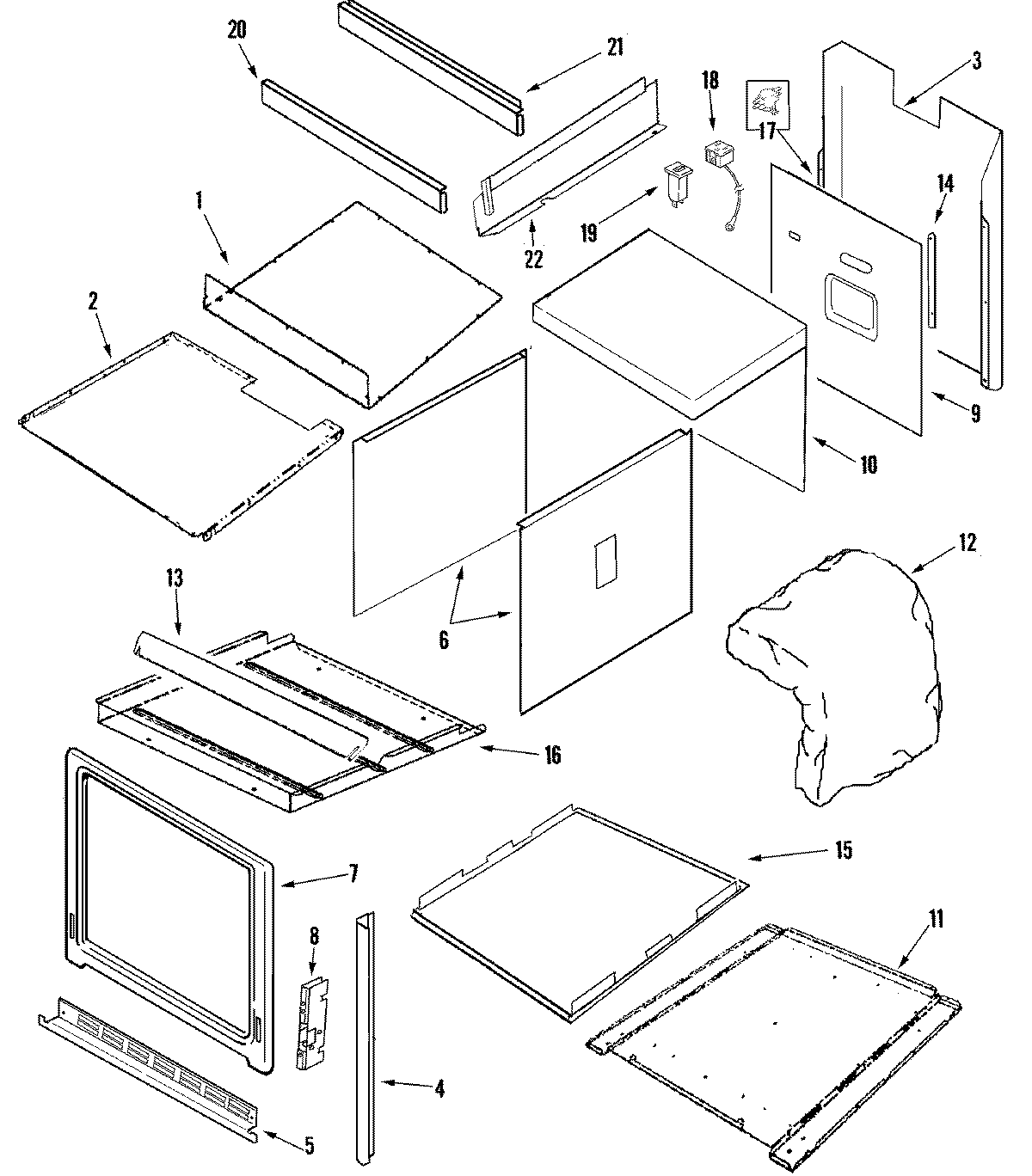

JMW9527DAS 01 – BODY

Products

PositionProduct
1MAY 74008366
2MAY 74008368
2PNL, TOP RETAINER
3MAY 74008365
4MAY 74008363
4MAY 12002402
5MAY 74008364
5WPY706189 Whirlpool Stove Screw
6MAY 74008381
7MAY 74008373
8WP74011337 Whirlpool Bracket
812002489 Whirlpool Dishwasher Hinge and Receptacle Kit
8SCREW (10-24X5/16-NI)
9MAY 74008357
10MAY 74008380
11MAY 74008370
12MAY 74008379
13MAY 74008372
14MAY 74008358
15MAY 74008352
16MAY 74008356
17WP7403P899-60 Whirlpool Safety Switch
17MAY Y702548
18MAY 701704
19WP71002286 Whirlpool Circuit Breaker
20MAY 74008578
21MAY 74008582
22MAY 74008580
22MAY 74008581
22WP90767 Whirlpool Screw
