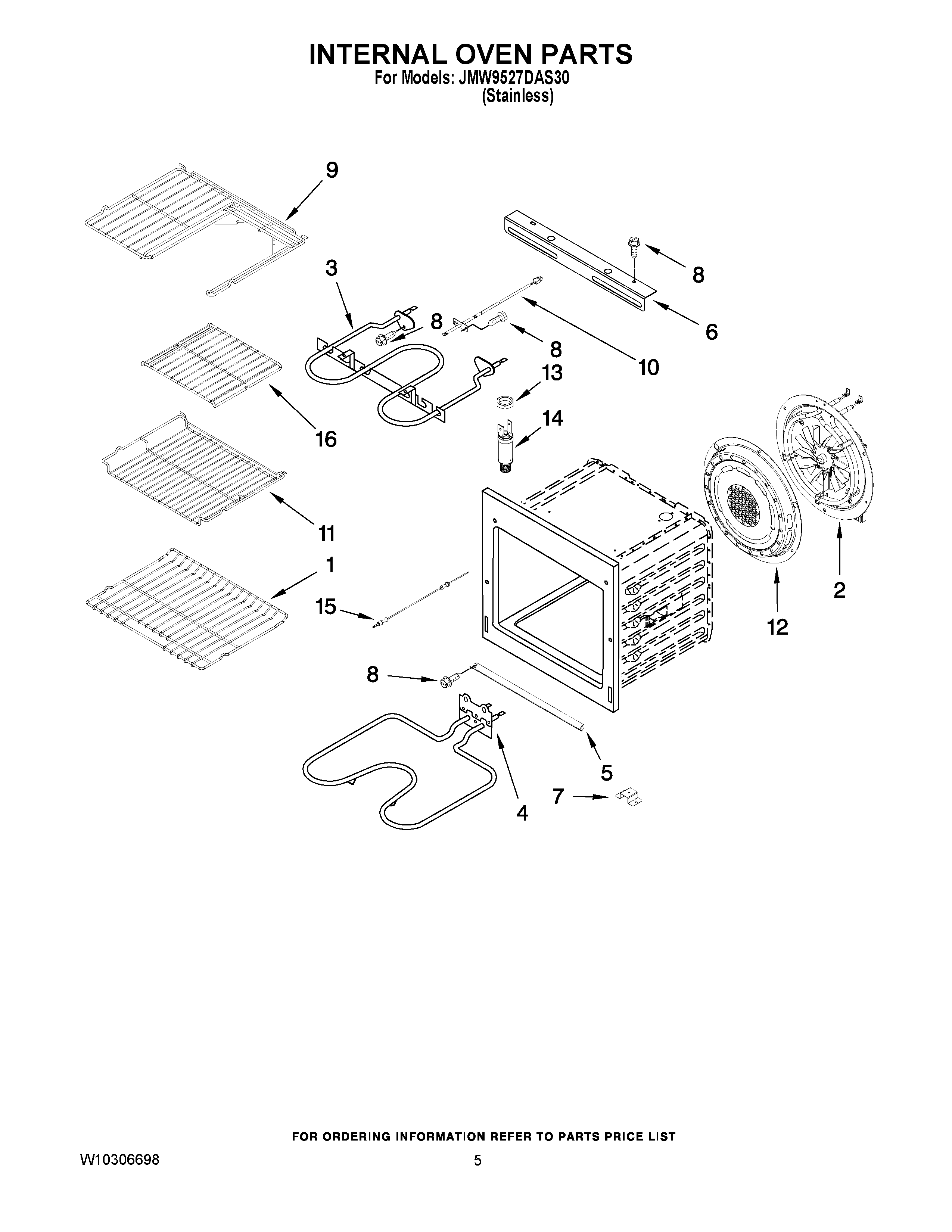

JMW9527DAS30 03 – INTERNAL OVEN PARTS
Written by
in
JMW9527DAS30 03 – INTERNAL OVEN PARTS
Products
Position
Product
1
MAY 7801P129-60
2
ASSY., CONVECT FAN
3
MAY W10184147
4
MAY 7406P322-60
5
MAY 3807F678-45
6
SUPPORT, BROIL ELEMENT
7
MAY 3801F823-51
8
MAY 7101P426- 60
9
MAY 7901P138-60
10
MAY 7430P043-60
11
MAY W10275562
12
MAY 3605F336-19
13
NUT
14
RECEPTACLE, MEAT PROBE
15
MAY 7430P038-60
16
MAY 7801P141-60
←
