JNM1731DMBB01 MICROWAVE

JNM1731DMBB01 MICROWAVE

Written by

in

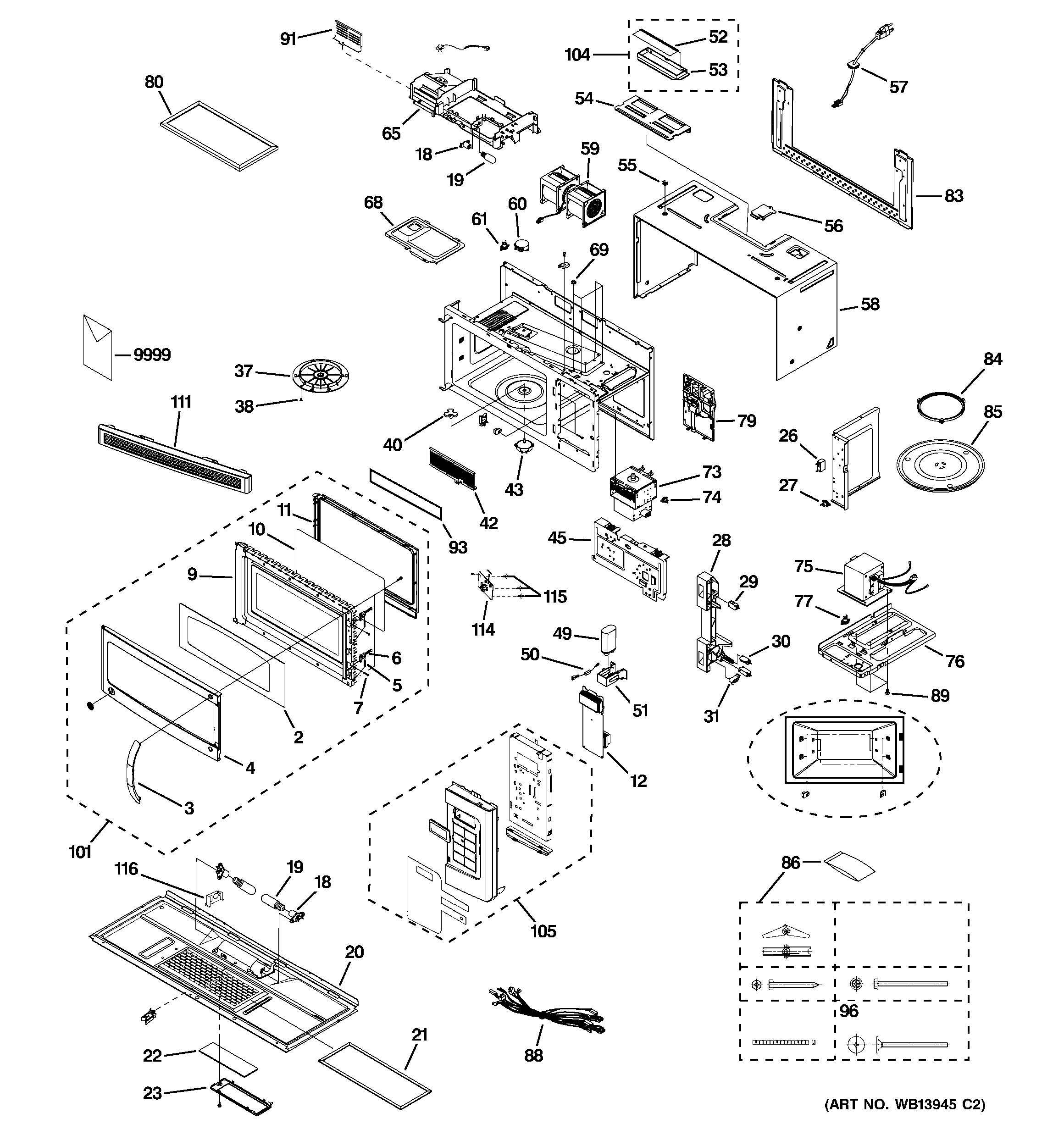

JNM1731DMBB01 MICROWAVE

Products

PositionProduct
2GEN WB36X10334
3WB15X10223 GE Oven Door Handle
4GEN WB55X10858
5GEN WB05X10006
6GEN WB05X10007
7WB06X10060 GE Oven Hinge Pin
9GEN WB55X10859
10GEN WB36X10068
11GEN WB55X10860
12GEN WB27X10933
18WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19WB36X10003 GE Oven 40W 130V Light Bulb
20WB56X10718 GE Oven Bottom Base
21WB06X10596 GE Grease Filter Replacement
22WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
23WB36X10216 GE Oven Glass Cover
26WB27X10170 GE Oven Capacitor
27GEN WB27X10194
28MICROWAVE LATCH BODY
29WB24X829 GE Oven Microwave Secondary Micro Switch
30WB24X830 GE Oven Door Switch
31LEVER-S/W
37GEN WB06X10130
38BUTTON-LOCK
40GEN WB06X10144
42GEN WB06X10132
43M/W TURNTABLE MOTOR
45GEN WB06X10147
49WB27X10011 GE Microwave Capacitor
50WB27X10597 GE Oven Diode
51GEN WB06X10118
52WB06X10129 GE Oven Damper Cover
53WB06X10436 GE Oven Hood Damper Assembly
54GEN WB06X10165
55WB01X10071 GE Oven Holder Assembly
56GEN WB06X10122
57GEN WB18X10200
58GEN WB56X10719
59MOTOR-VENTILATION
60WB26X10037 GE Oven Stirrer Motor
61WB27X10195 GE Oven Thermostat
65GEN WB27X10422
68BRACKET-DUCT UPPER ASM
69WB01X10065 GE Oven Flange Nut
73WB27X10880 GE Oven Magnetron
74GEN WB27X10166
75WB27X10868 GE Oven High Voltage Transformer
76GEN WB56X10212
77WB27X1127 RANGE THERMAL FUSE
79WB26X10105 GE Oven Fan Motor Assembly
80GEN WB06X10137
83GEN WB56X10260
84GEN WB06X10145
85WB39X10003 GE Oven Microwave Glass Cooking Tray
86GEN WB01X10181
88GEN WB18X10376
89WB01X10084 GE Oven Washer Screw
91GEN WB06X10434
93COOKING GUIDE-LABEL
96WB01X10180 GE Oven Flat Bolt
101WB56X10720 GE Oven Door Assembly, Black
105GEN WB07X11033
111GEN WB07X11034
114WB02X11200 GE Noise Filter Assembly
115WB4X175 GE Oven Printed Circuit Board Support
116GEN WB02X11265
9999GEN 31-40058
9999GEN 49-40538
9999GEN 49-40539
9999GEN 49-40536
