JNM1731DP2CC MICROWAVE

JNM1731DP2CC MICROWAVE

Written by

in

JNM1731DP2CC MICROWAVE

Products

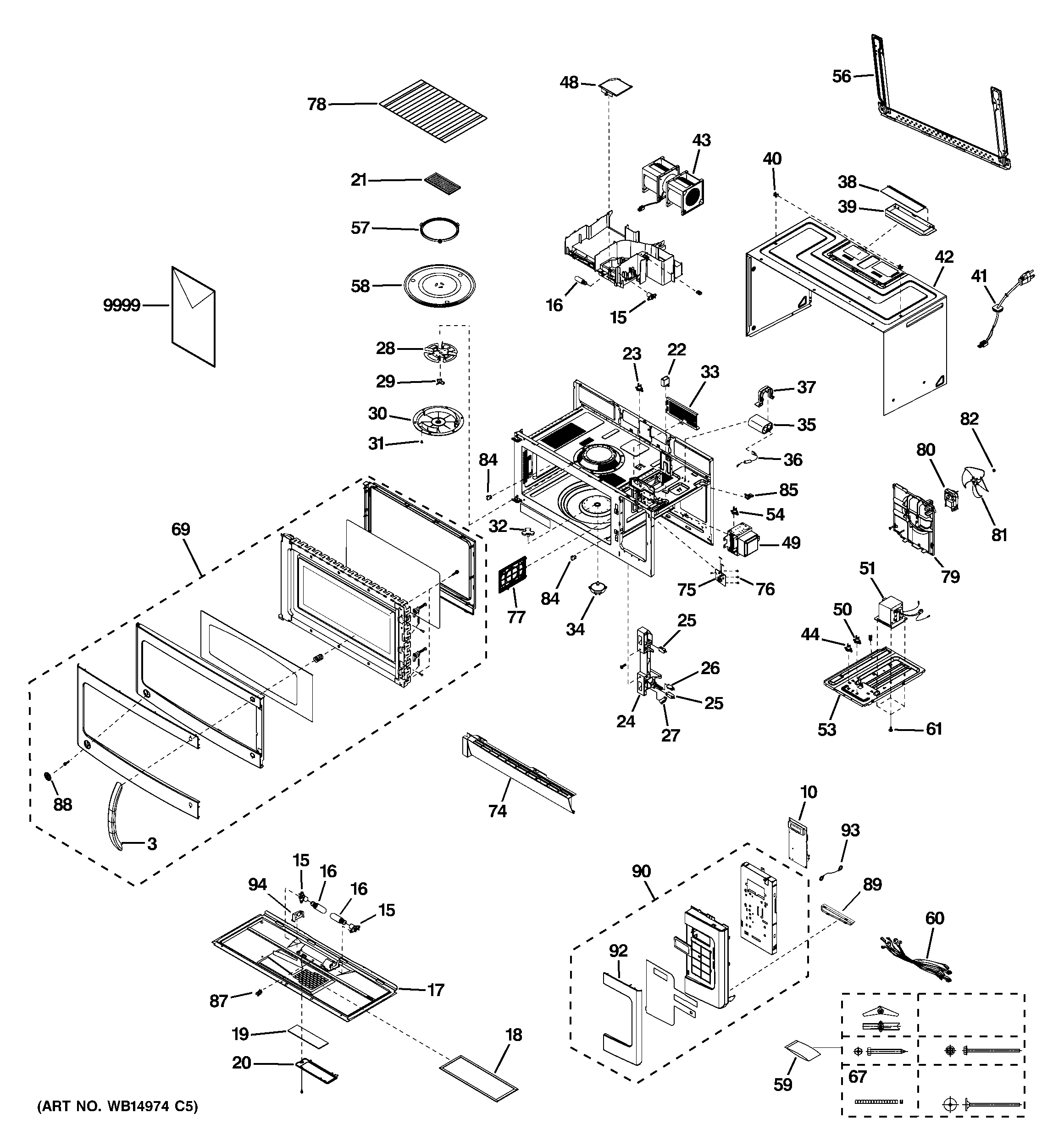

Position	Product
3	GEN WB15X10250
3	GEN WB15X10249
3	GEN WB15X10248
10	GEN WB27X11081
15	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
16	WB36X10003 GE Oven 40W 130V Light Bulb
17	GEN WB56X10721
17	WB56X10718 GE Oven Bottom Base
18	WB06X10596 GE Grease Filter Replacement
19	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
20	WB36X10216 GE Oven Glass Cover
20	WB36X10217 GE Oven Glass Cover
21	GEN WB06X10823
22	WB27X10170 GE Oven Capacitor
23	WB27X11094 GE Oven TCO Assembly
24	MICROWAVE LATCH BODY
25	WB24X829 GE Oven Microwave Secondary Micro Switch
26	WB24X830 GE Oven Door Switch
27	LEVER-S/W
28	WB06X10812 GE Oven Stirring Blade
29	WB06X10813 GE Oven Stirrer Holder
30	WB06X10814 GE Oven Stirrer Cover
31	BUTTON-LOCK
32	COUPLER
33	WB27X32205 GE Oven Dorian Gray Overlay and Controller
34	TURNTABLE MOTOR
35	WB27X10011 GE Microwave Capacitor
36	WB27X10597 GE Oven Diode
37	WB06X10713 GE HVAC Bracket
38	GEN WB06X10715
39	WB06X10436 GE Oven Hood Damper Assembly
40	WB01X10071 GE Oven Holder Assembly
41	WB18X10442 GE Oven Power Cord Assembly
42	GEN WB56X10993
42	GEN WB56X10992
42	GEN WB56X10991
43	GEN WB26X10234
44	WB27X709 GE Oven Thermostat Vent
48	WB06X10817 GE Oven Lamp Cover
49	MAGNETRON ASM
50	WB21X10162 GE Microwave Thermal Cut-Off Bottom
51	WB20X10043 GE Oven High Voltage Transformer
53	GEN WB56X10896
54	TCO – MAGNETRON
56	WB56X10446 GE Oven Mounting Plate Bracket
57	WB06X10818 GE Oven Guide Roller
58	WB49X10224 GE Oven Cooking Tray
59	WB06X10889 GE Oven Mounting Kit
60	GEN WB18X10443
61	WB01X10084 GE Oven Washer Screw
67	WB01X10180 GE Oven Flat Bolt
69	GEN WB56X10901
69	GEN WB56X10897
69	WB56X10899 GE Oven Door Assembly
74	GEN WB07X11270
74	GEN WB07X11272
74	GEN WB07X11268
75	WB02X11200 GE Noise Filter Assembly
76	WB4X175 GE Oven Printed Circuit Board Support
77	WB06X10822 GE Oven Mounting Cover
78	GEN WB48X10070
79	WB34X21786 GE Motor Cover
80	GEN WB26X10265
81	GEN WB26X10090
82	WB09X10042 GE Oven Spring Blade
84	GEN WB06X10824
85	WB06X10819 GE Wire Holder
87	WB01X10408 GE Saddle Wire
88	GEN WB03X10306
89	GEN WB56X10929
90	GEN WB07X11271
90	GEN WB07X11269
90	GEN WB07X11273
92	GEN WB06X10821
92	GEN WB06X10820
92	GEN WB06X10825
93	WB18X10122 GE Oven Wire GND Printed Circuit Board
94	GEN WB02X11265
9999	GEN 31-41078
9999	GEN 31-41031
9999	GEN 49-40614
9999	GEN 49-40539
9999	GEN 49-40616-1?
