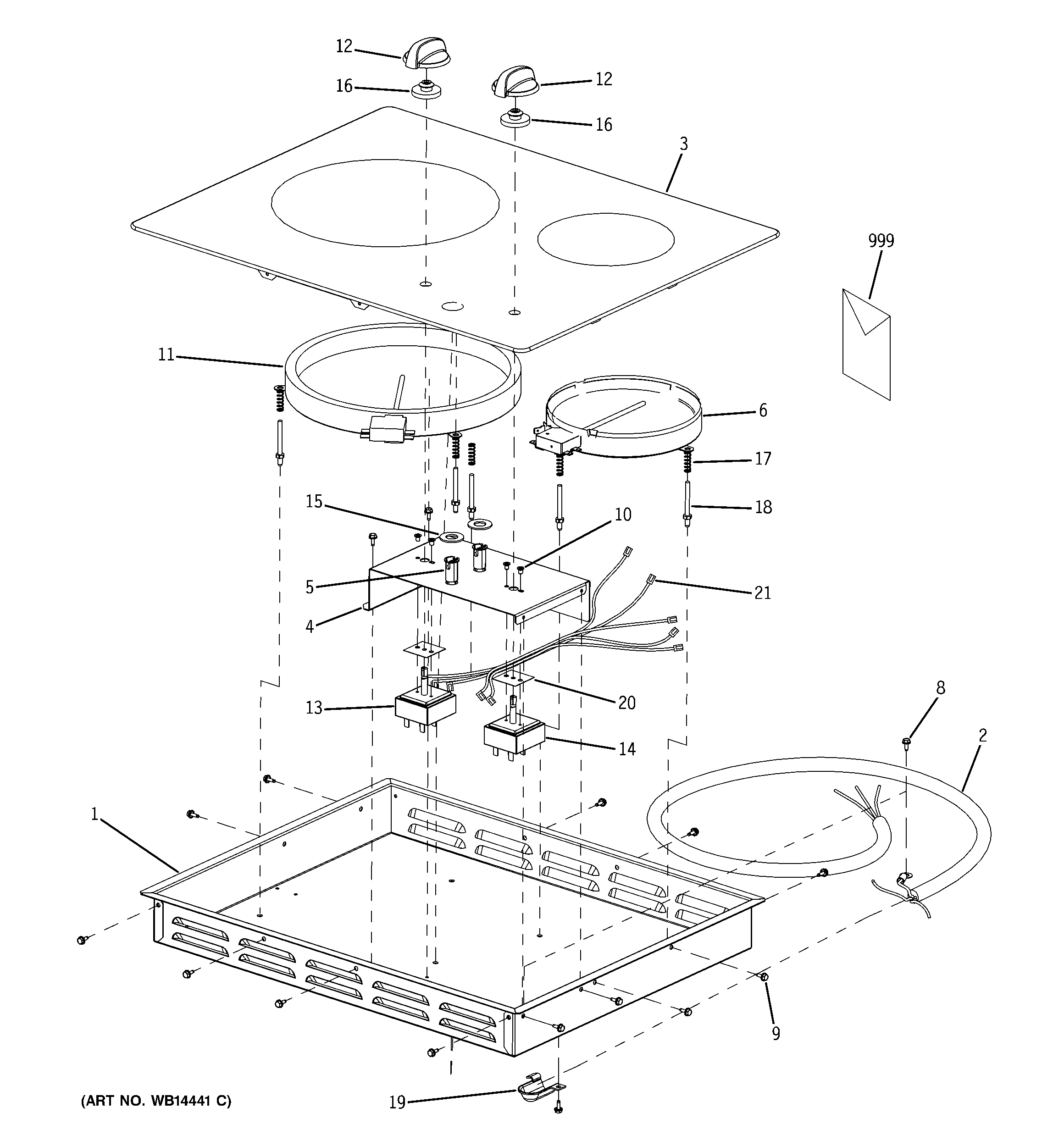

JP256WL1WW CONTROL PANEL & COOKTOP

Products

Position	Product
1	CHASSIS
2	WIRE HARNESS, CONDUIT
3	ASSEMBLY, GLASS TOP WH
4	WIRE BOX
5	WB25X10017 GE Oven Lamp 24V 1/2W
6	BURNER 6 "
8	WB01X10356 GE Large Screw
9	WB01X10172 GE Oven Screw #8 - 18 x 3/8"
10	SCREW
11	WB30X43559 GE Surface Element Radiant
12	WB03T10282 GE Oven Infinite Knob (White)
13	SWITCH CONTROL
14	WB24T10063 GE Range Cooktop Infinite Burner Switch
15	WB01X10358 GE Lamp Seal
16	WB35X28480 GE Glass and Shaft Seal
17	WB09X10033 GE Stainless Spring
18	STUD
19	CLAMP ELECTRICAL CONDUIT
20	WB01X10360 GE Control Seal
21	WB18X10399 GE Internal Wire Harness
999	GEN 31-14654
999	OWNERS MANUAL
