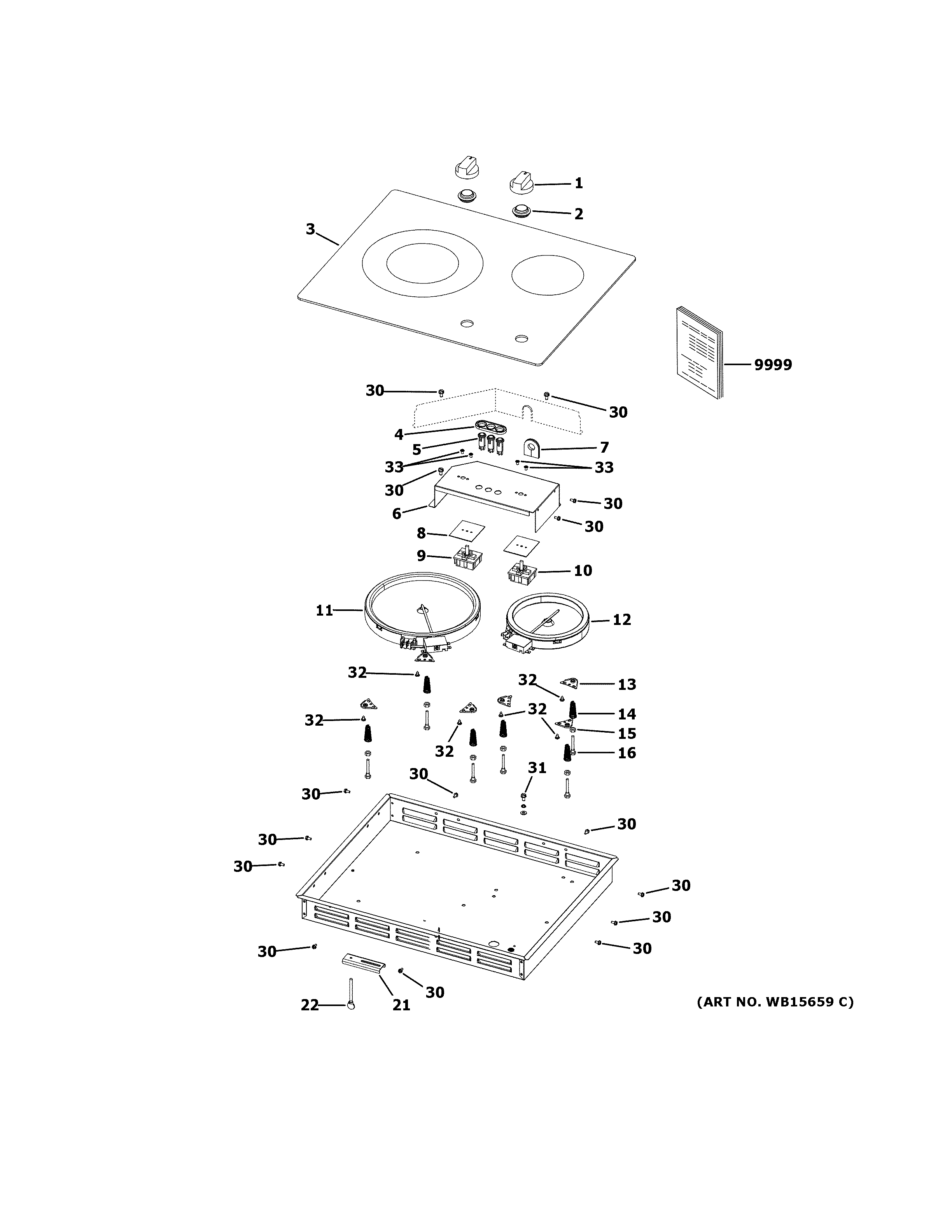

JP3021DP1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB03X37209 GE Knob Assembly
2WB35X30112 GE Gasket Knob
3WB03X37218 GE Black Glass Top
4SEAL, LAMP
5LAMP, 250VAC 50/60Hz 0.5W (max)
6WIRE BOX
7CLIP
8INFINITE SWITCH GASKET
9DUAL SWITCH, INFINIT
10SWITCH, INFINITE
11ELEMENT RADIANT 9" DUAL
12ELEMENT RADIANT 6"
13RADIANT ELEMENT BRACKET
14SPRING, STAINLESS
15HEX NUT
16STUD
21INSTALLATION BRKT, HOLD
22SCREW, HOLD DOWN
30SCREW ST4 2X8
31GROUND SCREW
32SCREW, ELEMENT
33SCREW, THERMOSTAT
9999PM MINI MANUAL AND WIRING
9999PM OWNERS AND INSTALL
