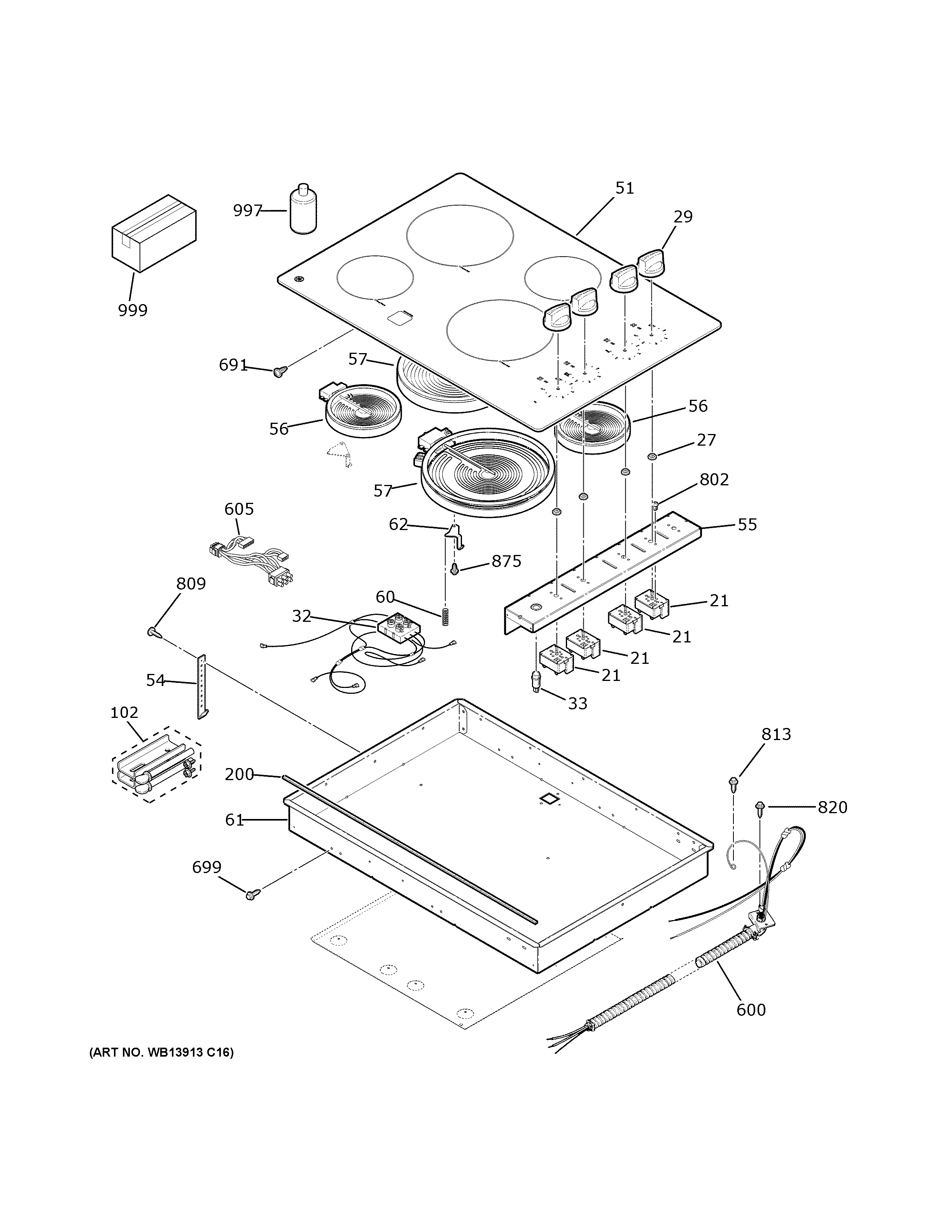

JP3030DJ4BB CONTROL PANEL & COOKTOPadmin2025-04-26T08:45:12+00:00JP3030DJ4BB CONTROL PANEL & COOKTOP ProductsPositionProduct21INFINTE SWITCH / SEAL KIT27INFINITE CONTROL SEAL29WB03X29629 GE Oven Knob Black32WB18T10349 GE Oven Module Indicator Light33WB25T10012 GE Oven Indicator Light51FRAME MAINTOP ASM54WB2K5328 GE Oven Hold Down Bracket55BRACKET INF SWITCH56WB30T10145 GE Oven Radiant Surface Element57WB30T10136 GE Oven 8" Halogen Element60WB09X40389 GE Radiant Element Spring61WB63X24094 GE Burn Box Bottom62WB02X20902 GE Range Radiant Element Bracket102WB01X24570 GE Oven Installation Kit200WB02X26088 GE Oven Foam Tape200WB02X21898 GE Dishwasher Tape600WB18X32525 GE Wire Conduit Assembly605WB18X32535 GE Oven Right Infinite Wire Harness605WB18X32523 GE Oven Infinite Load Wire Harness605WB18X32536 GE Oven Left Harness Wire605WB18X32558 GE Oven Right Mantop Harness Wire691WB01X24092 GE Oven Screw 8-18699WB01X24096 GE Screw 8-18X802WB01T10053 GE Oven 8-32 TPT FLR Screw809WB1X1137 GE Oven Screw813WS02X10087 GE Screws 10-32 GX HXW 7/16 S820WB01M10002 GE Oven Screw875WH2X930 GE Screw997PM10X310 GE Cerama Bryte Cooktop Cleaner999PM OWNERS MANUAL999PM MANUAL MINI & WD ASM999PM INSTALL INSTRUCTIONS
