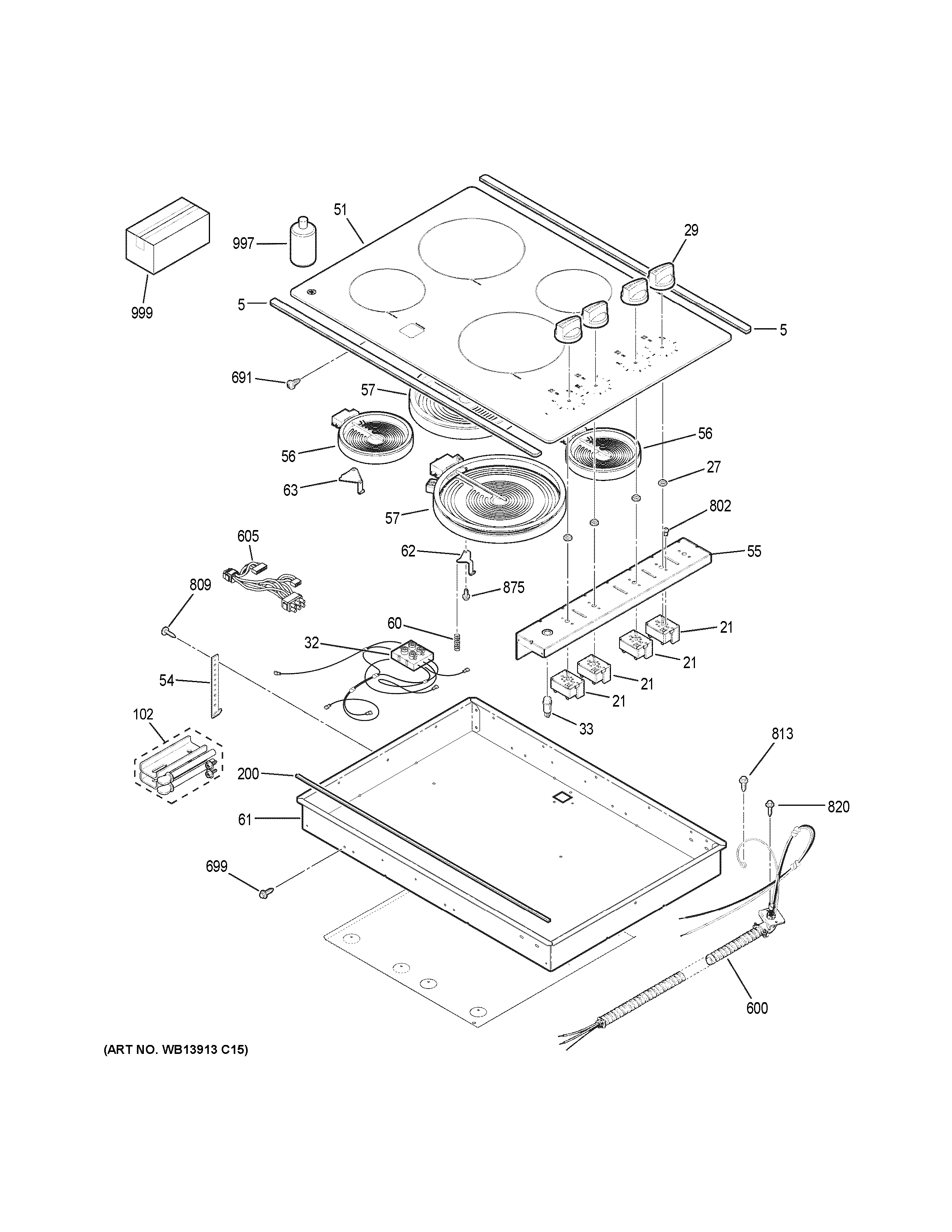

JP3030SJ3SS CONTROL PANEL & COOKTOP

JP3030SJ3SS CONTROL PANEL & COOKTOP

Written by

in

JP3030SJ3SS CONTROL PANEL & COOKTOP

Products

PositionProduct
5TRIM ASM
21INFINTE SWITCH / SEAL KIT
27INFINITE CONTROL SEAL
29WB03X29631 GE Oven Stainless Steel Knob
32WB18T10349 GE Oven Module Indicator Light
33WB25T10012 GE Oven Indicator Light
51WB62X24097 GE Oven Maintop Glass and Frame
54WB2K5328 GE Oven Hold Down Bracket
55BRACKET INF SWITCH
56WB30T10145 GE Oven Radiant Surface Element
57WB30T10136 GE Oven 8" Halogen Element
60WB09X40389 GE Radiant Element Spring
61WB63X24094 GE Burn Box Bottom
62WB02X20902 GE Range Radiant Element Bracket
63BRACKET RADIANT ELEMENT
102WB01X24570 GE Oven Installation Kit
200WB02X26088 GE Oven Foam Tape
600WB18X32525 GE Wire Conduit Assembly
605WB18X32536 GE Oven Left Harness Wire
605WB18X32523 GE Oven Infinite Load Wire Harness
605WB18X32535 GE Oven Right Infinite Wire Harness
605WB18X32558 GE Oven Right Mantop Harness Wire
691WB01X24092 GE Oven Screw 8-18
699WB01X24096 GE Screw 8-18X
802WB01T10053 GE Oven 8-32 TPT FLR Screw
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
820WB01M10002 GE Oven Screw
875WH2X930 GE Screw
997PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
