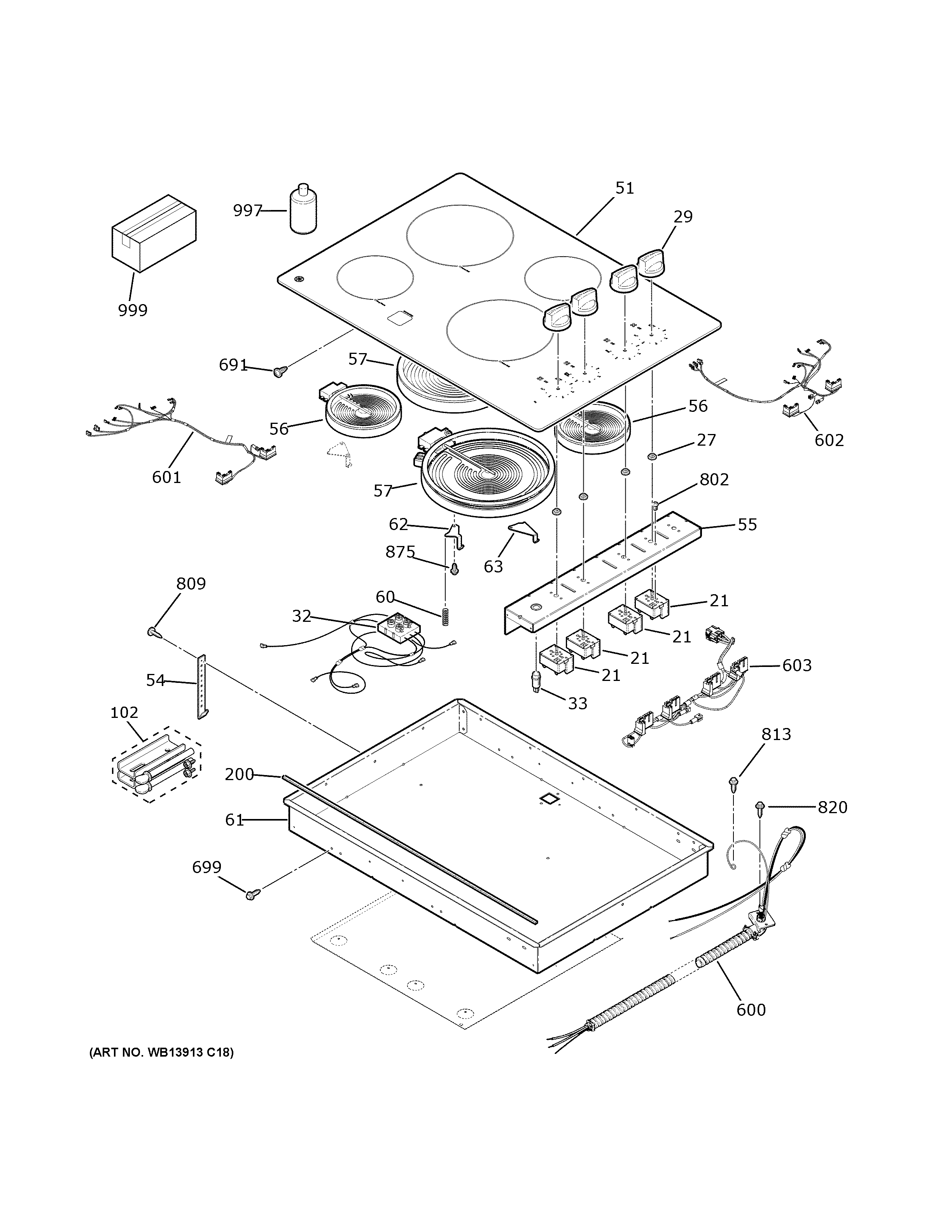

JP3030TW2WW CONTROL PANEL & COOKTOP

JP3030TW2WW CONTROL PANEL & COOKTOP

Written by

in

JP3030TW2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
21INFINITE SWITCH CONTROL
27WB02X40330 GE Seal Infinite Control
29WB03X29630 GE Oven White Knob
32WB18T10349 GE Oven Module Indicator Light
33WB25T10012 GE Oven Indicator Light
51FRAME MAINTOP ASM
54WB2K5328 GE Oven Hold Down Bracket
55BRACKET INF SWITCH
56WB30T10145 GE Oven Radiant Surface Element
57WB30T10136 GE Oven 8" Halogen Element
60WB09X40389 GE Radiant Element Spring
61WB63X24094 GE Burn Box Bottom
62WB02X20902 GE Range Radiant Element Bracket
63RADIANT ELEMENT BRACKET
102WB01X24570 GE Oven Installation Kit
200WB02X21898 GE Dishwasher Tape
200WB02X26088 GE Oven Foam Tape
600WB18X32525 GE Wire Conduit Assembly
601MAINTOP WIRE HARNESS LT
602MAINTOP WIRE HARNESS RT
603WIRE HARNESS INFINITE
691WB01X24092 GE Oven Screw 8-18
699WB01X24096 GE Screw 8-18X
802WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
820WB01M10002 GE Oven Screw
875WH2X930 GE Screw
997PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PRINTED AND ONLINEMINI MANUAL AND WIRING
