JP3332L1 0 – Aparts

JP3332L1 0

Products

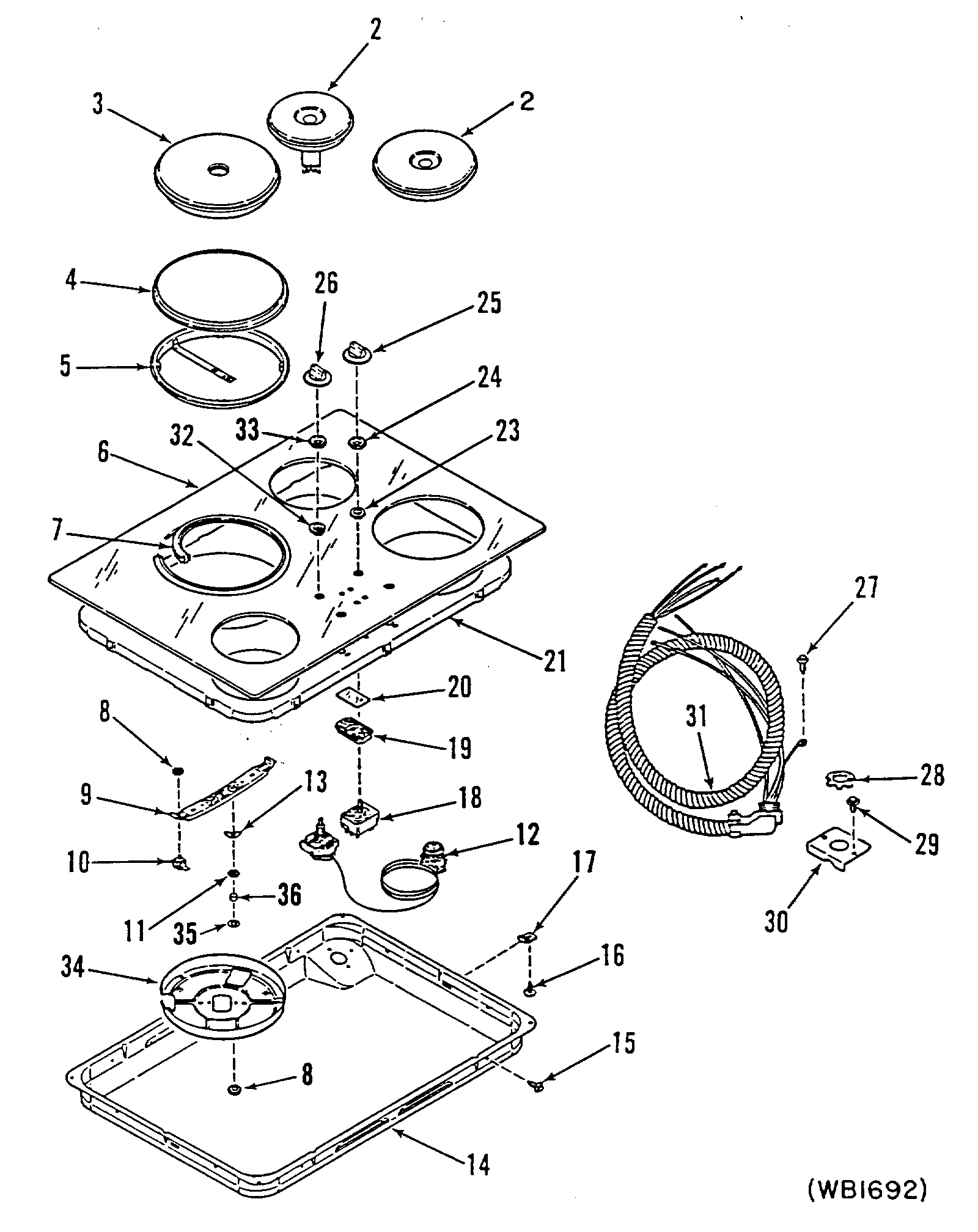

Position	Product
1	GEN 49-4958
1	GEN 31-0831
2	HOB ELEMENT
2	GEN WB30X0260
3	HOB ELEMENT 9"
4	GEN WB32X0118
4	GEN WB32X0117
4	GEN WB32X0119
5	GASKET RING 7"
5	GASKET RING 9"
5	GASKET RING 6"
6	GEN WB62X1707
7	ELEMENT SEAL 6" GRAY
7	ELEMENT SEAL 9" GRAY
7	ELEMENT SEAL 7" GRAY
8	M4 NUT
9	ELEMENT CLAMP-LF, RR, RF
9	ELEMENT CLAMP-LR
10	GEN WB21X0498
11	GEN WB01X1393
12	GEN WB21X0499
13	GEN WB01X1306
14	GEN WB63X0360
15	GEN WB01X1113
16	GEN WB01X1307
17	GEN WB02X9516
18	GEN WB23M0022
18	GEN WB23X0092
19	GEN WB25X0097
20	GEN WB36X0770
21	GEN WB63X0361
23	GEN WB02X9866
24	GEN WB01X1308
25	GEN WB03X0820
26	GEN WB03X0822
27	WB1X1261 GE Oven Screw
28	NUT
30	WB2X9867 GE Oven Condenser Plate
31	CONDUIT/HARNESS ASSEMBLY
32	GEN WB02X9868
33	M16 HEX NUT
34	HOB ELEMENT CLAMP 6"
34	HOB ELEMENT CLAMP 9"
34	GEN WB02X9869
35	GEN WB01X1140
36	GEN WB02X9872
