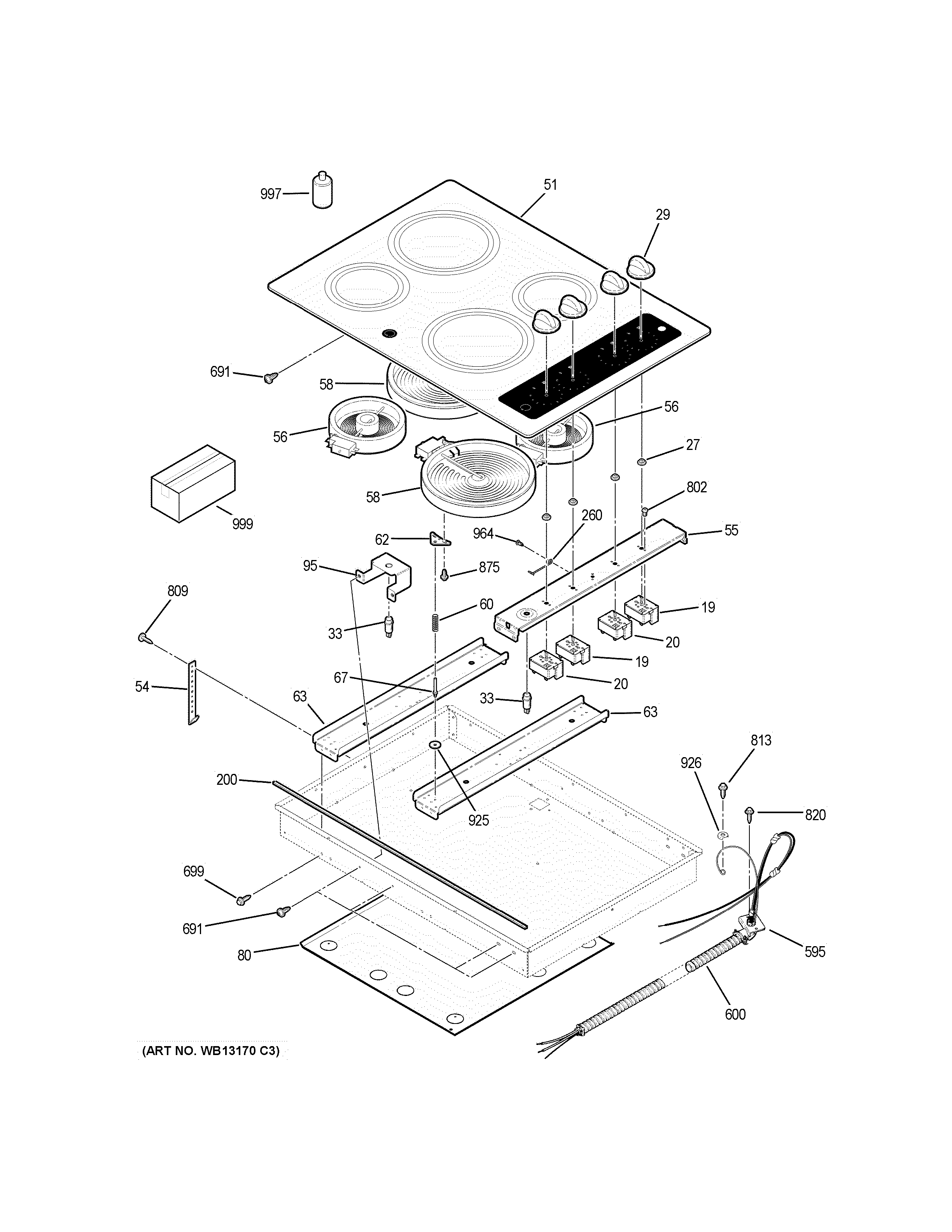

JP340BC1BB CONTROL PANEL & COOKTOP

JP340BC1BB CONTROL PANEL & COOKTOP

Written by

in

JP340BC1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
19WB23M9 GE Oven Control Element
20WB23M8 GE Oven Control Element
27INFINITE CONTROL SEAL
29WB03T10025 GE Oven Black Burner Knob
33GEN WB25K5014
51GLASS MAINTOP ASM
54WB2K5328 GE Oven Hold Down Bracket
55GEN WB02T10085
56WB30T10043 GE Oven 6" 1200W Halogen Element
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
60WB09T10005 GE Oven Spring Radiant
62WB2K5318 GE Oven Radiant Heater Bracket
63SUPT ELEMENT BRACKET
67WB2X9502 GE Oven Stud
80SHIELD BURN BOX BTTM
95GEN WB02T10083
200WB06T10007 GE Oven Cooktop Tape
200WB02X26088 GE Oven Foam Tape
260WB02T10086 GE Retainer Wire
595WB2X9867 GE Oven Condenser Plate
600GEN WB18T10150
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
802GEN WB01K5123
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
820WB1X1424D GE Oven Screw Package
875WH2X930 GE Screw
925WB1K5117 GE Oven Washer
926GROUND WASHER
964WB1X1347
997PM10X310 GE Cerama Bryte Cooktop Cleaner
999031-10178
999INSTRUCTION INSTALL
999INSTRUCTION INSTALL
999WIRE DIAGRAM
999MANUAL USE & CARE
