JP340BM2BB CONTROL PANEL & COOKTOP

JP340BM2BB CONTROL PANEL & COOKTOP

Written by

in

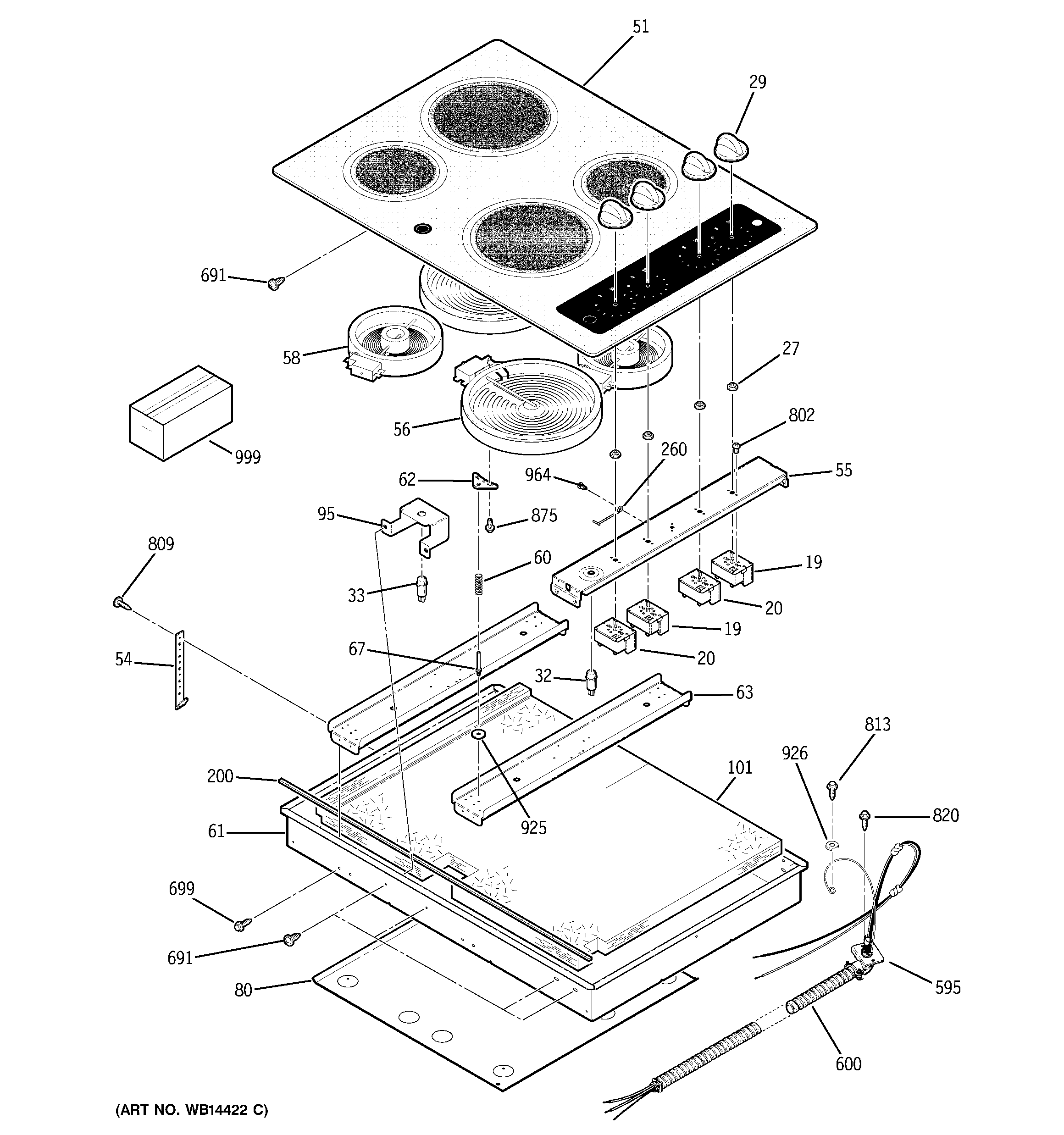

JP340BM2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
19WB23M8 GE Oven Control Element
20WB23M9 GE Oven Control Element
27INFINITE CONTROL SEAL
29KNOB ASM (INFINITE)
32GEN WB25K5014
33WB25T10012 GE Oven Indicator Light
51GEN WB62T10705
54WB2K5328 GE Oven Hold Down Bracket
55GEN WB02T10085
56WB30T10132 GE Oven Radiant Burner
58WB30T10145 GE Oven Radiant Surface Element
60WB09T10005 GE Oven Spring Radiant
61BOTTOM BURN BOX
62WB2K5318 GE Oven Radiant Heater Bracket
63GEN WB02T10334
67WB2X9502 GE Oven Stud
80SHEILD BURN BOX BTM
95GEN WB02T10339
101GEN WB35T10153
200WB06T10007 GE Oven Cooktop Tape
200WB02X26088 GE Oven Foam Tape
260WB1X1347
595WB2X9867 GE Oven Condenser Plate
600GEN WB18T10150
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
802GEN WB01K5123
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
925WB1K5117 GE Oven Washer
926GROUND WASHER
964WB02T10086 GE Retainer Wire
999GEN 31-13229
999GEN 31-10637
999GEN 49-80411
999PM10X310 GE Cerama Bryte Cooktop Cleaner
