JP3530SJ1SS CONTROL PANEL & COOKTOP

JP3530SJ1SS CONTROL PANEL & COOKTOP

Written by

in

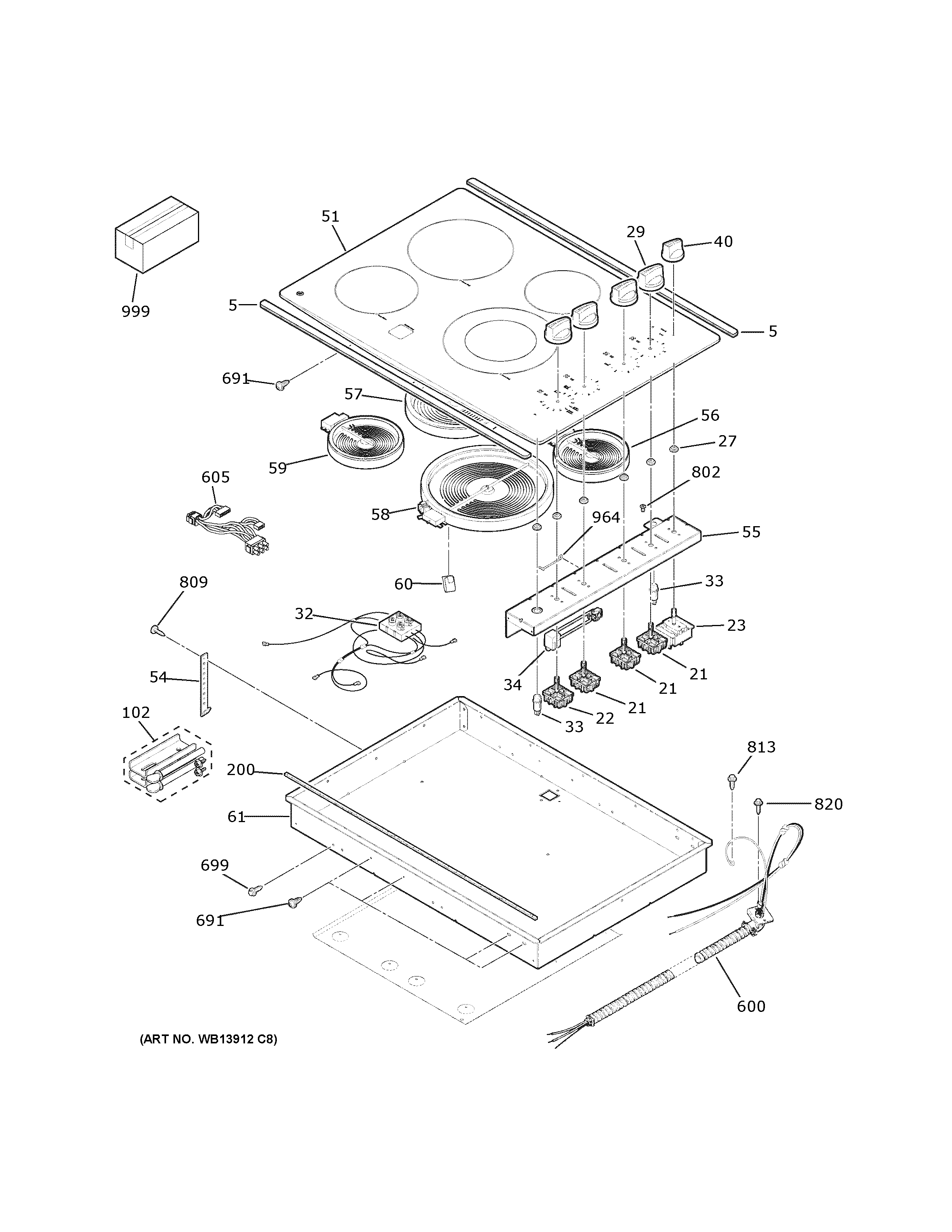

JP3530SJ1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
5TRIM ASM
21INFINTE SWITCH / SEAL KIT
22INFINITE SWITCH AND SEAL KIT
23WB24X24106 GE Oven Lockout Switch
27INFINITE CONTROL SEAL
29WB03X24088 GE Range Stainless Steel Knob
32WB18T10349 GE Oven Module Indicator Light
33WB25T10012 GE Oven Indicator Light
34WB18X24105 GE Oven Buzzer
40WB03T10316 GE Oven Selector Knob
51WB62X24107 GE Oven Glass & Frame Maintop
54WB2K5328 GE Oven Hold Down Bracket
55BRACKET INF SWITCH
56WB30T10145 GE Oven Radiant Surface Element
57WB30T10136 GE Oven 8" Halogen Element
58WB30X24111 GE Oven Dual Radiant Element
59WB30T10129 GE Oven Radiant Element 6 In
60WB09X40389 GE Radiant Element Spring
61WB63X24094 GE Burn Box Bottom
102WB01X24570 GE Oven Installation Kit
200WB06T10007 GE Oven Cooktop Tape
600WB18X24534 GE Oven Wire Conduit Assembly
605WB18X24095 GE Maintop Left Harness Wire
605WB18X24091 GE Infinite Switch Wire Harness
605WB18X32541 GE Oven Right Infinite Harness Wire
605WB18X32543 GE Oven Infinite Harness Wire
605WB18X32554 GE Right Maintop Wire Harness
691WB01X24092 GE Oven Screw 8-18
699WB01X24096 GE Screw 8-18X
802WB01T10053 GE Oven 8-32 TPT FLR Screw
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
820WB1M1 GE Oven Screw
964WB02T10086 GE Retainer Wire
999PM OWNERS MANUAL
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
