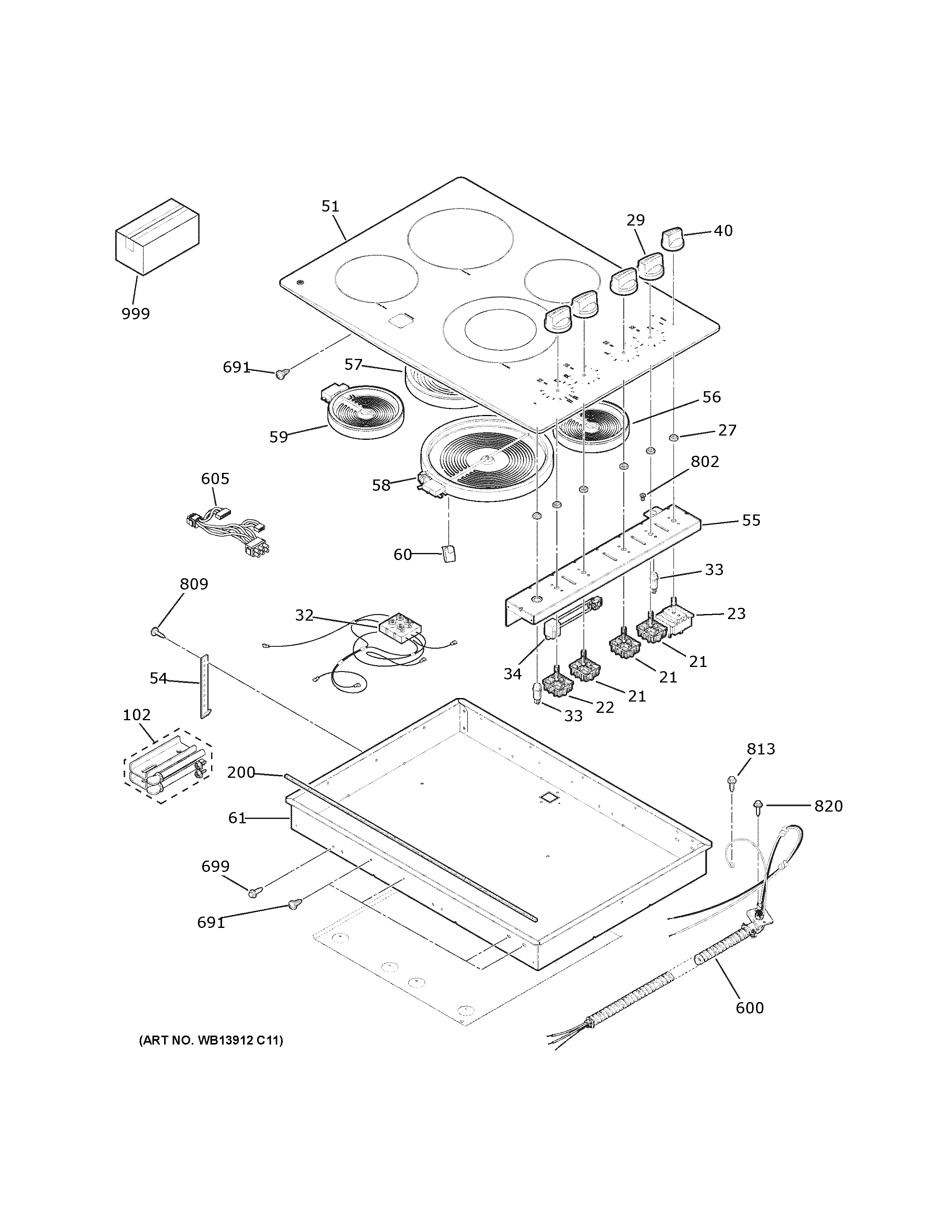

JP3530TJ2WW CONTROL PANEL & COOKTOPadmin2025-04-26T11:56:41+00:00JP3530TJ2WW CONTROL PANEL & COOKTOP ProductsPositionProduct21INFINTE SWITCH / SEAL KIT22INFINITE SWITCH AND SEAL KIT23WB24X24106 GE Oven Lockout Switch27INFINITE CONTROL SEAL29WB03X24102 GE Knob - White32WB18T10349 GE Oven Module Indicator Light33WB25T10012 GE Oven Indicator Light34WB18X24105 GE Oven Buzzer40WB03T10318 GE Oven Selector Knob (White)51WB62X24113 GE Oven Maintop Glass and Frame54WB2K5328 GE Oven Hold Down Bracket55BRACKET INF SWITCH56WB30T10145 GE Oven Radiant Surface Element57WB30T10136 GE Oven 8" Halogen Element58WB30X24111 GE Oven Dual Radiant Element59WB30T10129 GE Oven Radiant Element 6 In60WB09X40389 GE Radiant Element Spring61WB63X24094 GE Burn Box Bottom102WB01X24570 GE Oven Installation Kit200WB02X26088 GE Oven Foam Tape600WB18X32525 GE Wire Conduit Assembly605WB18X32541 GE Oven Right Infinite Harness Wire605WB18X32543 GE Oven Infinite Harness Wire605WB18X32536 GE Oven Left Harness Wire605WB18X32523 GE Oven Infinite Load Wire Harness605WB18X32554 GE Right Maintop Wire Harness691WB01X24092 GE Oven Screw 8-18699WB01X24096 GE Screw 8-18X802WB01X23501 GE Oven Screw 8-32 Tapping Flat Head809WB1X1137 GE Oven Screw813WS02X10087 GE Screws 10-32 GX HXW 7/16 S820WB1M1 GE Oven Screw999PM OWNERS MANUAL999PM MANUAL MINI & WD ASM999PM10X310 GE Cerama Bryte Cooktop Cleaner999PM INSTALL INSTRUCTIONS
