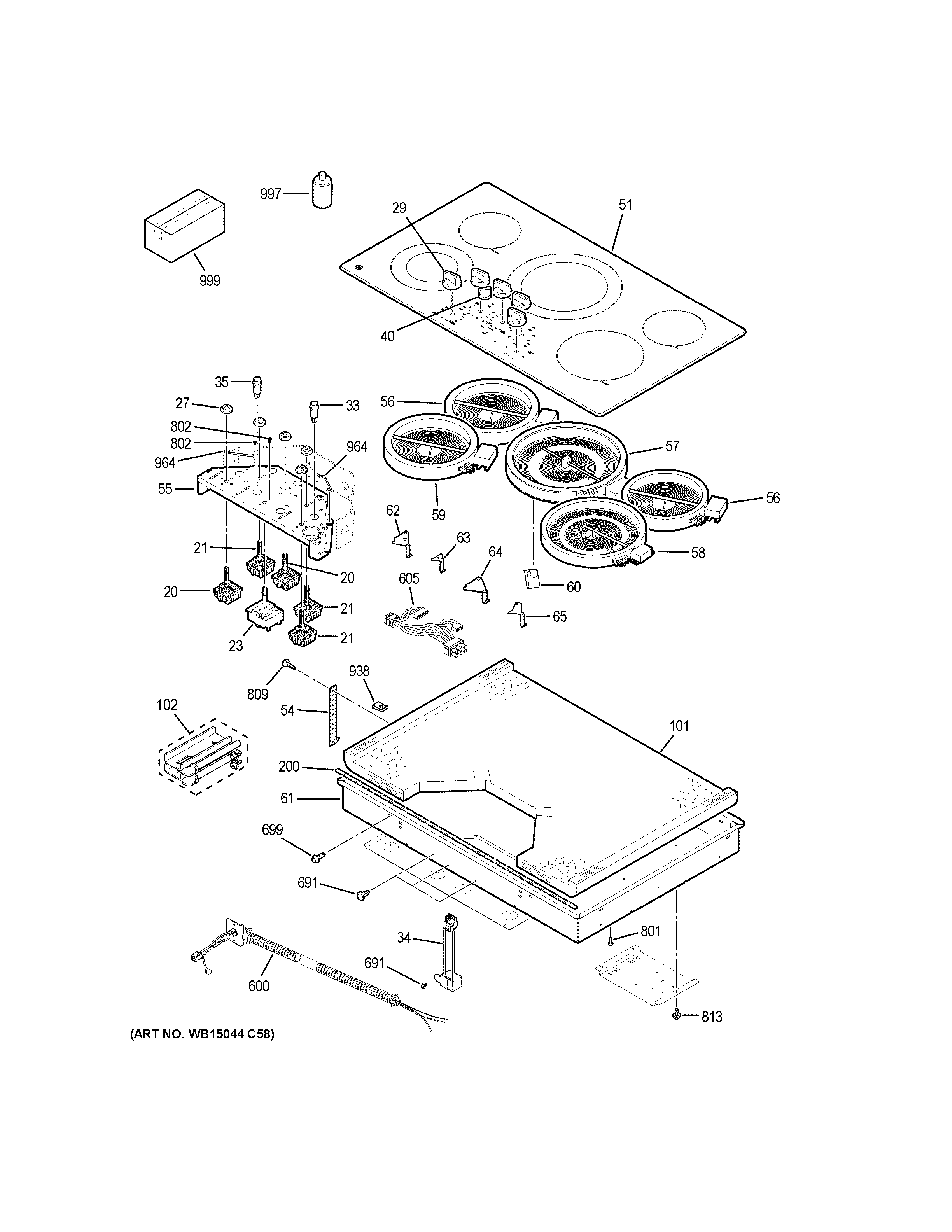

JP3536DJ2BB CONTROL PANEL & COOKTOP

Products

Position	Product
20	INFINITE SWITCH AND SEAL KIT
21	INFINTE SWITCH / SEAL KIT
23	WB24X24106 GE Oven Lockout Switch
27	INFINITE CONTROL SEAL
29	WB03X29629 GE Oven Knob Black
33	WB25T10012 GE Oven Indicator Light
34	WB18X24105 GE Oven Buzzer
35	WB25X24131 GE Oven Lockout Indicator Light
40	WB03X29623 GE Selector Knob
51	WB62X43027 GE Maintop Glass & Frame
54	WB2K5328 GE Oven Hold Down Bracket
55	WB02X24187 GE Inf Switch Bracket
56	WB30T10145 GE Oven Radiant Surface Element
57	WB30T10151 GE Oven Halogen Element
58	WB30T10136 GE Oven 8" Halogen Element
59	WB30T10135 GE Oven Dual Halogen Element
60	WB09X40389 GE Radiant Element Spring
61	BOTTOM BURN BOX
62	WB02X24199 GE Radiant Element Bracket
63	WB02X24195 GE Oven Radiant Element Bracket
64	BRACKET RADIANT ELEMENT
65	WB02X20902 GE Range Radiant Element Bracket
101	WB35X24172 GE Insulation
102	WB01X24570 GE Oven Installation Kit
200	WB02X26088 GE Oven Foam Tape
600	CONDUIT WIRE ASM
605	WB18X32544 GE Power Wire Harness
605	WB18X32519 GE Oven Main Left Wire Harness
605	WB18X32532 GE Oven Main Wire Harness
605	WB18X32565 GE Oven 18 Gauge Lead Wire
691	GEN WZ04X0217
699	WB01X24096 GE Screw 8-18X
801	WS02X10087 GE Screws 10-32 GX HXW 7/16 S
802	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
809	WB1X1137 GE Oven Screw
813	WB01X24092 GE Oven Screw 8-18
938	WB1K5209 GE Oven Clip
964	WB02T10086 GE Retainer Wire
997	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
999	PM OWNERS MANUAL
