JP3536SJ2SS CONTROL PANEL & COOKTOP

JP3536SJ2SS CONTROL PANEL & COOKTOP

Written by

in

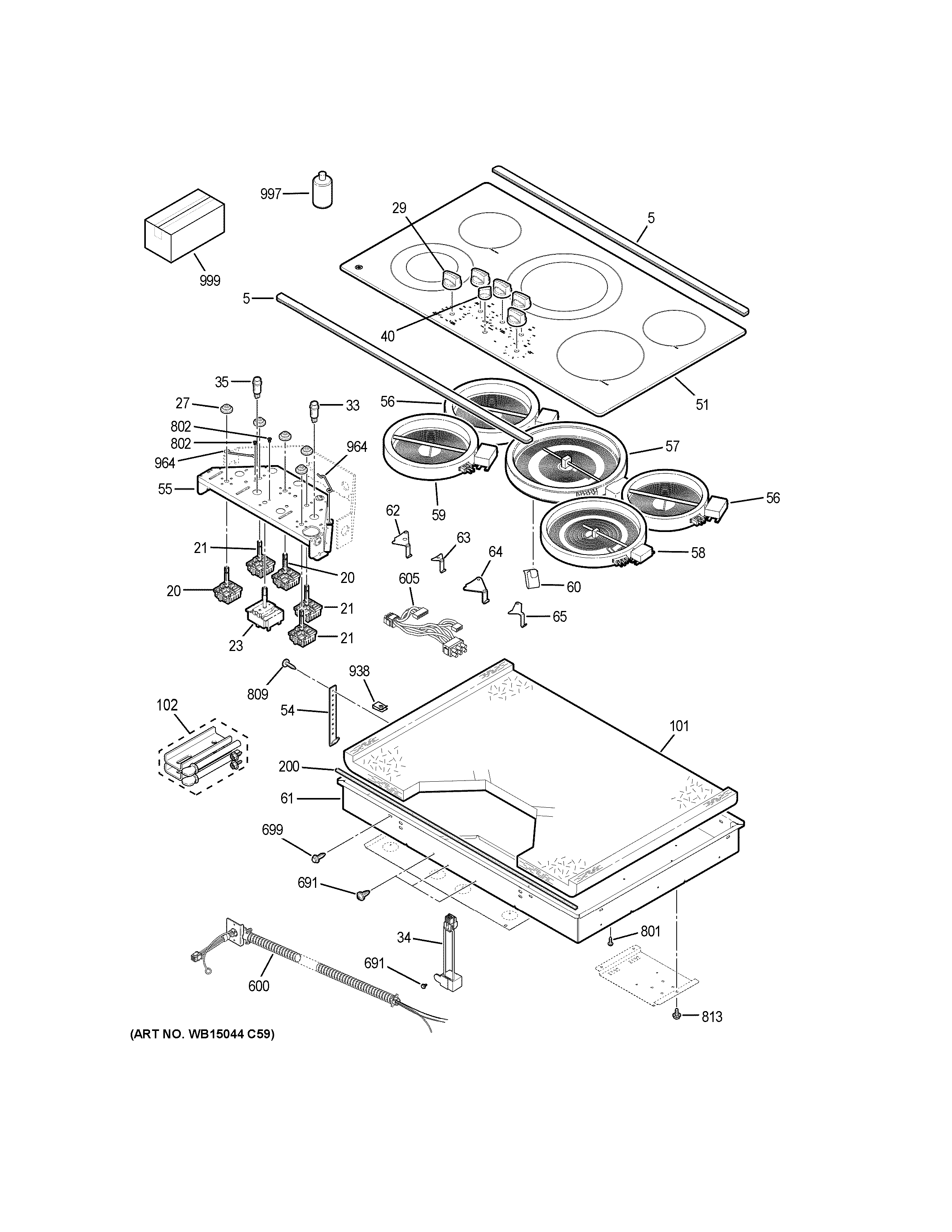

JP3536SJ2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
5TRIM SS
20INFINITE SWITCH AND SEAL KIT
21INFINTE SWITCH / SEAL KIT
23WB24X24106 GE Oven Lockout Switch
27INFINITE CONTROL SEAL
29WB03X29631 GE Oven Stainless Steel Knob
33WB25T10012 GE Oven Indicator Light
34WB18X24105 GE Oven Buzzer
35WB25X24131 GE Oven Lockout Indicator Light
40WB03X29624 GE Selector Knob Stainless Steel
51WB62X43030 GE Cooktop Glass and Frame
54WB2K5328 GE Oven Hold Down Bracket
55WB02X24187 GE Inf Switch Bracket
56WB30T10145 GE Oven Radiant Surface Element
57WB30T10151 GE Oven Halogen Element
58WB30T10136 GE Oven 8" Halogen Element
59WB30T10135 GE Oven Dual Halogen Element
60WB09X40389 GE Radiant Element Spring
61BOTTOM BURN BOX
62WB02X24199 GE Radiant Element Bracket
63WB02X24195 GE Oven Radiant Element Bracket
64BRACKET RADIANT ELEMENT
65WB02X20902 GE Range Radiant Element Bracket
101WB35X24172 GE Insulation
102WB01X24570 GE Oven Installation Kit
200WB02X26088 GE Oven Foam Tape
600CONDUIT WIRE ASM
605WB18X32544 GE Power Wire Harness
605WB18X32519 GE Oven Main Left Wire Harness
605WB18X32532 GE Oven Main Wire Harness
605WB18X32565 GE Oven 18 Gauge Lead Wire
691GEN WZ04X0217
699WB01X24096 GE Screw 8-18X
801WS02X10087 GE Screws 10-32 GX HXW 7/16 S
802WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
809WB1X1137 GE Oven Screw
813WB01X24092 GE Oven Screw 8-18
938WB1K5209 GE Oven Clip
964WB02T10086 GE Retainer Wire
997PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM MANUAL MINI & WD ASM
