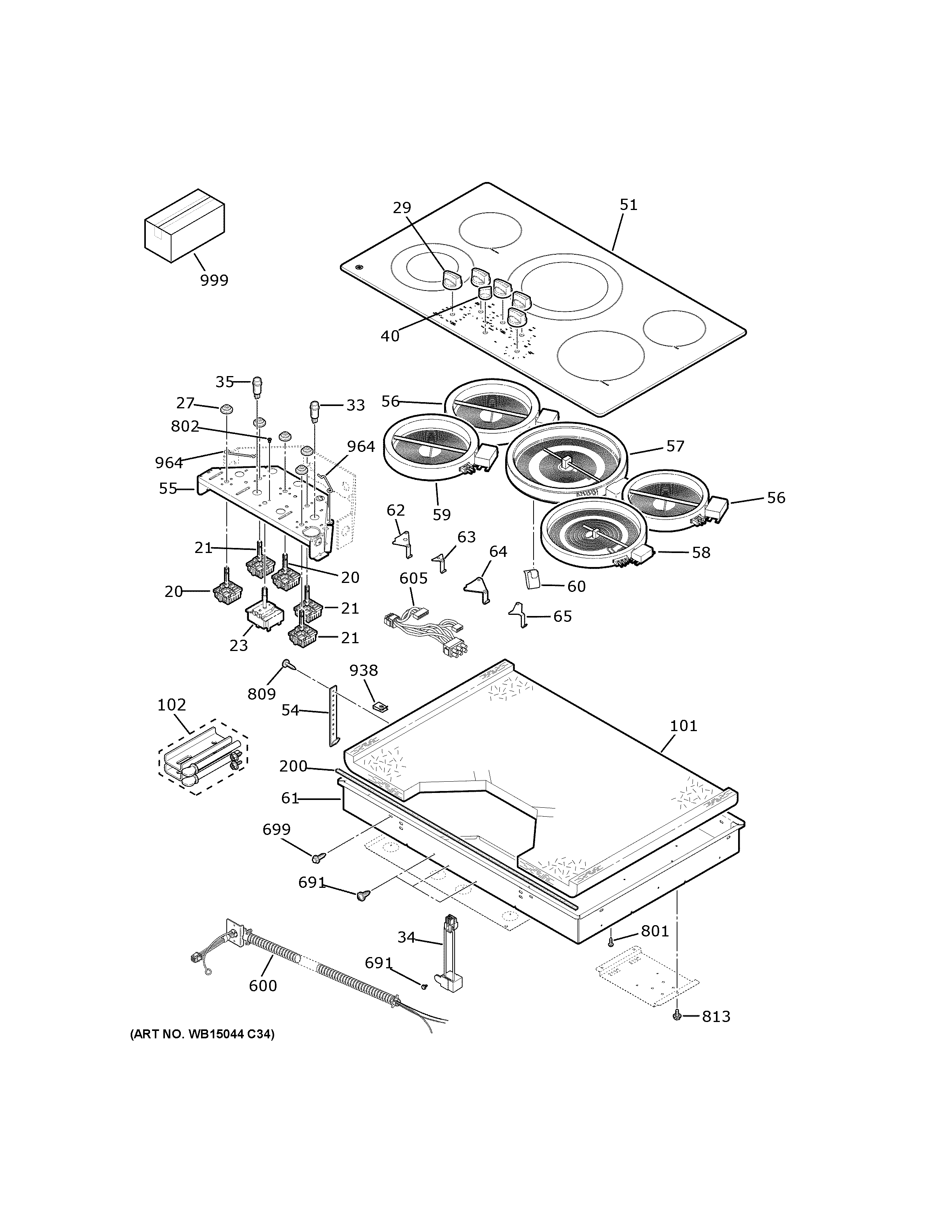

JP3536TJ1WW CONTROL PANEL & COOKTOPadmin2025-04-26T11:58:19+00:00JP3536TJ1WW CONTROL PANEL & COOKTOP ProductsPositionProduct20INFINITE SWITCH AND SEAL KIT21INFINTE SWITCH / SEAL KIT23WB24X24106 GE Oven Lockout Switch27INFINITE CONTROL SEAL29WB03X24102 GE Knob - White33WB25T10012 GE Oven Indicator Light34WB18X24105 GE Oven Buzzer35WB25X24131 GE Oven Lockout Indicator Light40WB03T10318 GE Oven Selector Knob (White)51WB62X43028 GE Cooktop Glass and Frame54WB2K5328 GE Oven Hold Down Bracket55WB02X24187 GE Inf Switch Bracket56WB30T10145 GE Oven Radiant Surface Element57WB30T10151 GE Oven Halogen Element58WB30T10136 GE Oven 8" Halogen Element59WB30T10135 GE Oven Dual Halogen Element60WB09X40389 GE Radiant Element Spring61BOTTOM BURN BOX62WB02X24199 GE Radiant Element Bracket63WB02X24195 GE Oven Radiant Element Bracket64BRACKET RADIANT ELEMENT65WB02X20902 GE Range Radiant Element Bracket101WB35X24172 GE Insulation102WB01X24570 GE Oven Installation Kit200WB02X26088 GE Oven Foam Tape600CONDUIT WIRE ASM605WB18X32565 GE Oven 18 Gauge Lead Wire605WB18X32544 GE Power Wire Harness605WB18X32519 GE Oven Main Left Wire Harness605WB18X32532 GE Oven Main Wire Harness691GEN WZ04X0217699WB01X24096 GE Screw 8-18X801WS02X10087 GE Screws 10-32 GX HXW 7/16 S802WB01X23501 GE Oven Screw 8-32 Tapping Flat Head809WB1X1137 GE Oven Screw813WB01X24092 GE Oven Screw 8-18938WB1K5209 GE Oven Clip964WB02T10086 GE Retainer Wire999PM OWNERS MANUAL999PM INSTALL INSTRUCTIONS999PM MANUAL MINI & WD ASM999PM10X310 GE Cerama Bryte Cooktop Cleaner
