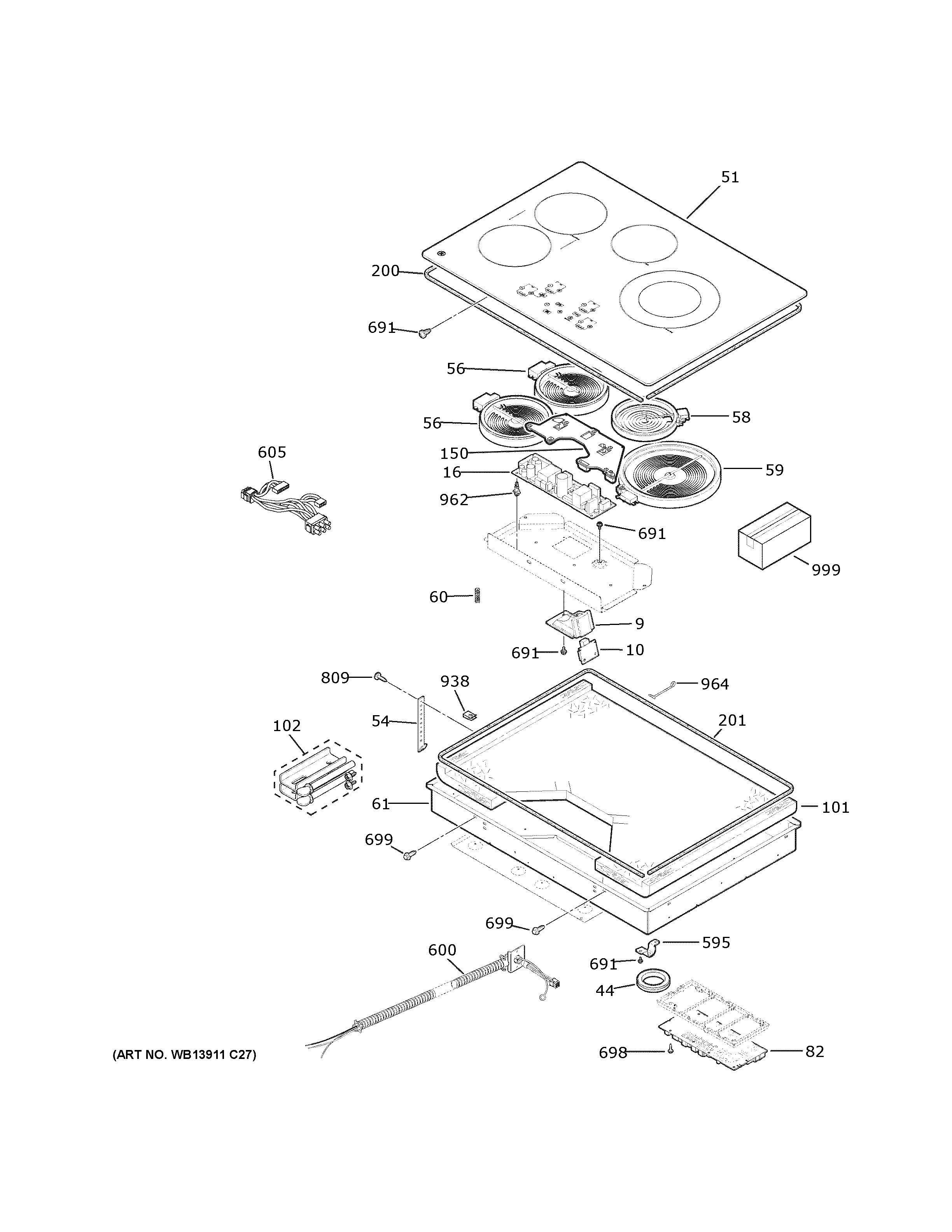

JP5030DJ1BB CONTROL PANEL & COOKTOP

Products

Position	Product
9	WB27X20933 GE Oven RJ45 Housing Assembly
10	WB27X24119 GE Oven RJ45 Connector Board
16	WB27X24011 GE Oven Power Supply Board
44	WB02T10092 GE Burner Box Grommet
51	WB62X26842 GE Oven Maintop and UI Assembly
54	WB2K5328 GE Oven Hold Down Bracket
56	WB30T10129 GE Oven Radiant Element 6 In
58	WB30T10145 GE Oven Radiant Surface Element
59	WB30X24111 GE Oven Dual Radiant Element
60	WB09X40389 GE Radiant Element Spring
61	WB63X24120 GE Bottom Burner Box
82	WB27X24010 GE Oven Machine Control Relay Board
101	WB35X24123 GE Insulation
102	WB01X24570 GE Oven Installation Kit
150	WB27X24230 GE Oven Guide Light Assembly
200	WB35X24125 GE Oven Insulation Foam Tape
201	WB02X26088 GE Oven Foam Tape
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32527 GE Conduit Wire Assembly
605	WB18X31000 GE LT Main Harness
605	WB18X32548 GE Main Wire Harness
605	WB18X31018 GE Power Harness Wire
605	WB18X32542 GE Control Wire Harness
605	WB18X32517 GE Logic Wire Harness
605	WB18X32522 GE Power Wire Harness
691	WB01X24092 GE Oven Screw 8-18
698	WZ4X416 GE WZ04X0408
699	WB01X24096 GE Screw 8-18X
809	WB1X1137 GE Oven Screw
938	WB1K5209 GE Oven Clip
962	WB02T10477 GE Standoff PCB
964	WB02T10086 GE Retainer Wire
999	PM INSTALL INSTRUCTIONS
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	PM MANUAL MINI & WD ASM
999	PM OWNERS MANUAL
