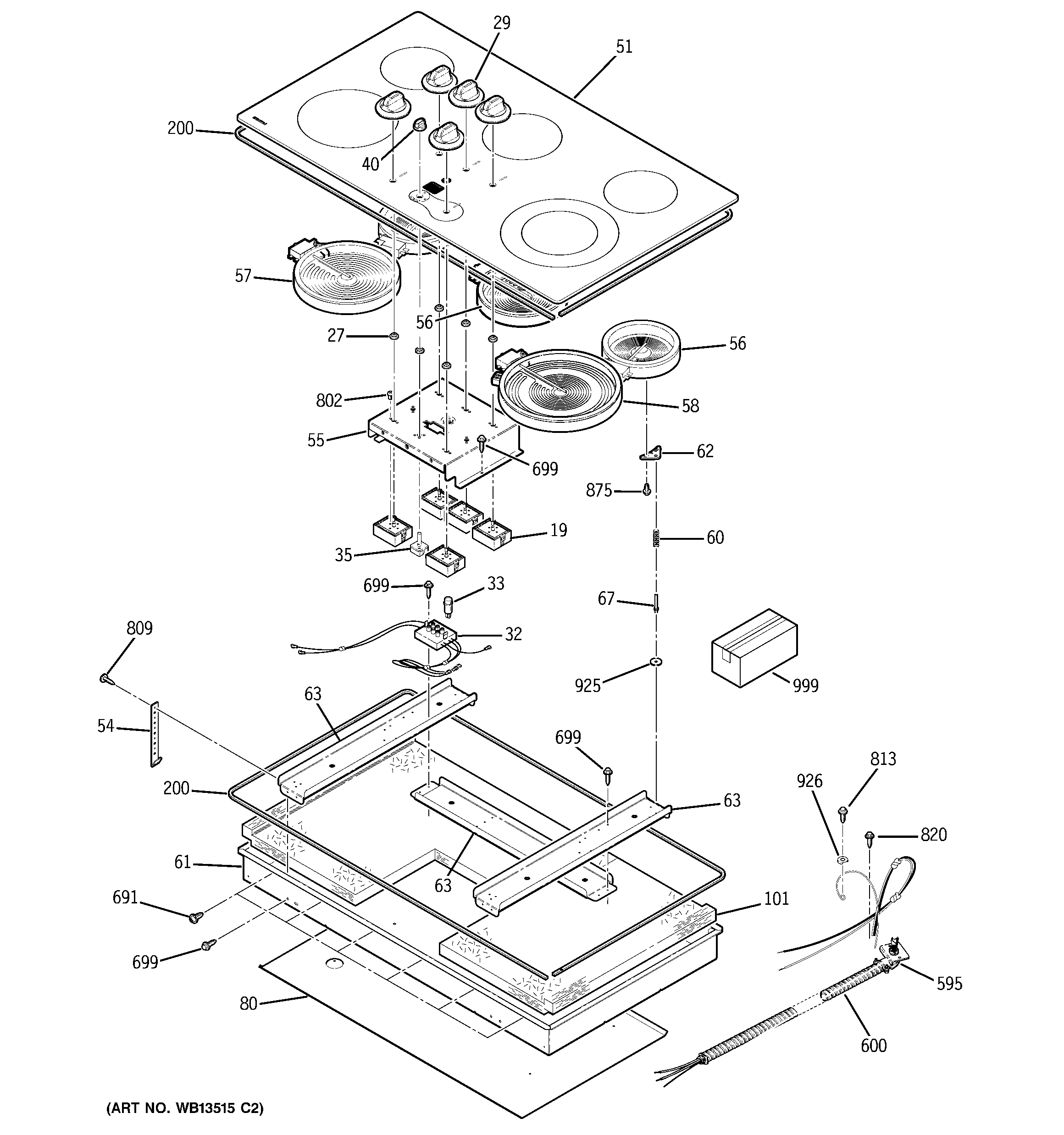

JP655SM1SS COOKTOP PARTS

Products

Position	Product
19	SWITCH INFINITE CONTROL
27	INFINITE CONTROL SEAL
29	WB03T10271 GE Oven Knob
32	GEN WB25T10017
33	WB25T10012 GE Oven Indicator Light
35	GEN WB24T10115
40	WB03T10272 GE Oven Knob
51	GEN WB62T10562
54	WB2K5328 GE Oven Hold Down Bracket
55	BRACKET INF SWITCH (36")
56	WB30T10043 GE Oven 6" 1200W Halogen Element
56	WB30X44826 GE 6 Inch Heating Element Kit
57	WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
58	WB30T10099 GE Oven Radiant Surface Element
60	WB09T10005 GE Oven Spring Radiant
61	WB64T10044 GE Burn Box Bottom
62	WB2K5318 GE Oven Radiant Heater Bracket
63	WB02T10602 GE Element Support Bracket
63	WB02T10330 GE Element Support Bracket
67	WB2X9502 GE Oven Stud
80	WB34T10104 GE Burn Box Bottom Shield
101	GEN WB35T10045
200	WB02X26088 GE Oven Foam Tape
200	WB06T10007 GE Oven Cooktop Tape
595	WB2X9867 GE Oven Condenser Plate
600	WB18T10374 GE Wire Conduit Assembly
691	WB1K5162 GE Oven Black Screw
699	WB1M1 GE Oven Screw
802	GEN WB01K5123
809	WB1X1137 GE Oven Screw
813	WB1X1261 GE Oven Screw
875	WH2X930 GE Screw
925	WB1K5117 GE Oven Washer
926	GROUND WASHER
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 31-10419
999	GEN 31-10636
999	GEN 49-80411
999	GEN 31-13578
