JP6801L1 30″ ELECTRIC COUNTER UNIT – Aparts

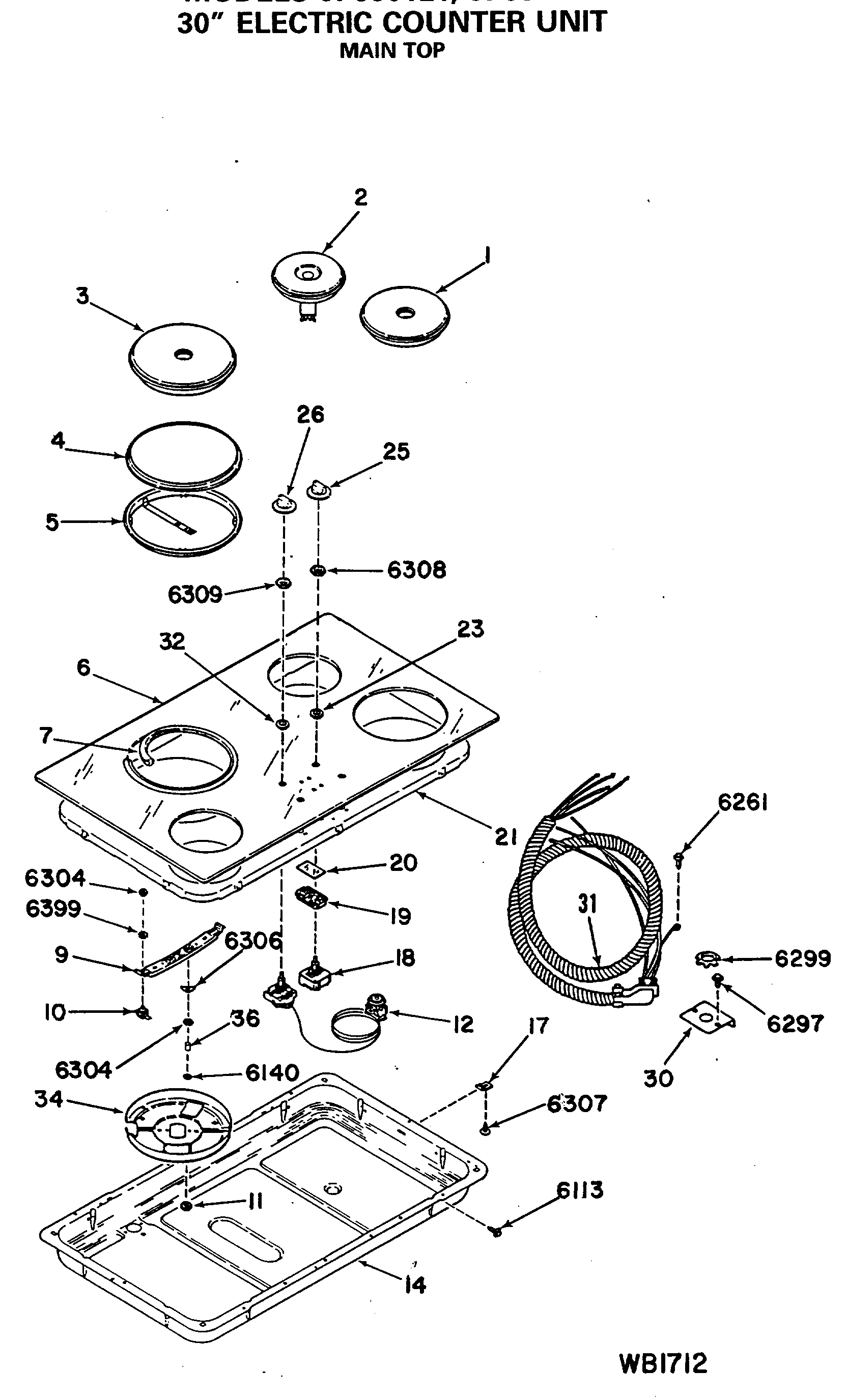

JP6801L1 30″ ELECTRIC COUNTER UNIT

Products

Position	Product
1	GEN WB30X0264
2	HOB ELEMENT 6"
3	HOB ELEMENT 9"
4	GEN WB32X0112
4	GEN WB32X0111
4	GEN WB32X0110
5	GASKET RING 6"
5	GASKET RING 9"
5	GASKET RING 7"
6	GEN WB62X1710
7	RING GASKET 9" BLK
7	RING GASKET 7" BLK
7	RING GASKET 6" BLK
9	ELEMENT CLAMP 7"
9	ELEMENT CLAMP 6"
9	ELEMENT CLAMP 9"
10	GEN WB21X0498
12	GEN WB21X0499
14	GEN WB63X0425
17	GEN WB02X9516
18	GEN WB23M0022
19	GEN WB25X0097
20	GEN WB36X0770
21	GEN WB63X0426
23	GEN WB02X9972
25	GEN WB03X0819
26	GEN WB03X0827
30	WB2X9867 GE Oven Condenser Plate
31	CONDUIT/HARNESS ASSEMBLY
32	GEN WB02X9518
34	HOB ELEMENT CLAMP 6"
34	GEN WB02X9873
34	HOB ELEMENT CLAMP 9"
36	GEN WB02X9872
6113	GEN WB01X1113
6140	GEN WB01X1140
6261	WB1X1261 GE Oven Screw
6299	NUT
6304	M4 NUT
6304	"M6" PW NUT
6306	GEN WB01X1306
6307	GEN WB01X1307
6308	GEN WB01X1308
6309	M16 HEX NUT
6399	GEN WB01X1399
