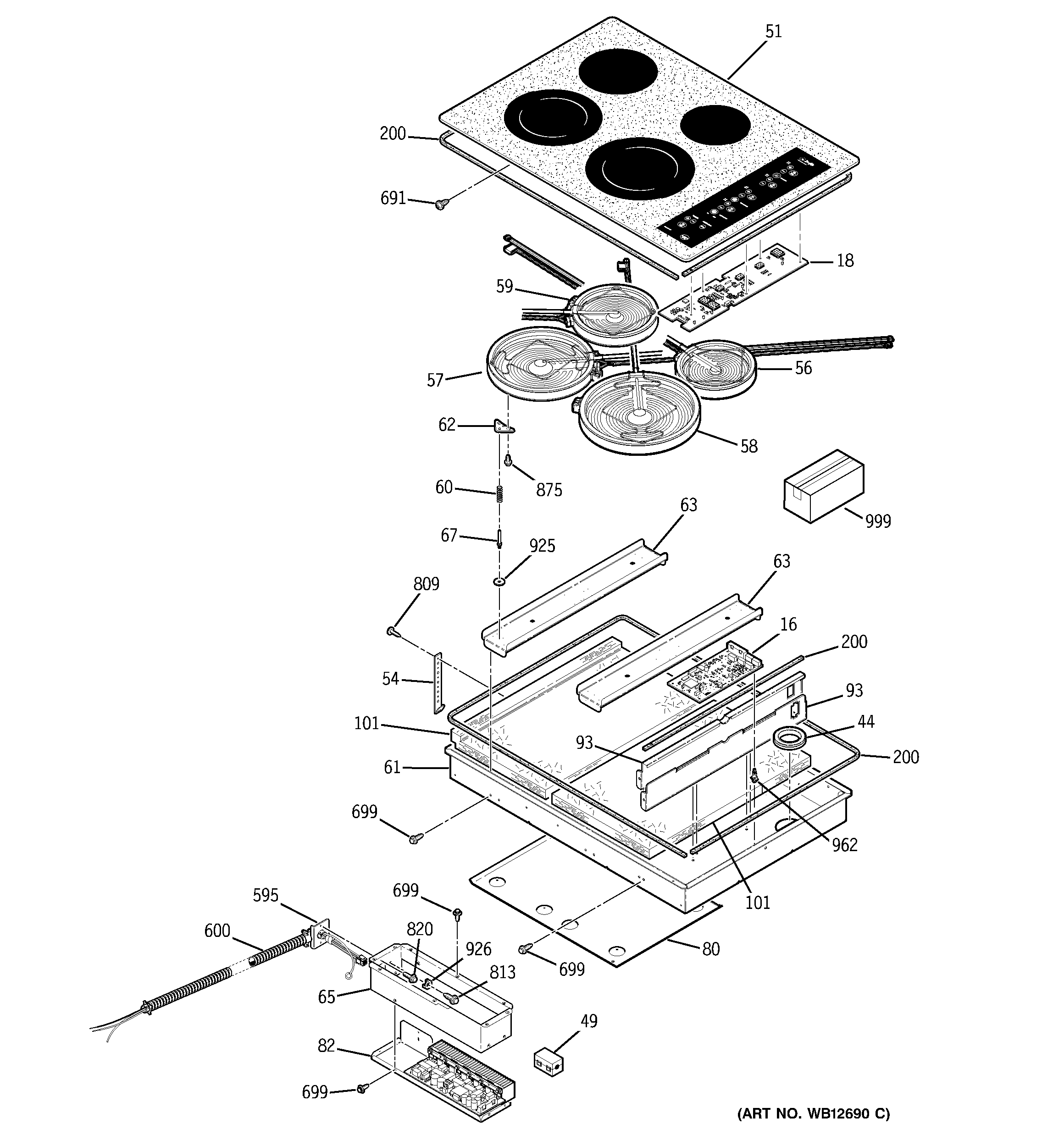

JP950BK1BB CONTROL PANEL & COOKTOP

JP950BK1BB CONTROL PANEL & COOKTOP

Written by

in

JP950BK1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
16WB27X33352 GE Oven Main Board Logic Kit
18WB29T10017 GE Oven Display Board Assembly
44WB02T10092 GE Burner Box Grommet
49GEN WB02T10179
51GEN WB62T10405
54WB2K5328 GE Oven Hold Down Bracket
56RADIANT ELEMENT RT RR
57GEN WB30T10080
58RADIANT ELEMENT RT FRT
59GEN WB30T10081
60WB09T10005 GE Oven Spring Radiant
61GEN WB64T10042
62WB2K5318 GE Oven Radiant Heater Bracket
63SUPT ELEMENT BRACKET
65GEN WB34T10030
67WB2X9502 GE Oven Stud
80GEN WB34T10100
82GEN WB23T10014
93THERMAL BARRIER INNER
93THERMAL BARRIER OUTER
101GEN WB35T10059
101GEN WB35T10058
200WB06T10008 GE Oven Insulation Foam Tape
200WB06T10007 GE Oven Cooktop Tape
595WB2X9867 GE Oven Condenser Plate
600WIRE CONDUIT ASM
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
820WB1X1424D GE Oven Screw Package
875WH2X930 GE Screw
925WB1K5117 GE Oven Washer
926GROUND WASHER
962WB02T10093 GE Oven Standoff Printed Circuit Board
999WB18T10166 GE Oven Logic Display Board
999WB18T10162 GE Power Control Board
999GEN 31-10603
999GEN WB18T10164
999GEN 49-80278
999GEN 31-14297
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999WB18T10216 GE Oven Control/Heater Harness
