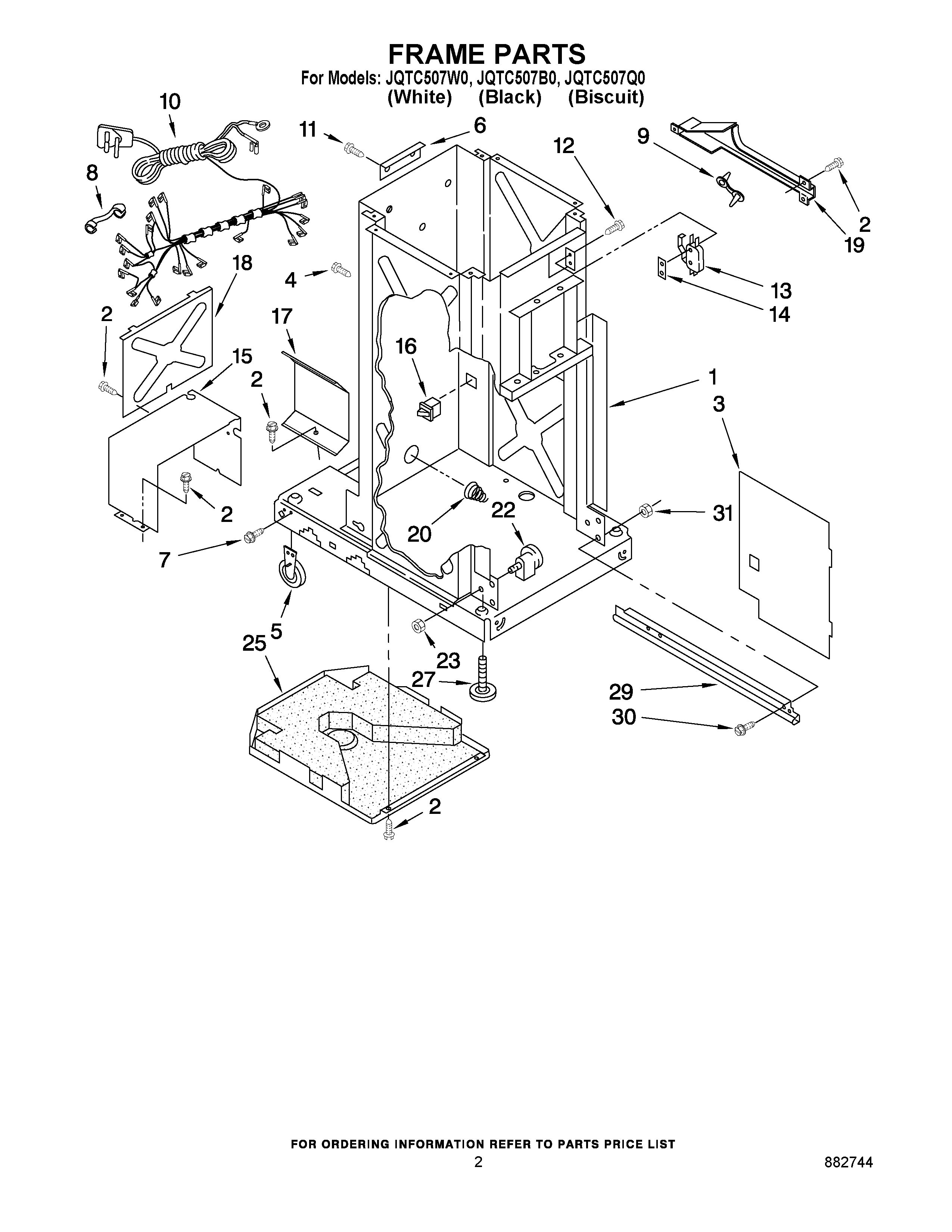

JQTC507B0 02 – FRAME PARTSadmin2025-04-26T09:07:57+00:00JQTC507B0 02 – FRAME PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 3 | MAY 9870444 |
| 4 | MAY 777070 |
| 5 | Wheel Leveler |
| 6 | MAY 775668 |
| 7 | Screw, 10-24 x 3/8 |
| 8 | Bushing, Power Cord |
| 9 | MAY 777035 |
| 10 | CORD, POWER |
| 11 | MAY 489478 |
| 12 | Screw, 6-20 x 1`` |
| 13 | MAY 777811 |
| 14 | Nut, Plate |
| 15 | MAY 780434 |
| 16 | MAY 4149377 |
| 17 | Shield, Slide Track |
| 18 | MAY 608009 |
| 19 | MAY 4149659 |
| 20 | MAY 777180 |
| 22 | Bearing, Roller |
| 23 | Locknut, 3/8-24 |
| 25 | PAN-BOTTOM |
| 27 | Foot, Leveler |
| 29 | Slide, Frame (R.H.) |
| 29 | Slide, Frame (L.H.) |
| 30 | Screw, 6-32 x 3/8 |
| 31 | NUT, 6-32 |
